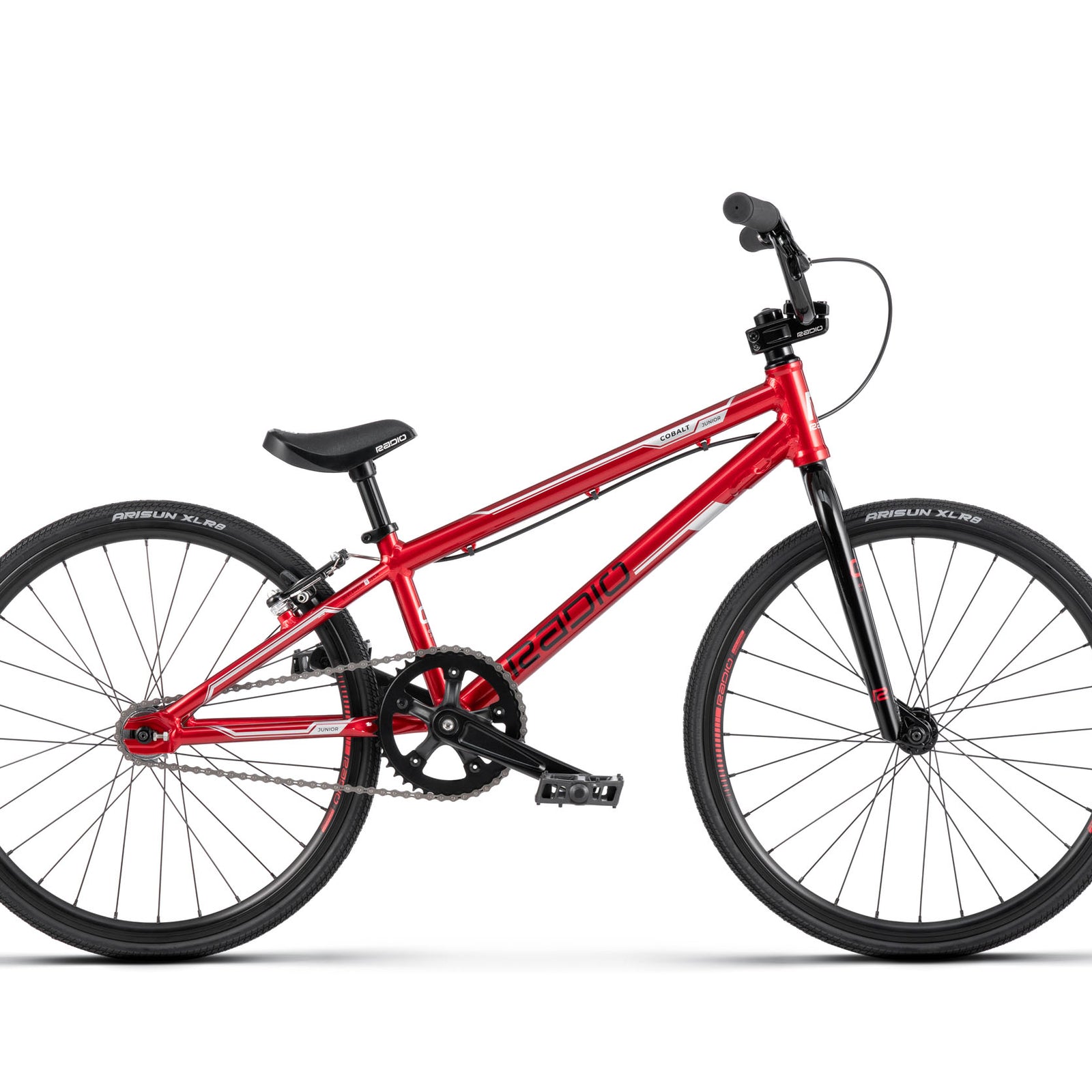

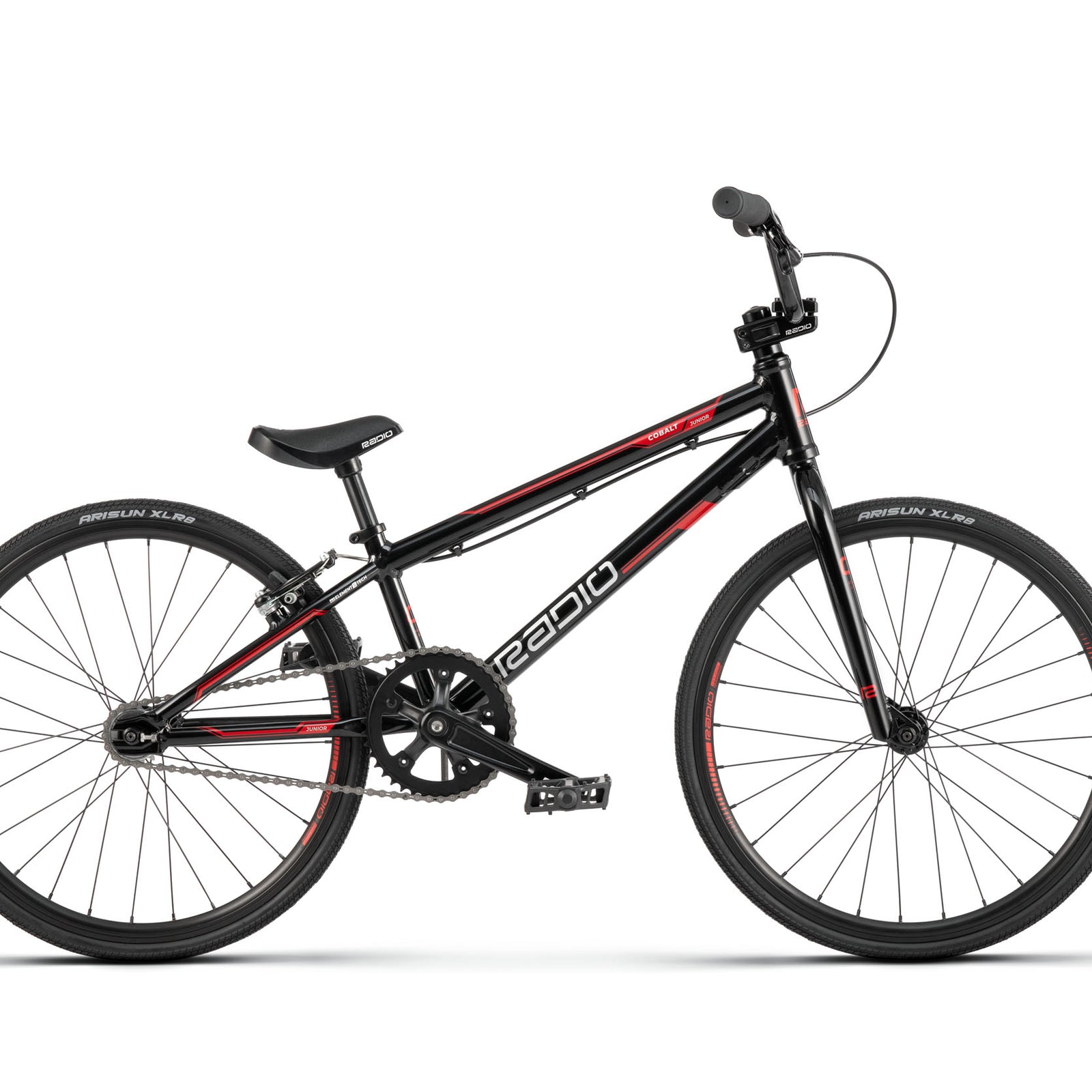

Radio Race COBALT JUNIOR Complete Bike 18.5"TT
£311.95
Click image to zoom
- FRAME: 6061-T6 alloy frame, forged dropouts with int. chaintensioner

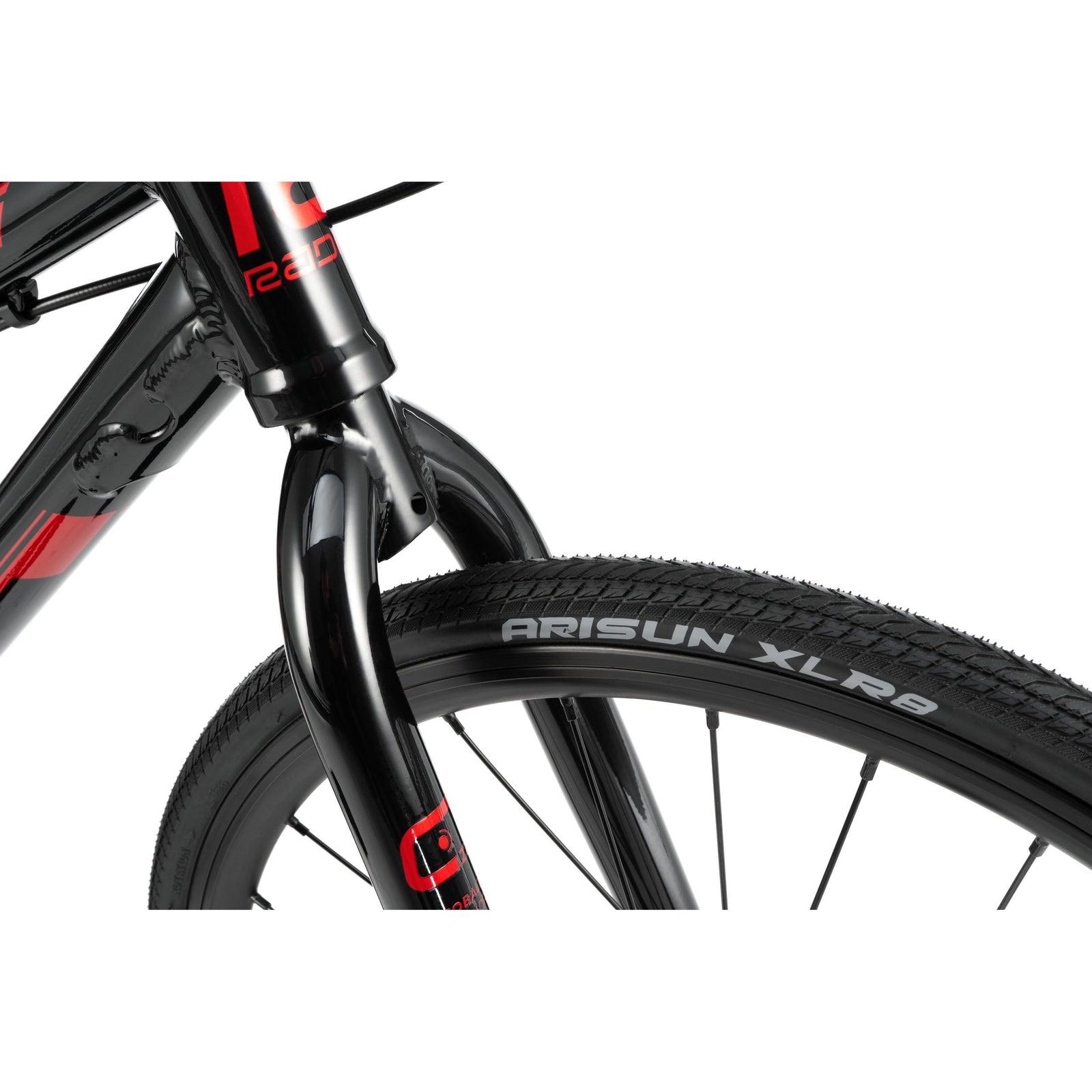

- FORK: crmo fork, 1" butted steerer, hi-ten fork legs, 23mm offset
- HANDLEBAR: 4130 crmo bar, seamless
- GRIPS: RADIO RACELINE "COBALT" grips, diamond knurling, closed end, flangeless, 130mm length

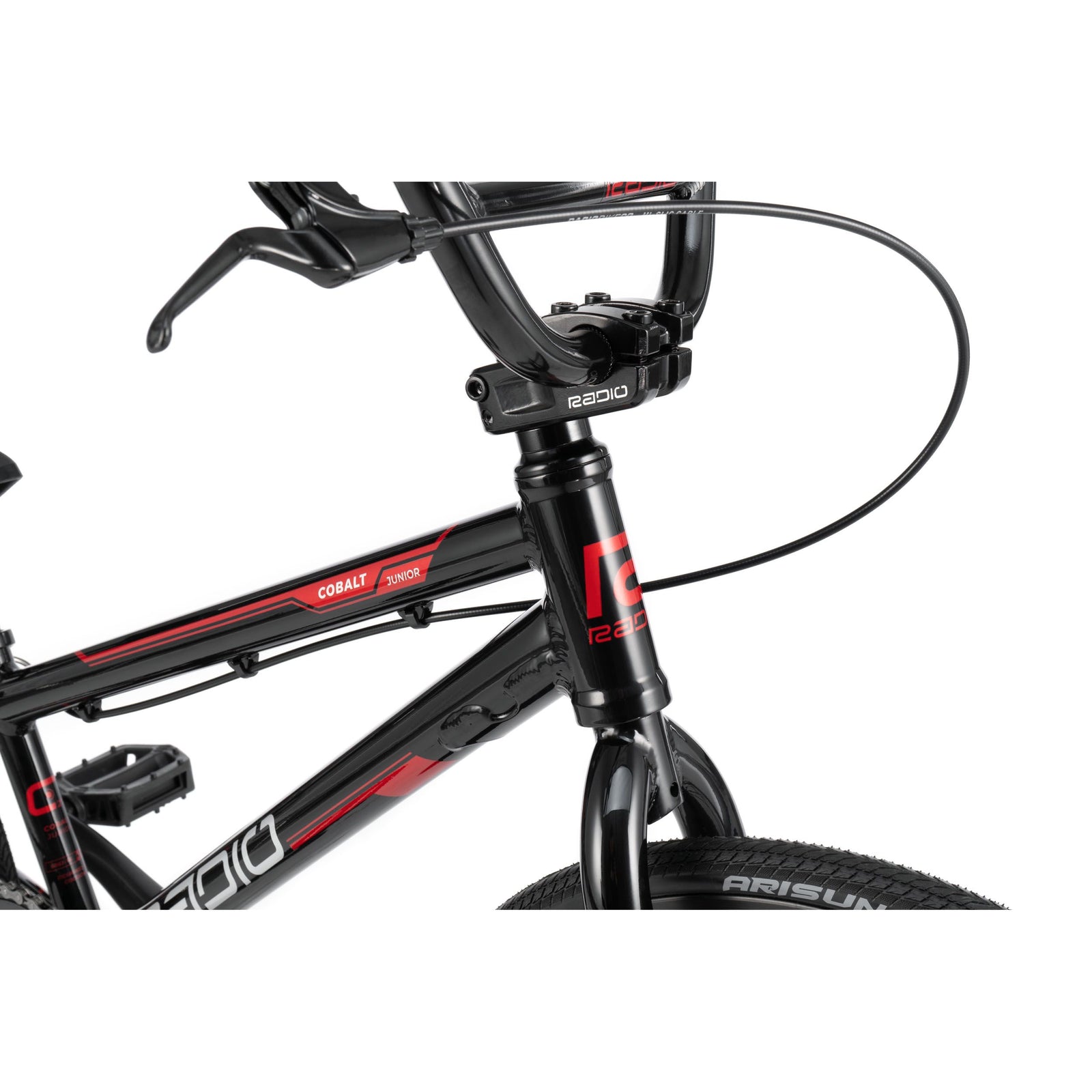

- STEM: RADIO RACELINE "COBALT" toploader stem, ext. 40mm, alloy
- HEADSET: RADIO RACELINE integrated headset, sealed, 1"
- BRAKE LEVER: PROMAX "XL-378" brake lever, rear
- BRAKE: PROMAX "MV-87" brake, rear

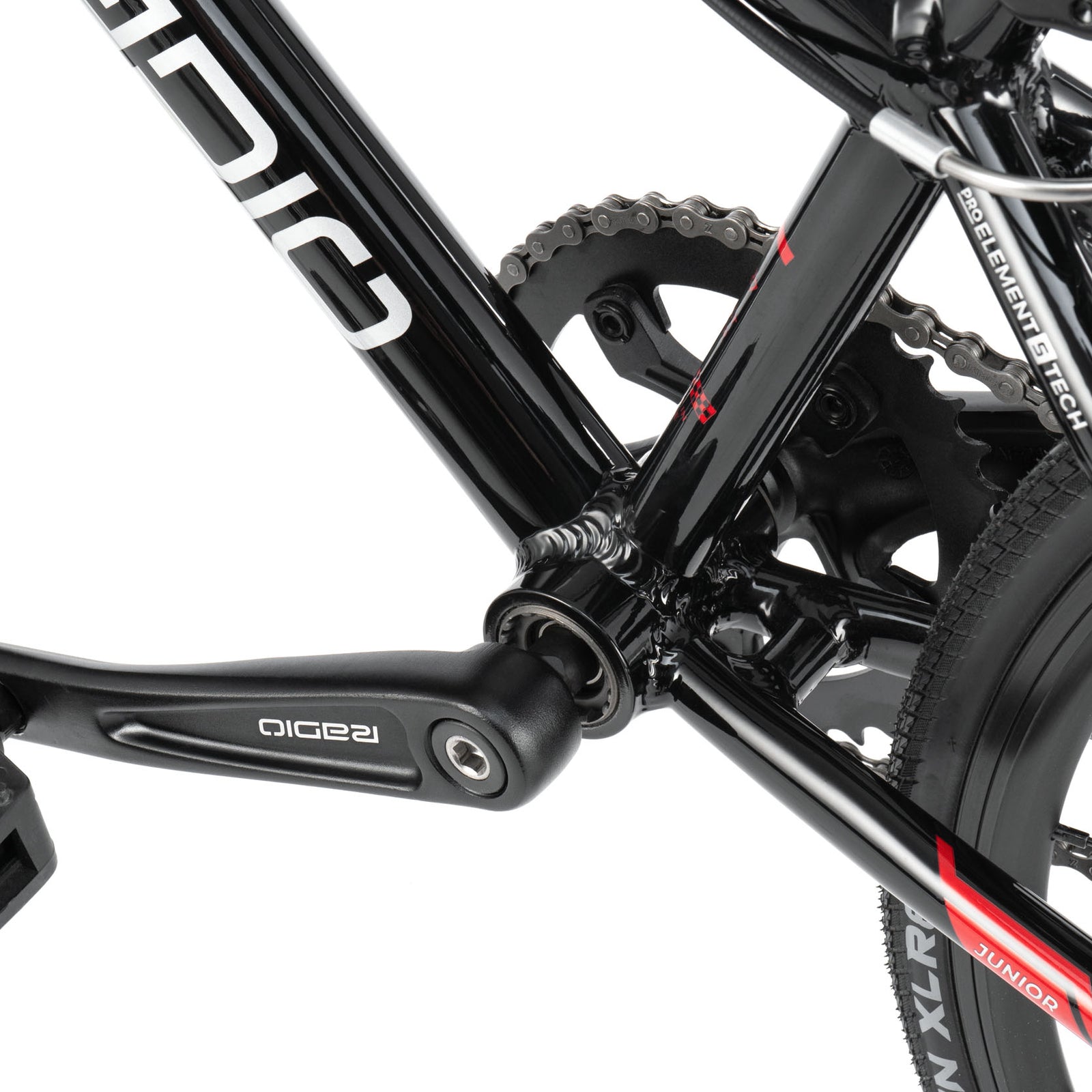

- CRANK: RADIO RACELINE "COBALT" 3pc crank, forged alloy, 155mm length
- BB: RADIO RACELINE BB set, BSA square taper, sealed
- PEDALS: RADIO RACELINE "COBALT JUNIOR" pedal, nylon
- CHAIN: KMC "Z6" chain, 1/2" x 3/32"
- SPROCKET: RADIO RACELINE sprocket, 40T, alloy
- DRIVER: ATA freewheel, 16T, 1/2" x 3/32", crmo
- FRONT HUB: RADIO RACELINE "COBALT" front hub, alloy cnc, fully sealed, 28h, 3/8" crmo axle

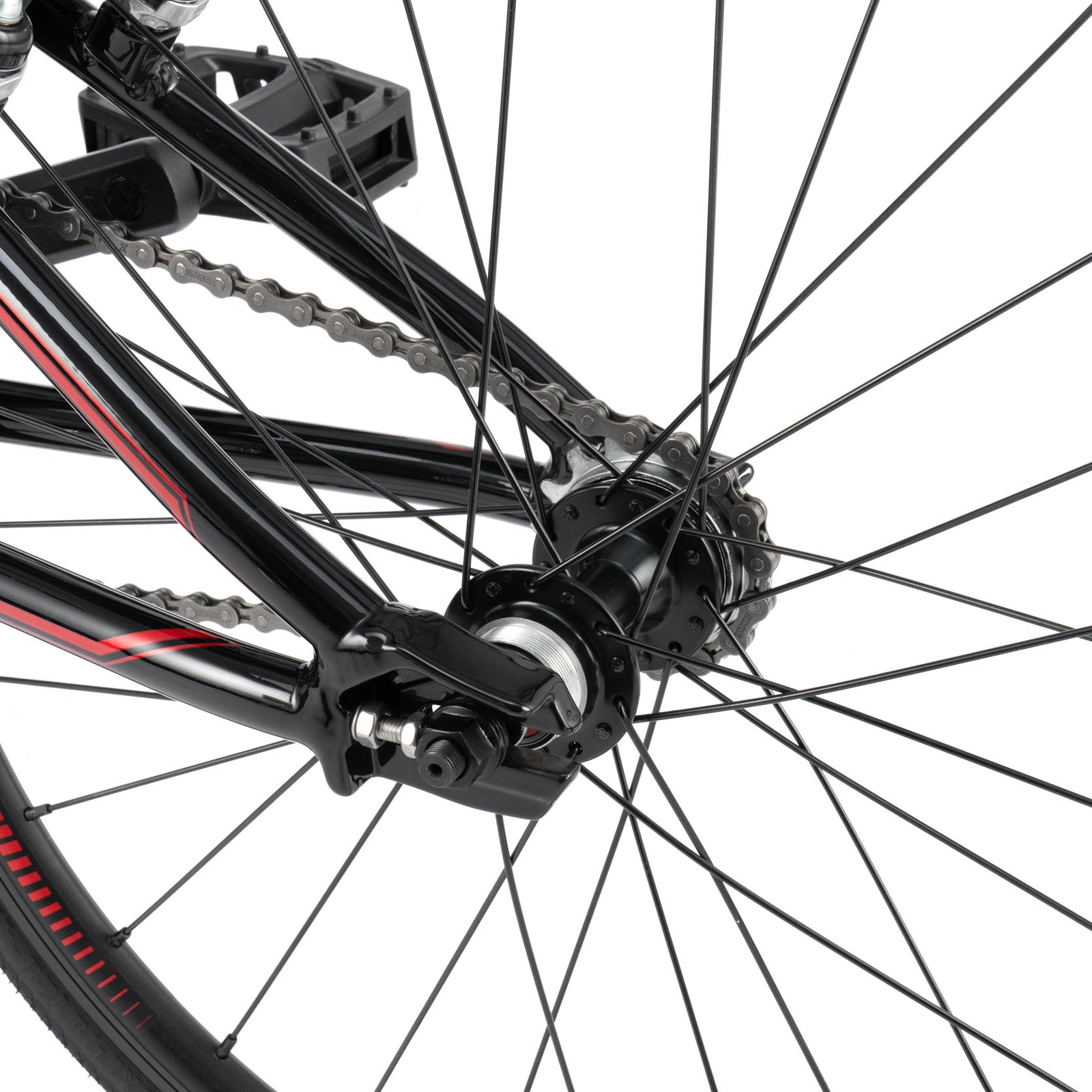

- REAR HUB: RADIO RACELINE "COBALT" front hub, alloy cnc, fully sealed, 28h, 3/8" crmo axle
- FRONT RIM: RADIO RACELINE "A-M5" rim, double wall, 28h, alloy
- REAR RIM: RADIO RACELINE "A-M5" rim, double wall, 28h, alloy

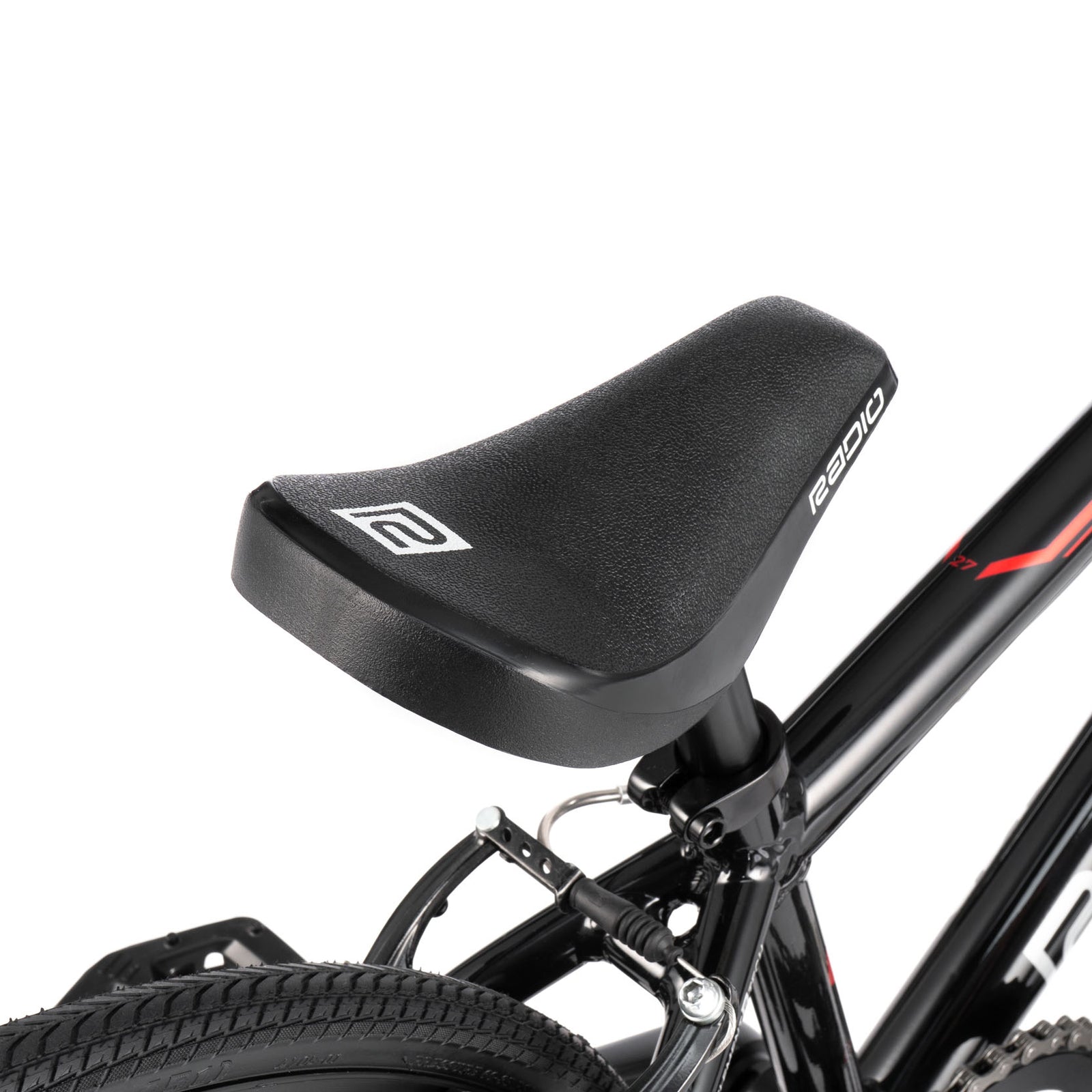

- SEAT: RADIO RACELINE "MINI" combo seat
- SEAT POST: RADIO RACELINE seat post, 22.2mm, alloy
- SEAT CLAMP: RADIO RACELINE seat clamp, forged alloy
- TIRES: ARISUN "XLR8" tires, 20" x 1-1/8"
Weight: 8.07kg / 17.78lbs
Frame Geometry:
| Top Tube Length | 18.5" |
| Chain Stay Length | 12.85" |
| Head Tube Angle | 73° |
| Seat Tube Angle | 71° |
| Bottom Bracket Height | 10.4" |
Handlebar Geometry:
| Rise | 4.25" |
| Width | 24" |
| Backsweep | 8° |
| Upsweep | 2° |
Radio Race COBALT JUNIOR Complete Bike 18.5"TT
Product code:
A100016724
In Stock
£311.95
-
Description
- FRAME: 6061-T6 alloy frame, forged dropouts with int. chaintensioner
- FORK: crmo fork, 1" butted steerer, hi-ten fork legs, 23mm offset
- HANDLEBAR: 4130 crmo bar, seamless
- GRIPS: RADIO RACELINE "COBALT" grips, diamond knurling, closed end, flangeless, 130mm length
- STEM: RADIO RACELINE "COBALT" toploader stem, ext. 40mm, alloy
- HEADSET: RADIO RACELINE integrated headset, sealed, 1"
- BRAKE LEVER: PROMAX "XL-378" brake lever, rear
- BRAKE: PROMAX "MV-87" brake, rear
- CRANK: RADIO RACELINE "COBALT" 3pc crank, forged alloy, 155mm length
- BB: RADIO RACELINE BB set, BSA square taper, sealed
- PEDALS: RADIO RACELINE "COBALT JUNIOR" pedal, nylon
- CHAIN: KMC "Z6" chain, 1/2" x 3/32"
- SPROCKET: RADIO RACELINE sprocket, 40T, alloy
- DRIVER: ATA freewheel, 16T, 1/2" x 3/32", crmo
- FRONT HUB: RADIO RACELINE "COBALT" front hub, alloy cnc, fully sealed, 28h, 3/8" crmo axle
- REAR HUB: RADIO RACELINE "COBALT" front hub, alloy cnc, fully sealed, 28h, 3/8" crmo axle
- FRONT RIM: RADIO RACELINE "A-M5" rim, double wall, 28h, alloy
- REAR RIM: RADIO RACELINE "A-M5" rim, double wall, 28h, alloy
- SEAT: RADIO RACELINE "MINI" combo seat
- SEAT POST: RADIO RACELINE seat post, 22.2mm, alloy
- SEAT CLAMP: RADIO RACELINE seat clamp, forged alloy
- TIRES: ARISUN "XLR8" tires, 20" x 1-1/8"
Weight: 8.07kg / 17.78lbs
Frame Geometry:
Top Tube Length 18.5" Chain Stay Length 12.85" Head Tube Angle 73° Seat Tube Angle 71° Bottom Bracket Height 10.4" Handlebar Geometry:
Rise 4.25" Width 24" Backsweep 8° Upsweep 2°
