SPECS

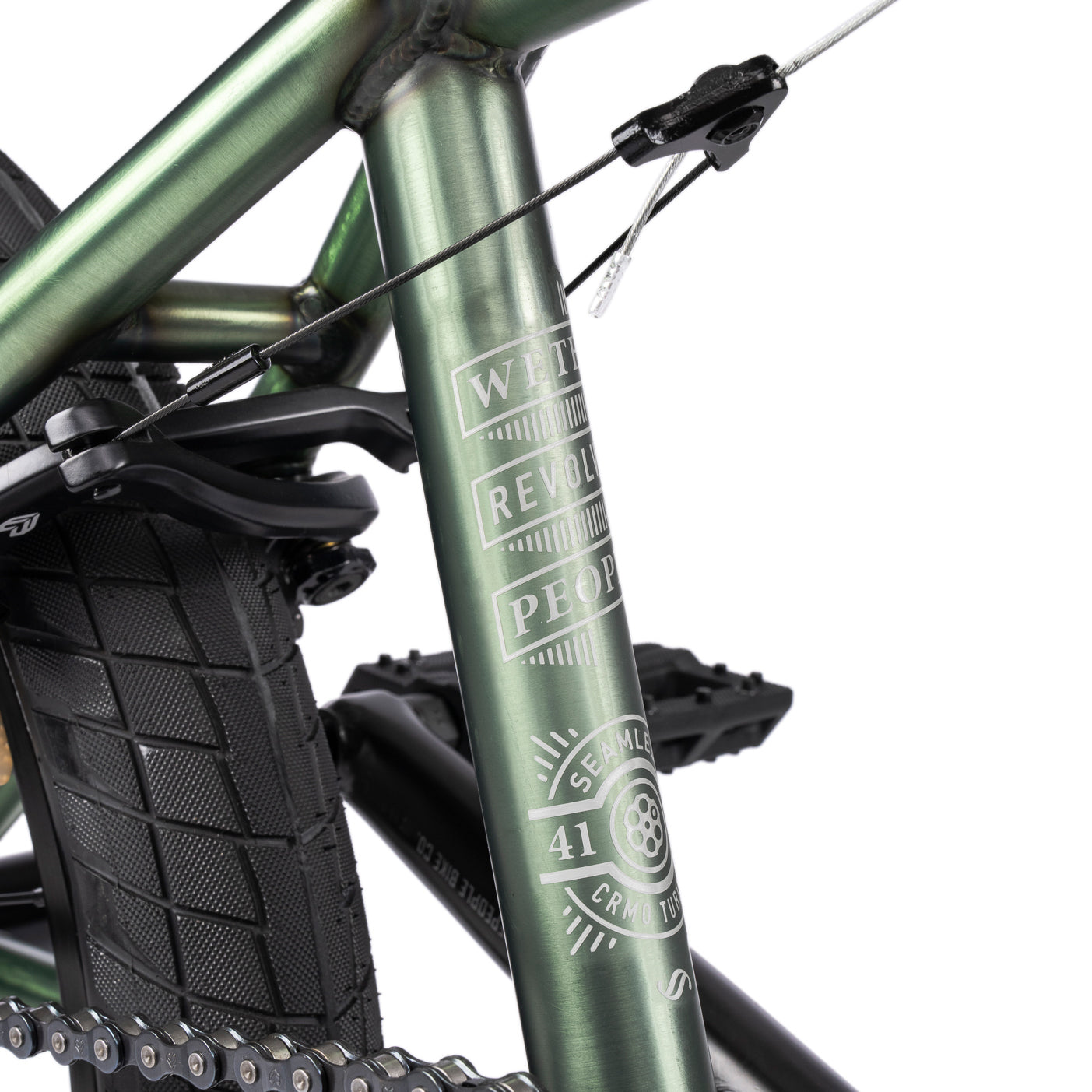

Frame: wethepeople "revolver" frame, 4130 full sanko, invest cast wishbone & 7.5mm dropouts
Fork: éclat "storm" fork, post liquid heat-treated & butted sanko tubing, 30mm offset
Bars: wethepeople "revolver" bar, post liquid heat-treated 4130 crmo

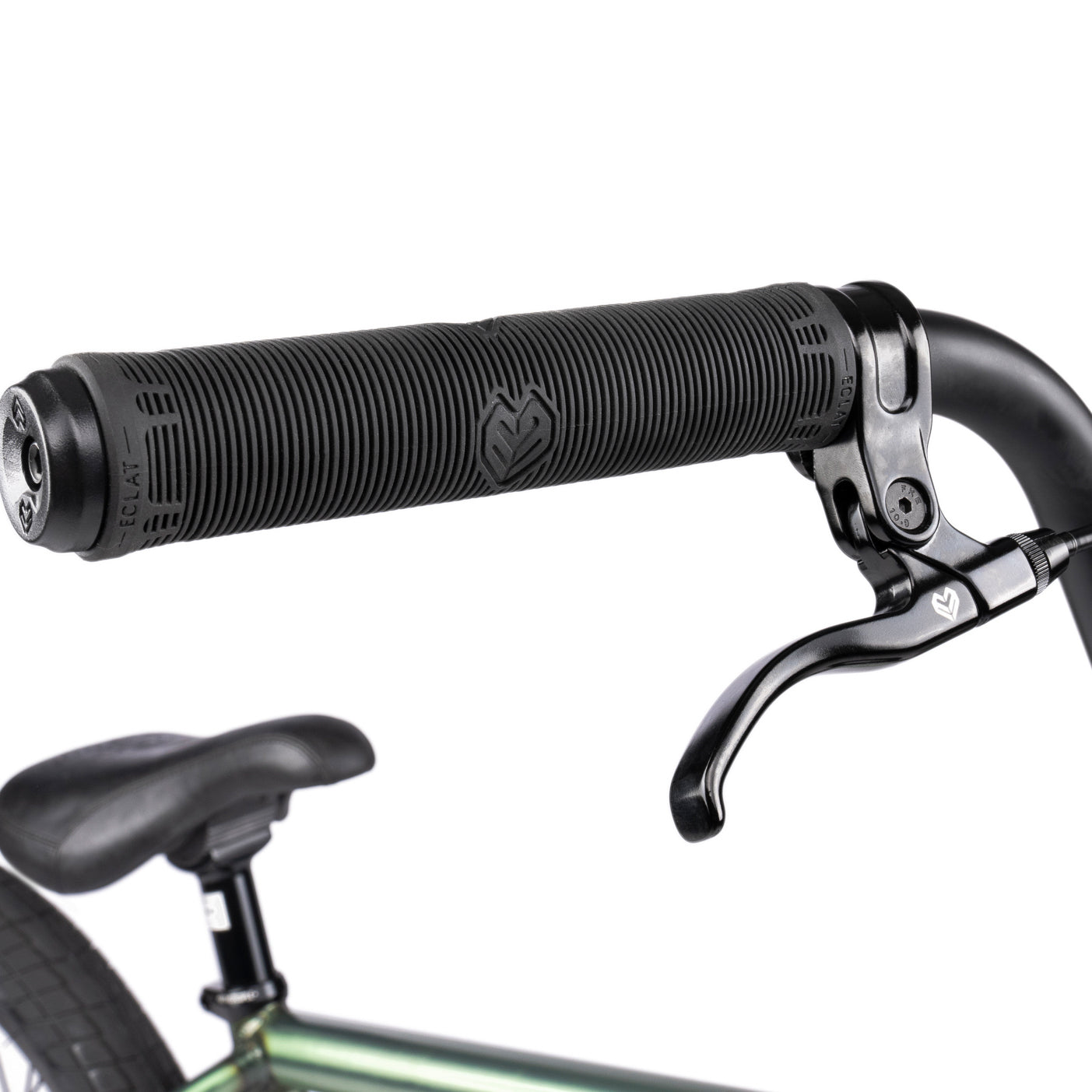

Grips: éclat "filter" grips, flangeless, with éclat "tech-bolt" barends

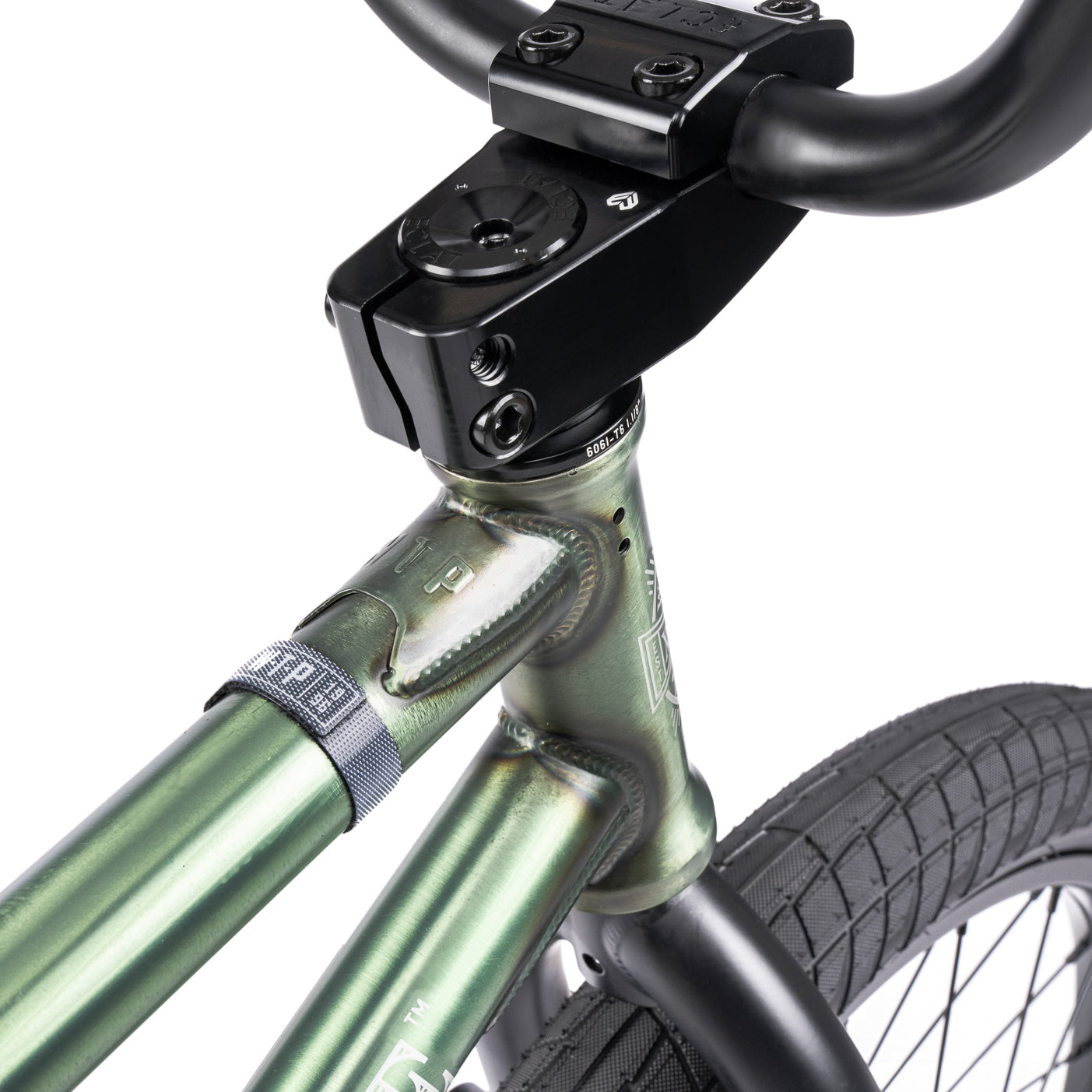

Stem: éclat "metra" topload stem, cnc alloy, 51mm reach, 30mm rise
Headset: éclat "wave 6" int. Headset, sealed bearing

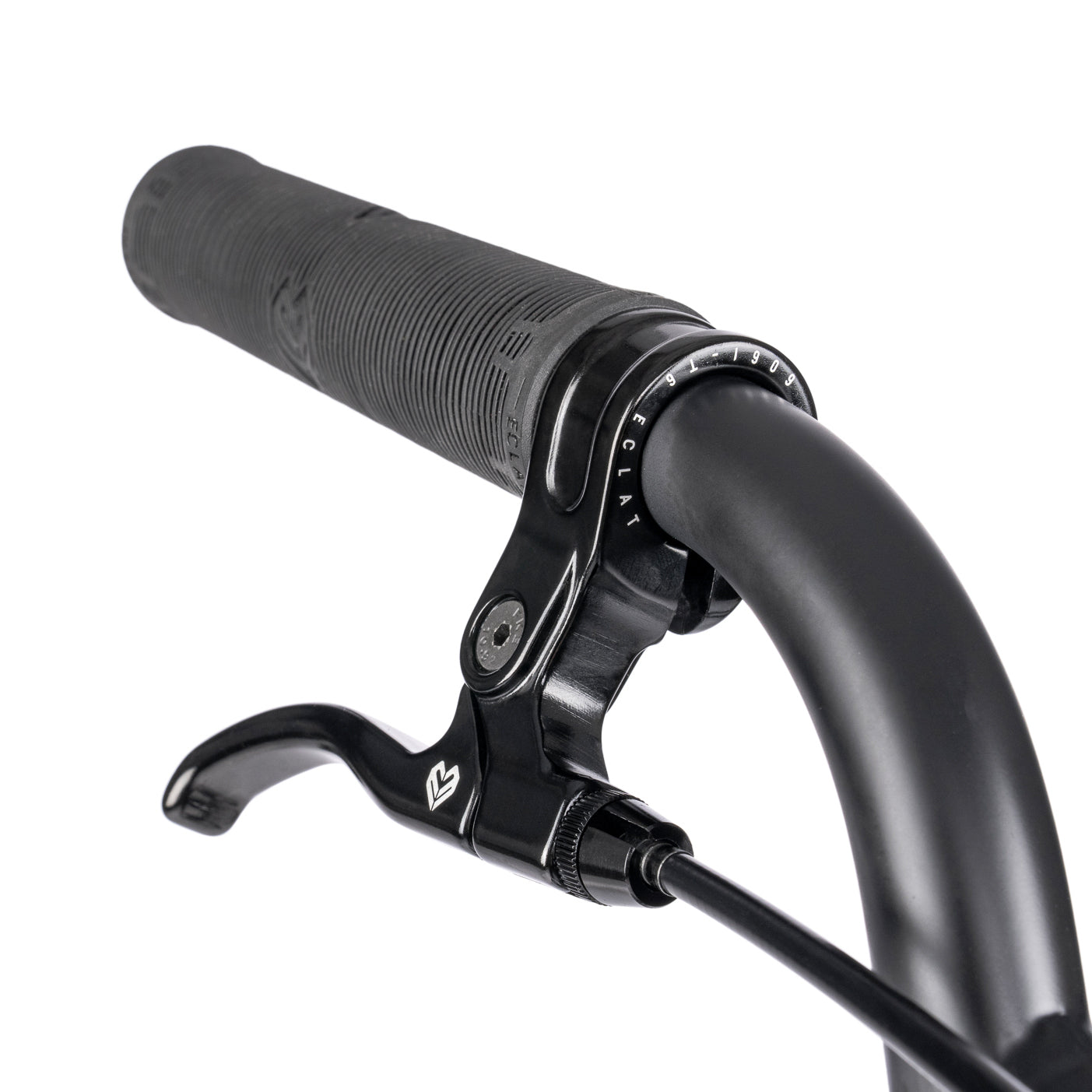

Gyro: holes for removable gyro tabs Lever: salt "moto" brake lever, alloy

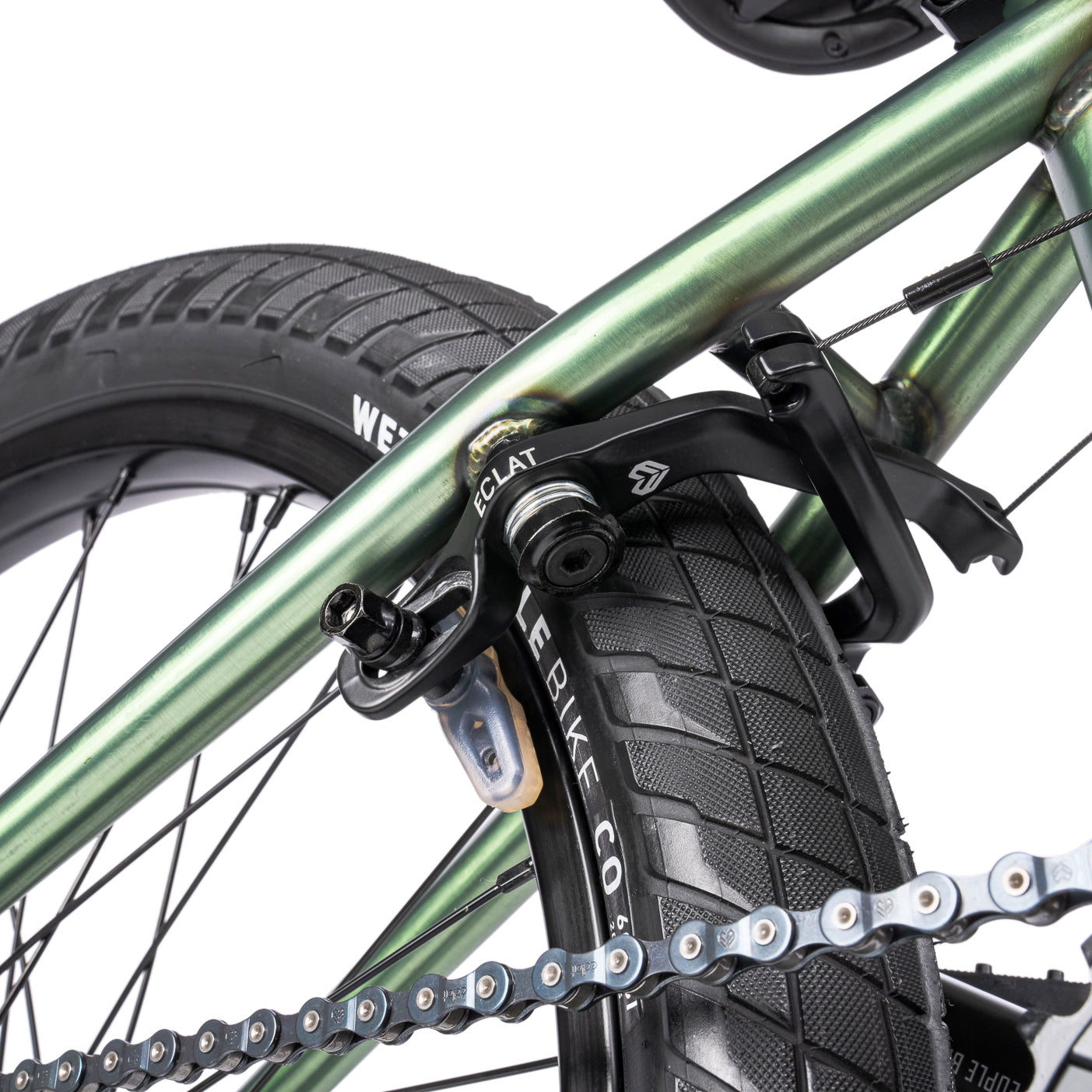

Brakes: éclat "talon" u-brake rear, alloy

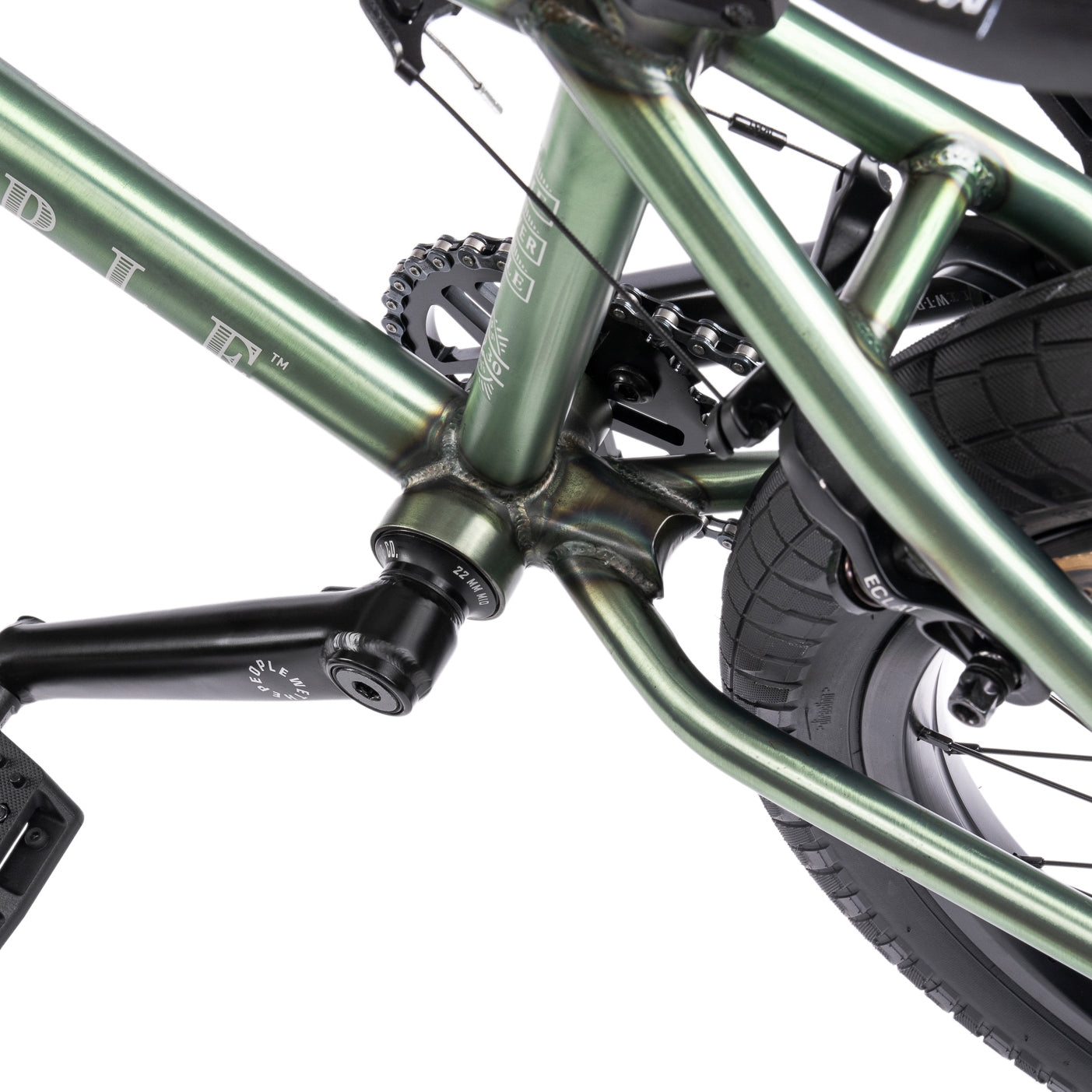

Cranks: Wethepeople "logic" tubular 3pc crank, 22mm, crmo, 175mm, 48 spline
BB: wethepeople "compact" bb, 22mm, press fit, sealed bearing

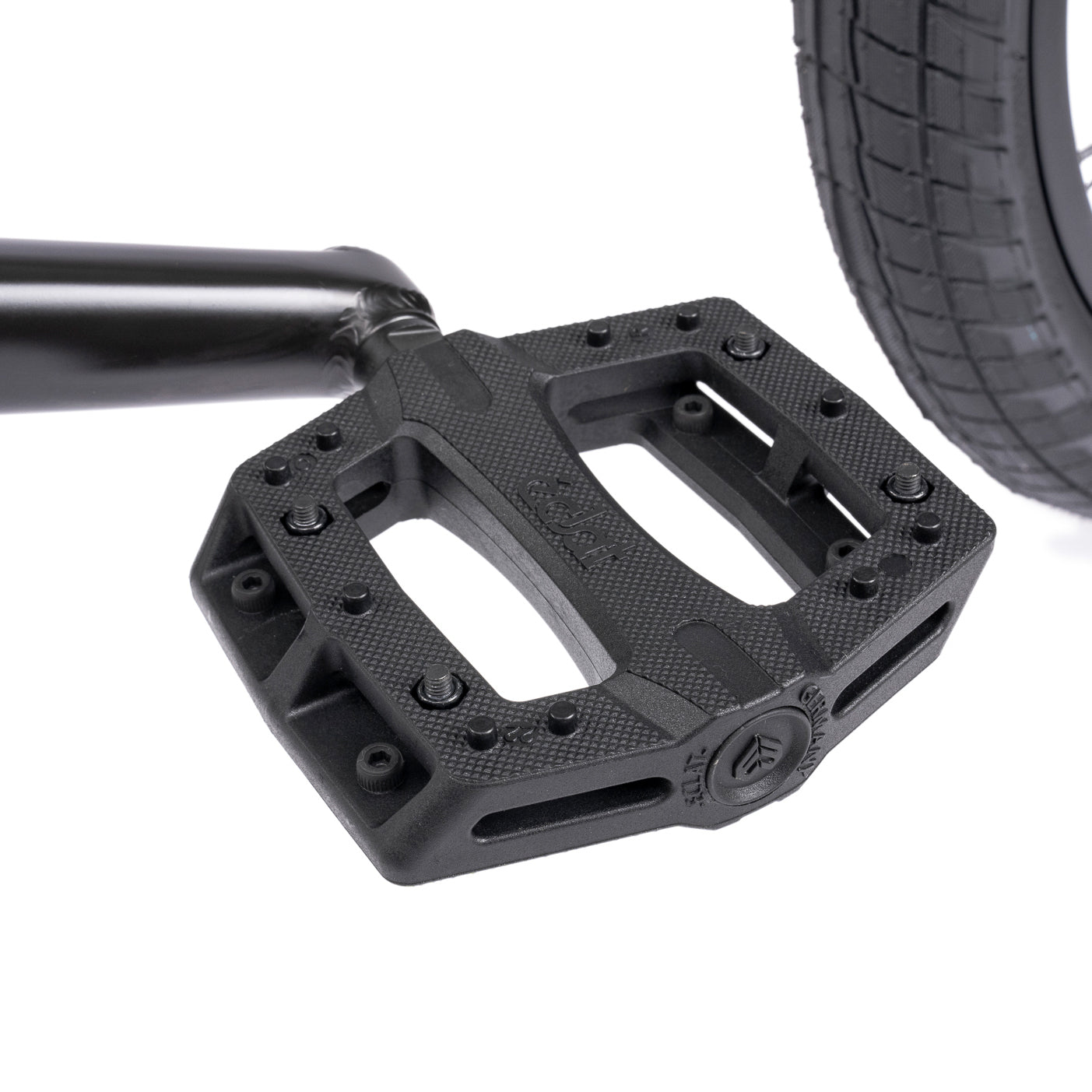

Pedals: éclat "contra" pedals, nylon/fiberglass
Chain: éclat "diesel" chain

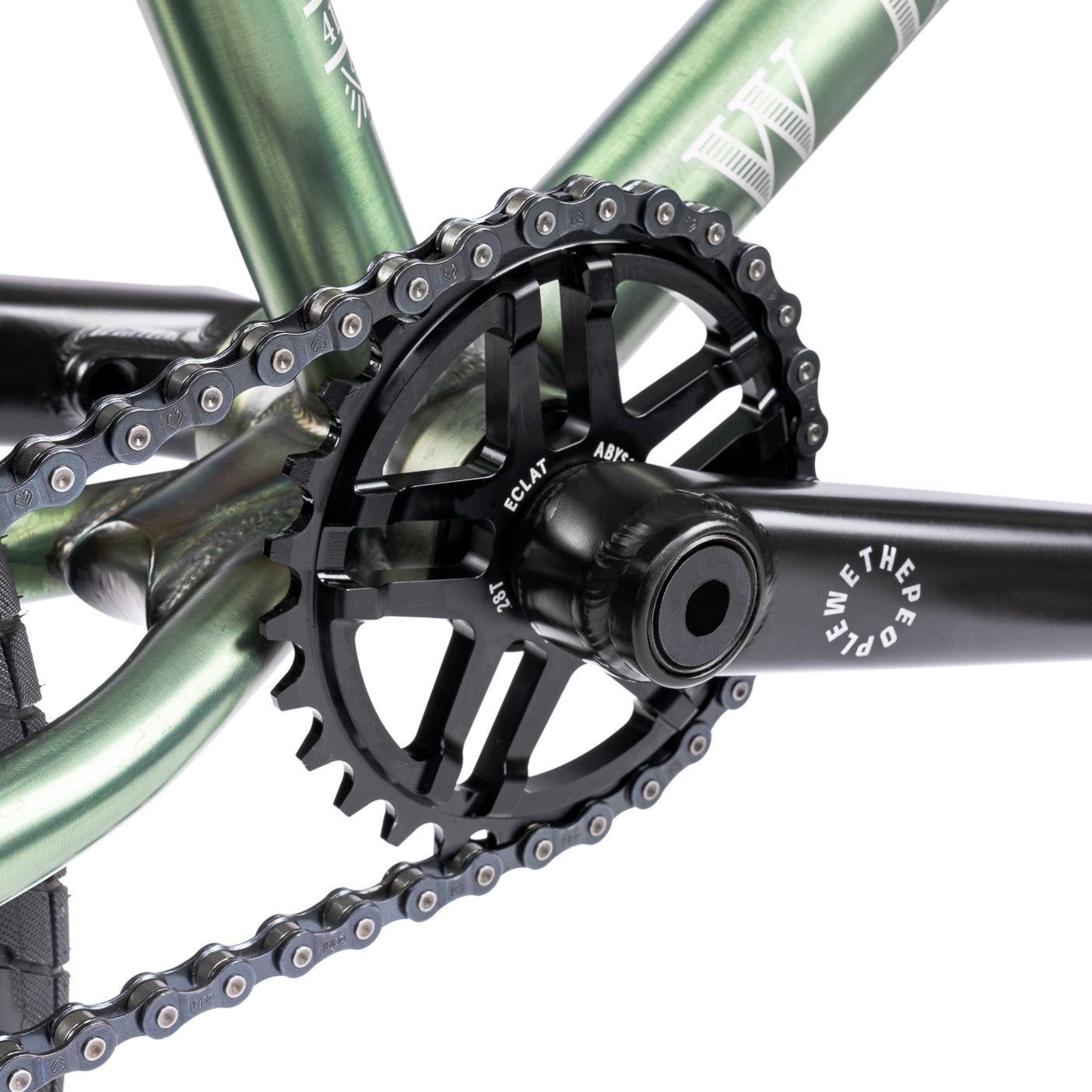

Sprocket: éclat "abyss" sprocket, cnc, 6061-t6 alloy, 28t
Driver: 1pc cassette driver, 9t, full bushing, sds (rsd/lsd switchable)

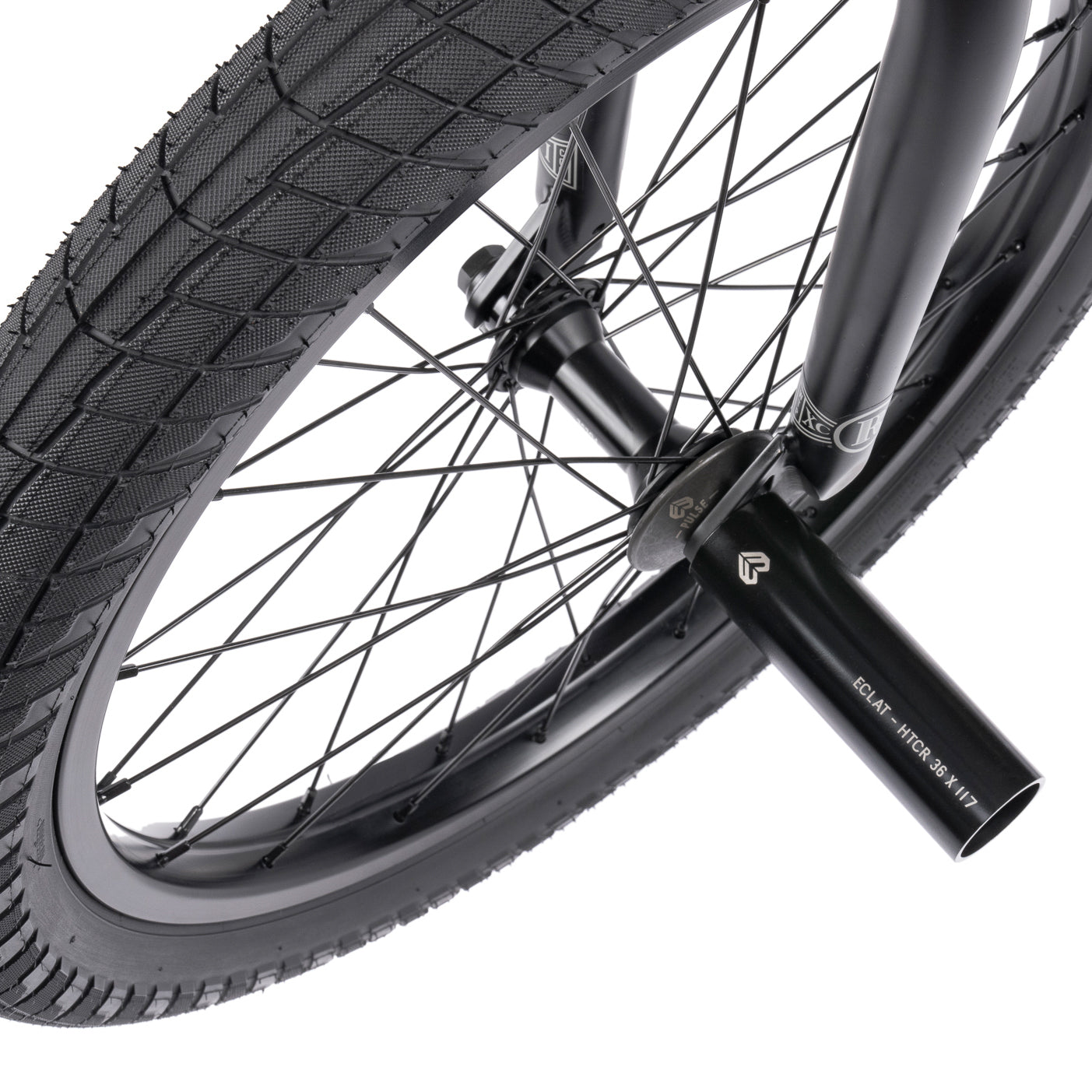

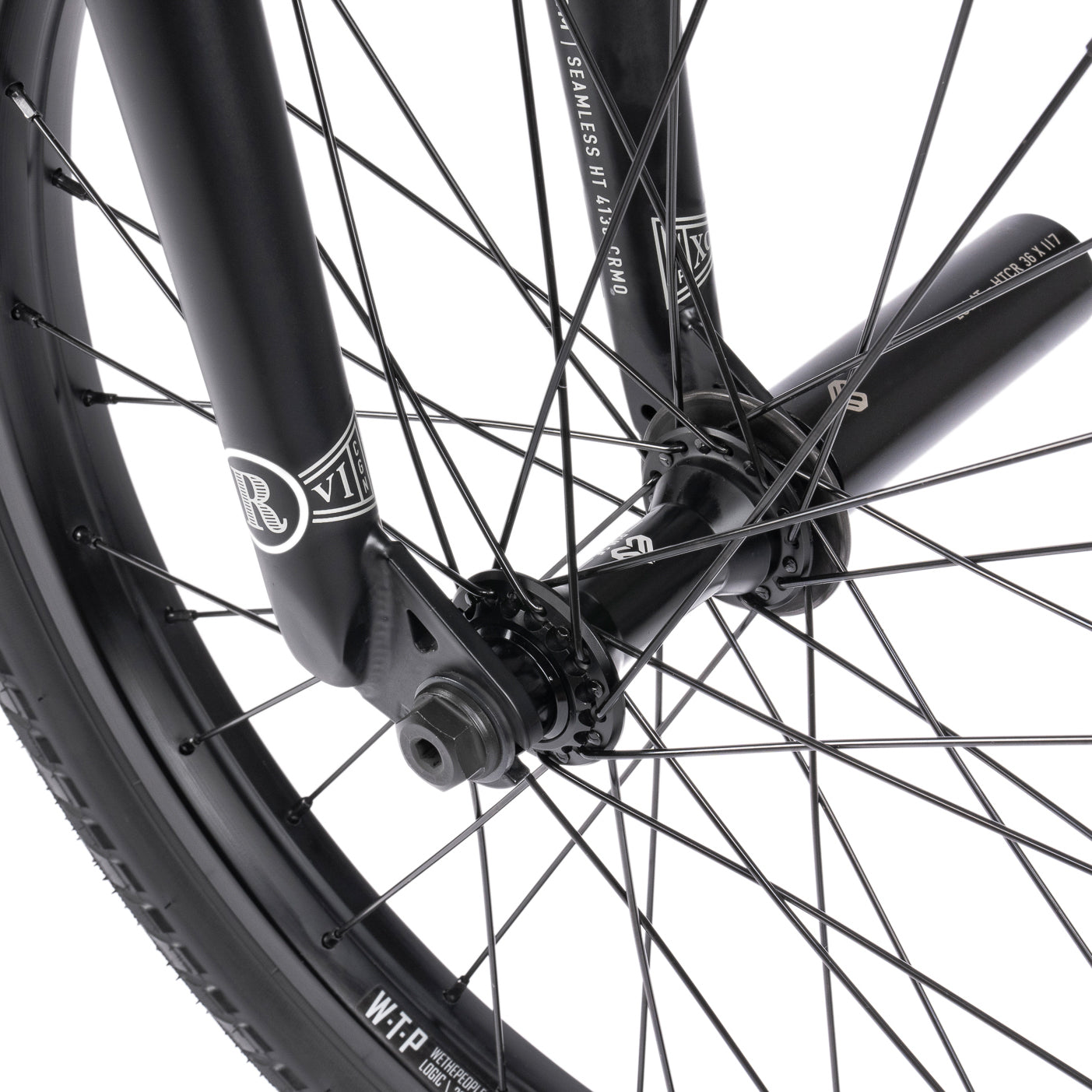

Front Hub: éclat "pulse" hub, fully sealed, 3/8"s axle, 36h

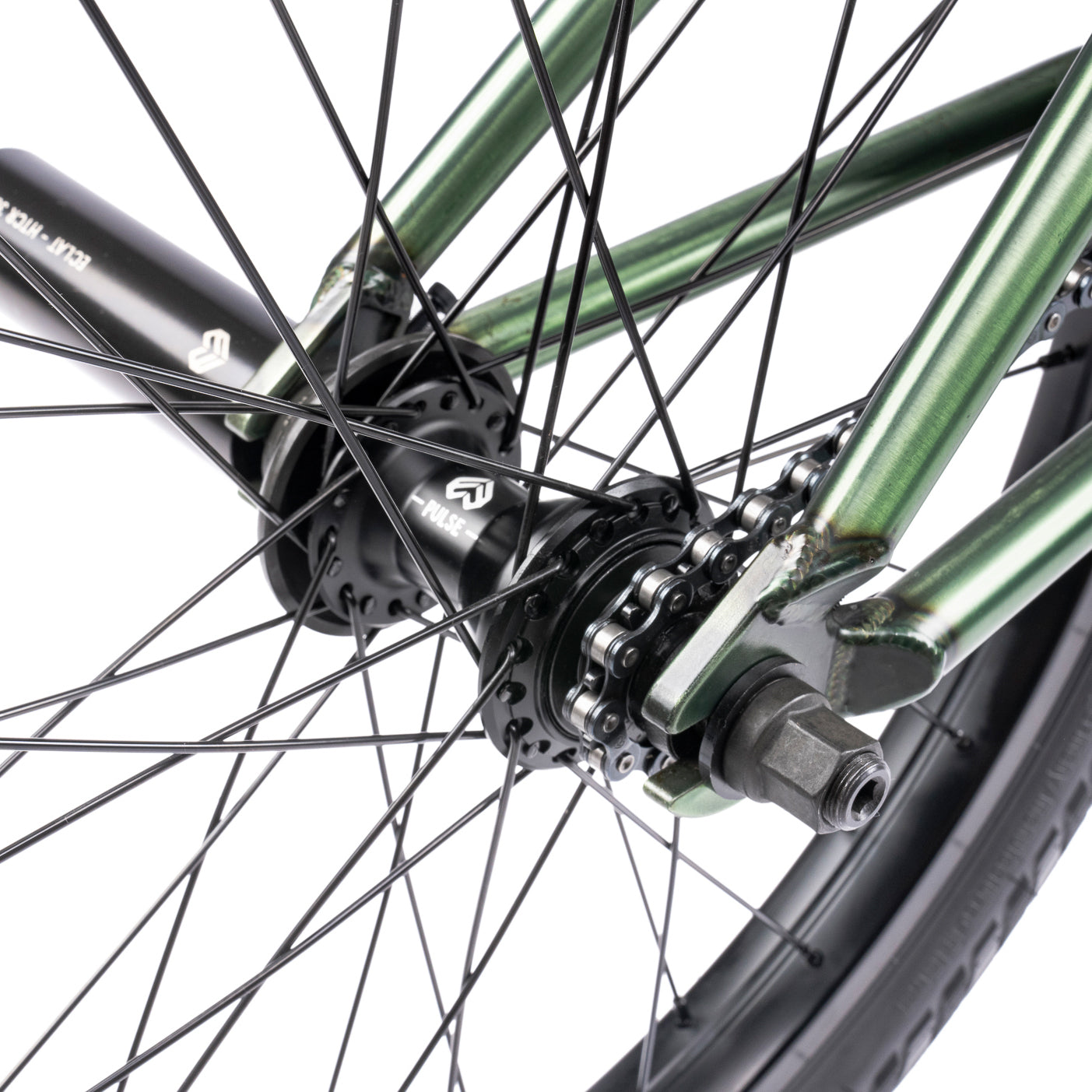

Rear Hub: éclat "pulse" cassette hub, fully sealed, 9t, 14mm axle, 36h, sds driver
Hubguards: éclat "pulse" hub guards - 4140 crmo front (1x), 4140 crmo rear (1x)
Front Rim: wethepeople "logic" rim, double wall, welded, 36h
Rear Rim: wethepeople "logic" rim, double wall, welded, 36h

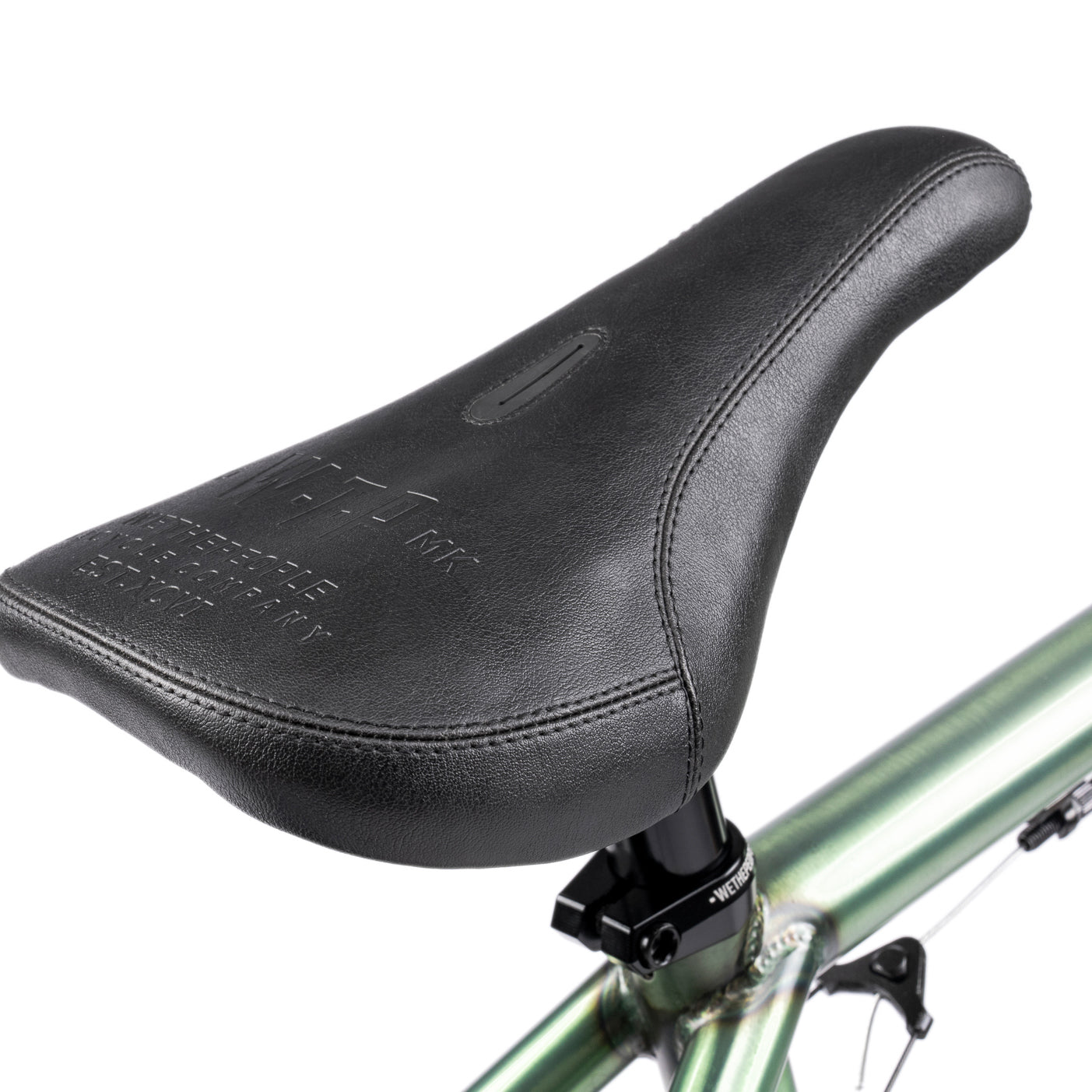

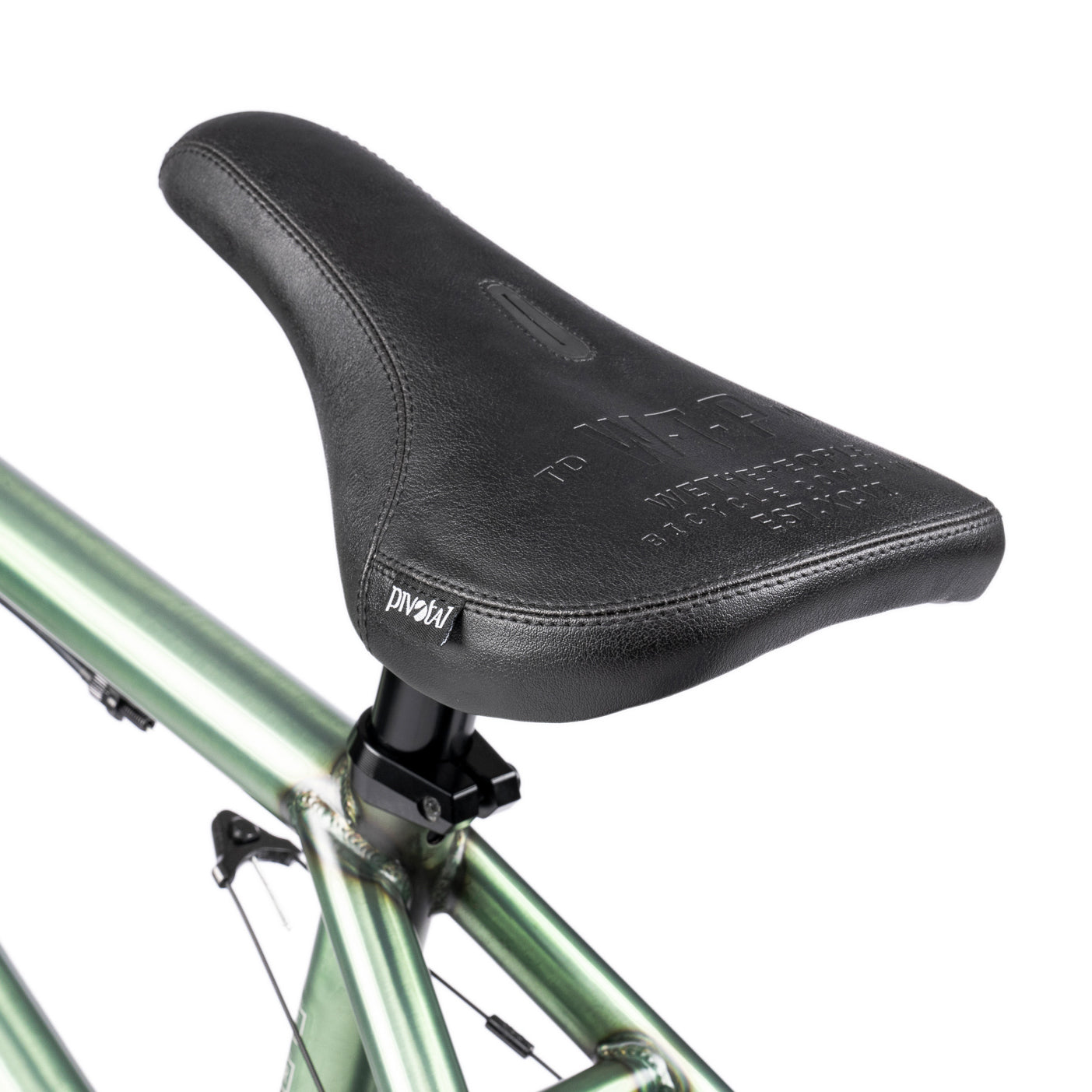

Seat: éclat "bios" pivotal seat, slim padded (spec subject to change)
Seat Post: wethepeople "team" pivotal seat post, 200mm long, 6061-t6 alloy
Seat Clamp: wethepeople "supreme" seat clamp, cnc alloy

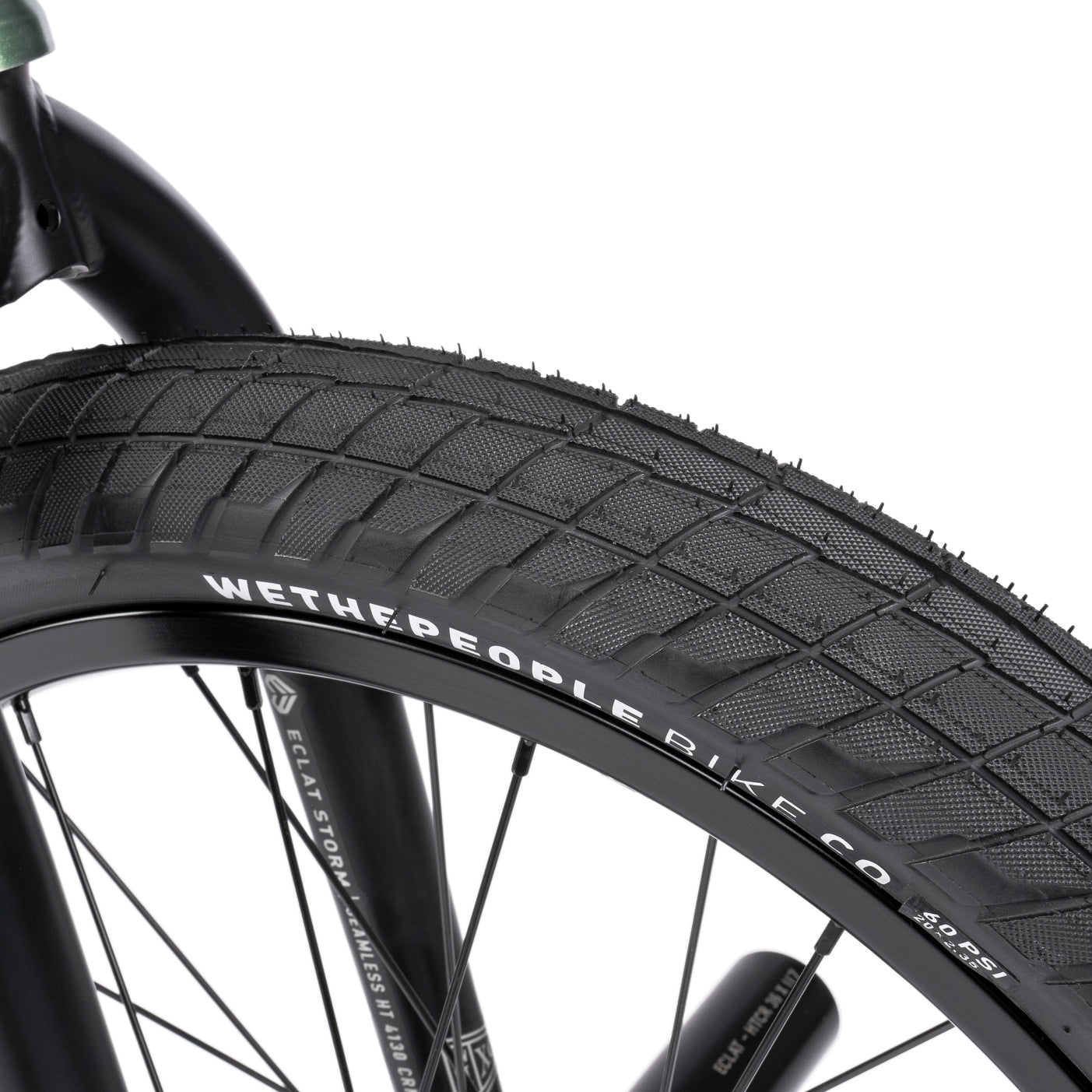

Tires: wethepeople "overbite" tires, 2.35" front & rear

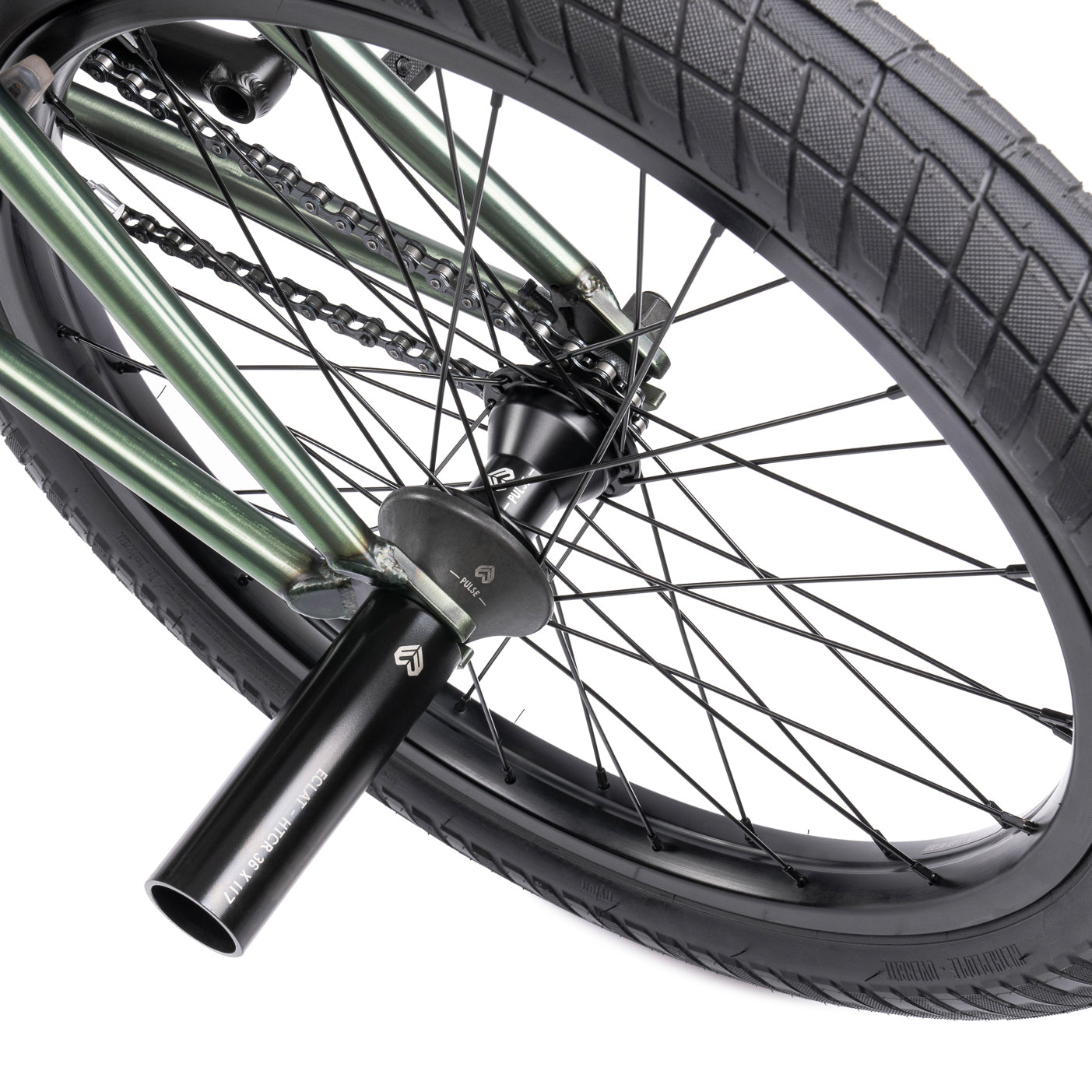

Pegs: éclat "dura" pegs, 4140 heat-treated crmo pegs, 4.6" long, x2

Weight: 11.72kg / 25.85lbs

Geometry
Top tube length: 21"
Chain stay length: 13.4" (13.25"-13.75")
Head tube angle: 74.85°
Seat tube angle: 71°
BB height: 11.47"
Standover height: 9.1"
