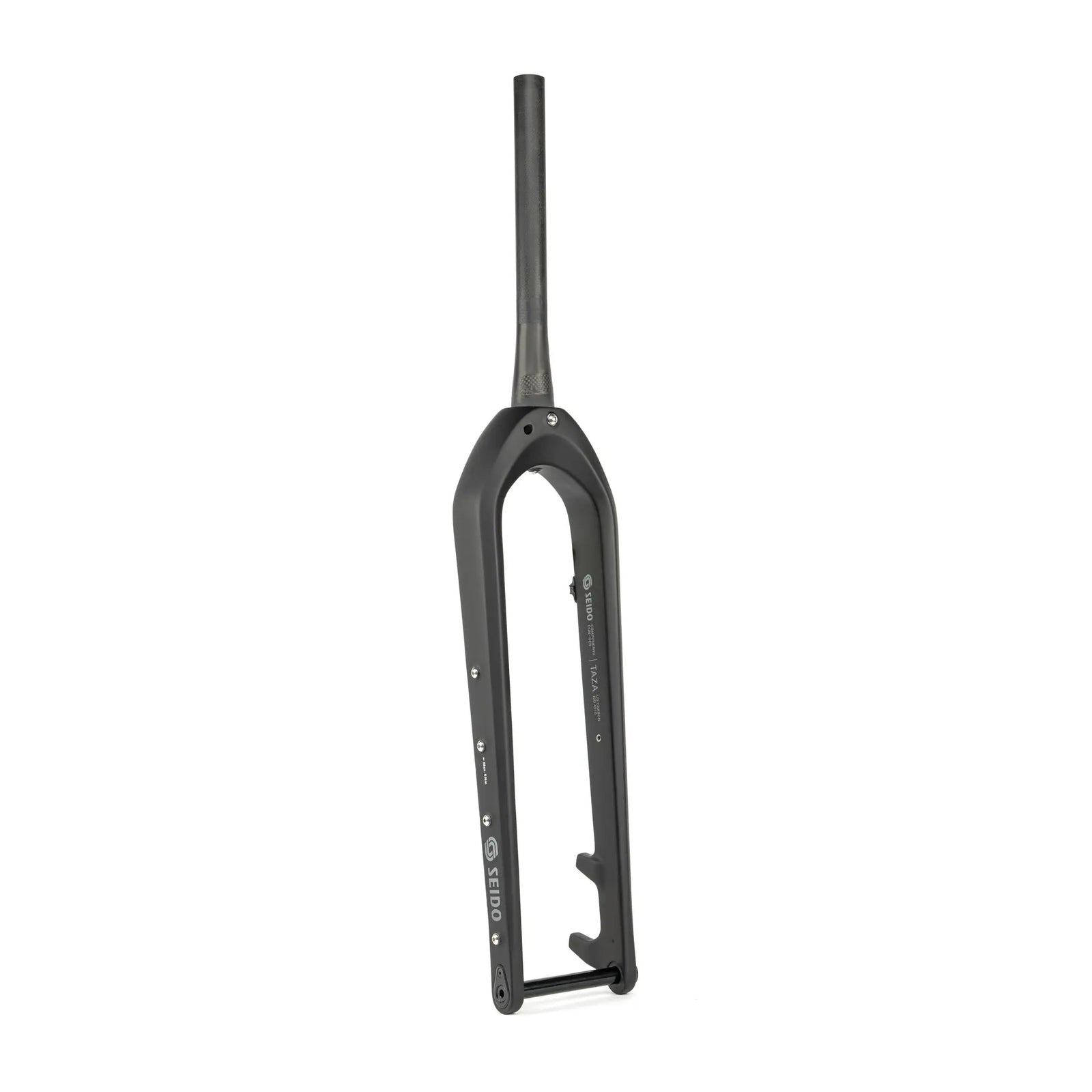

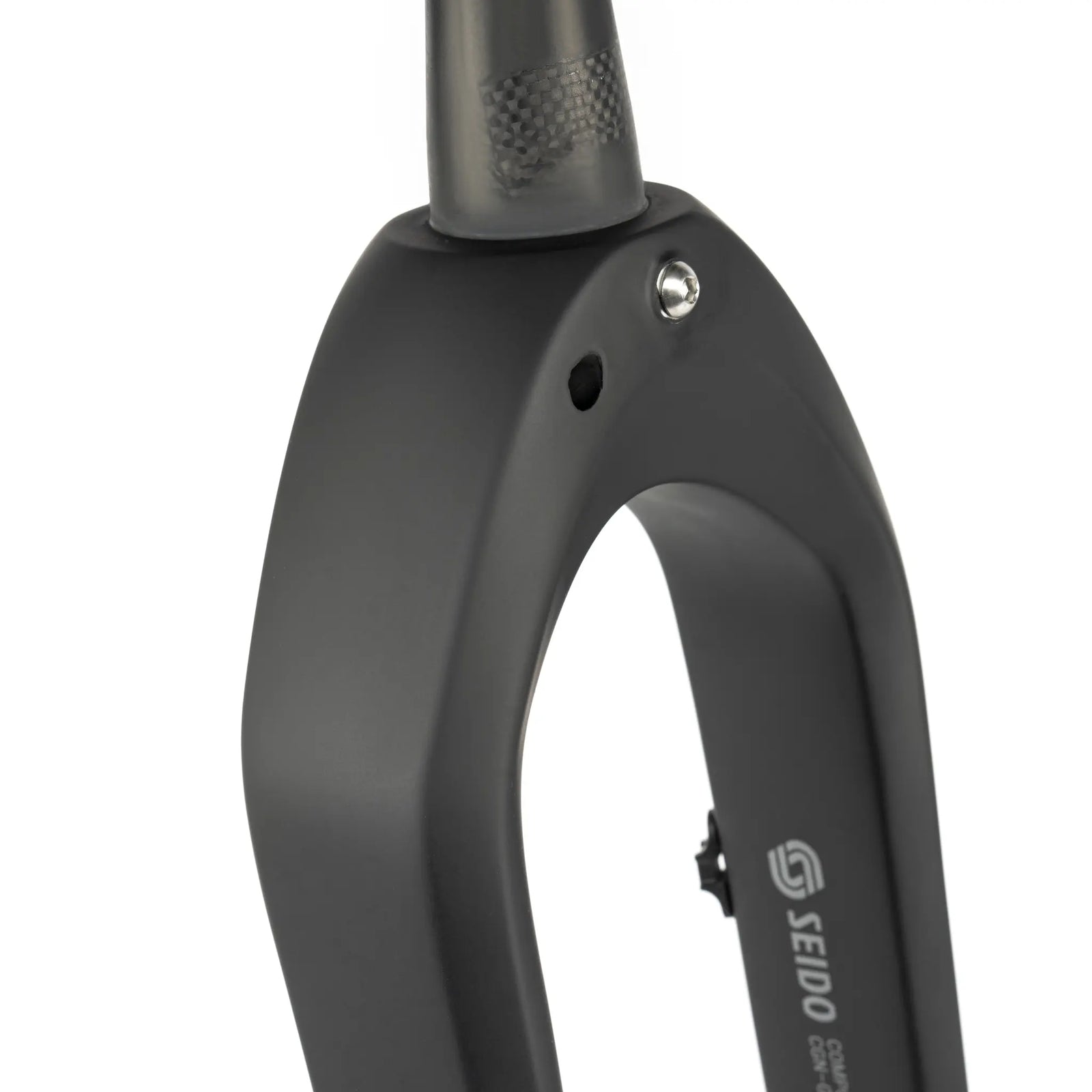

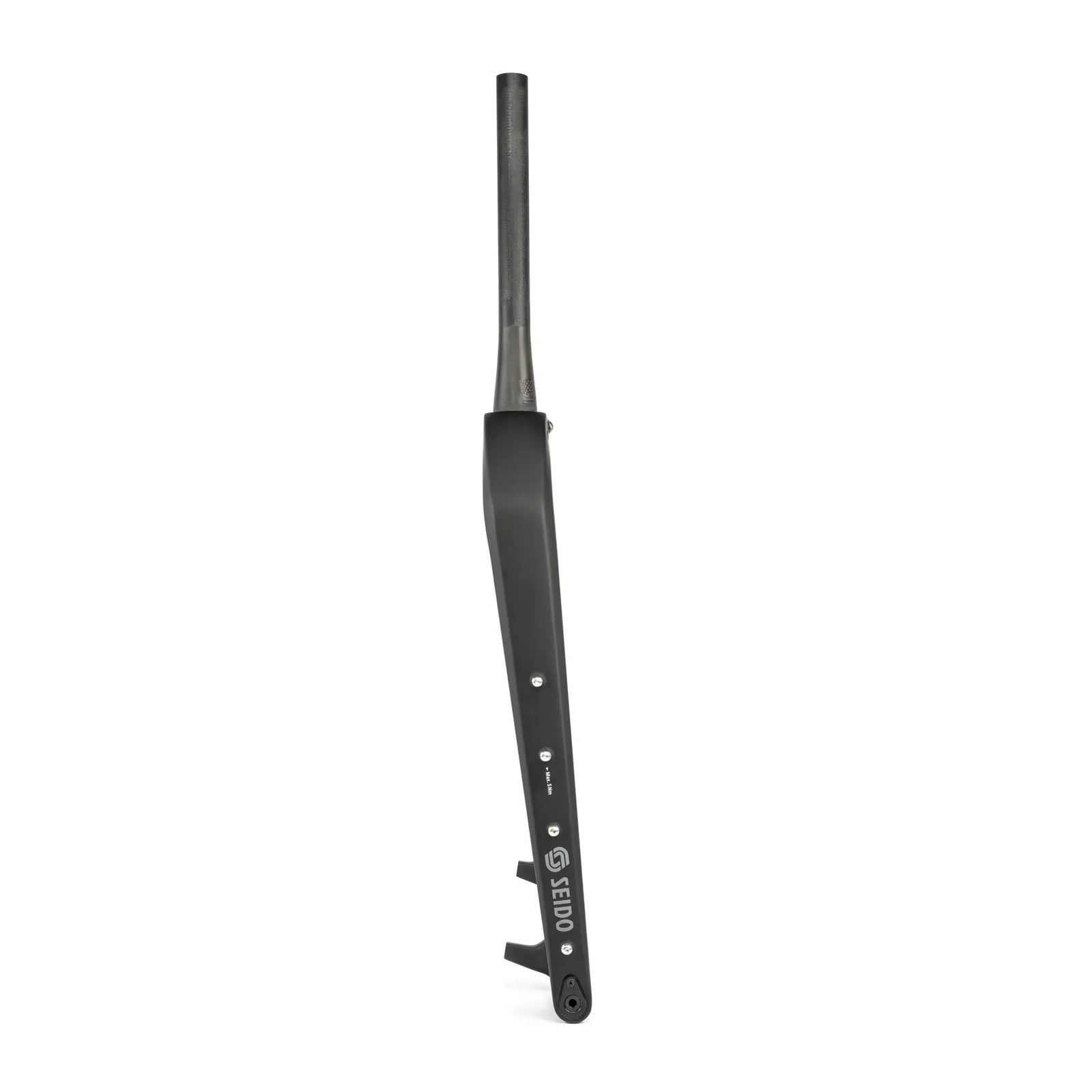

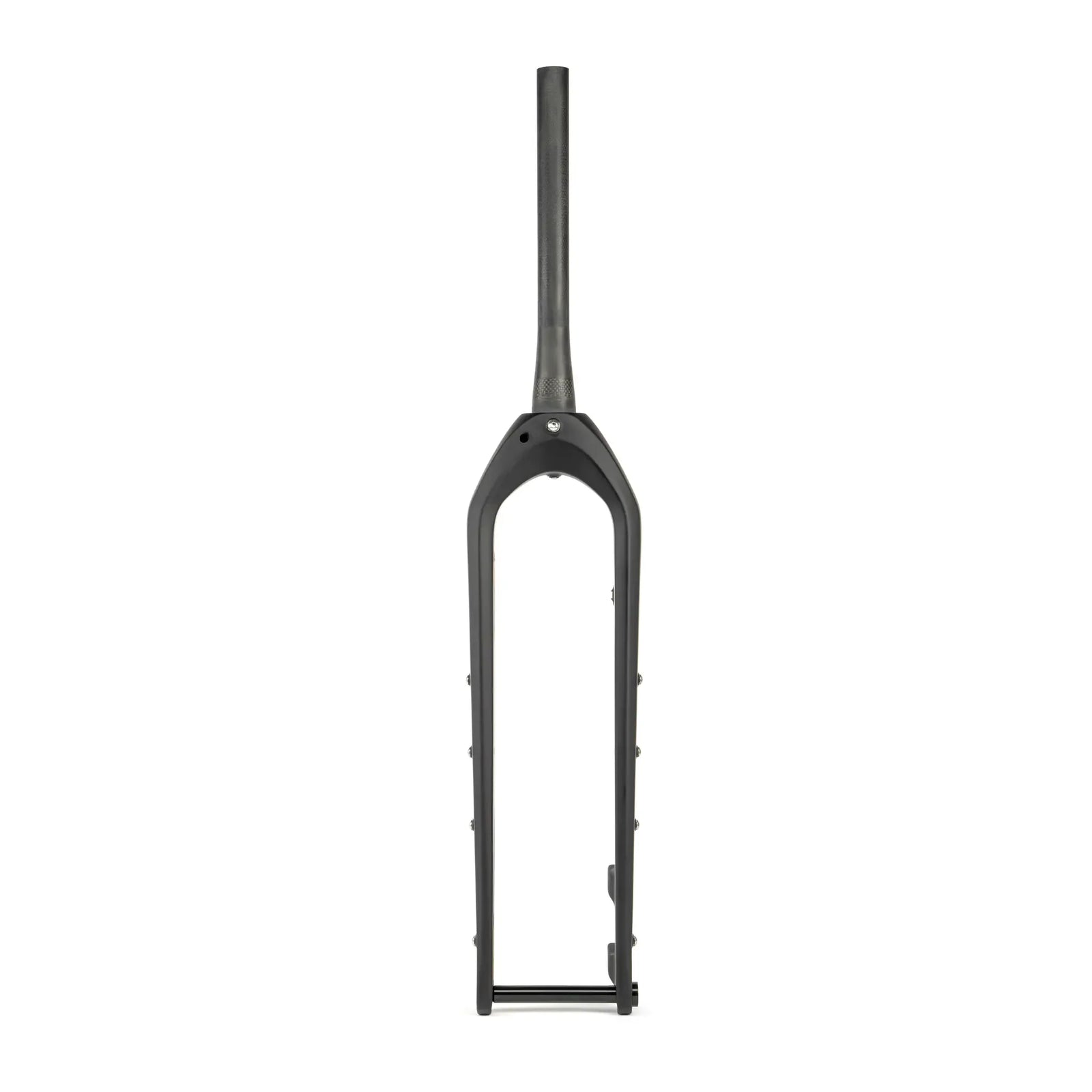

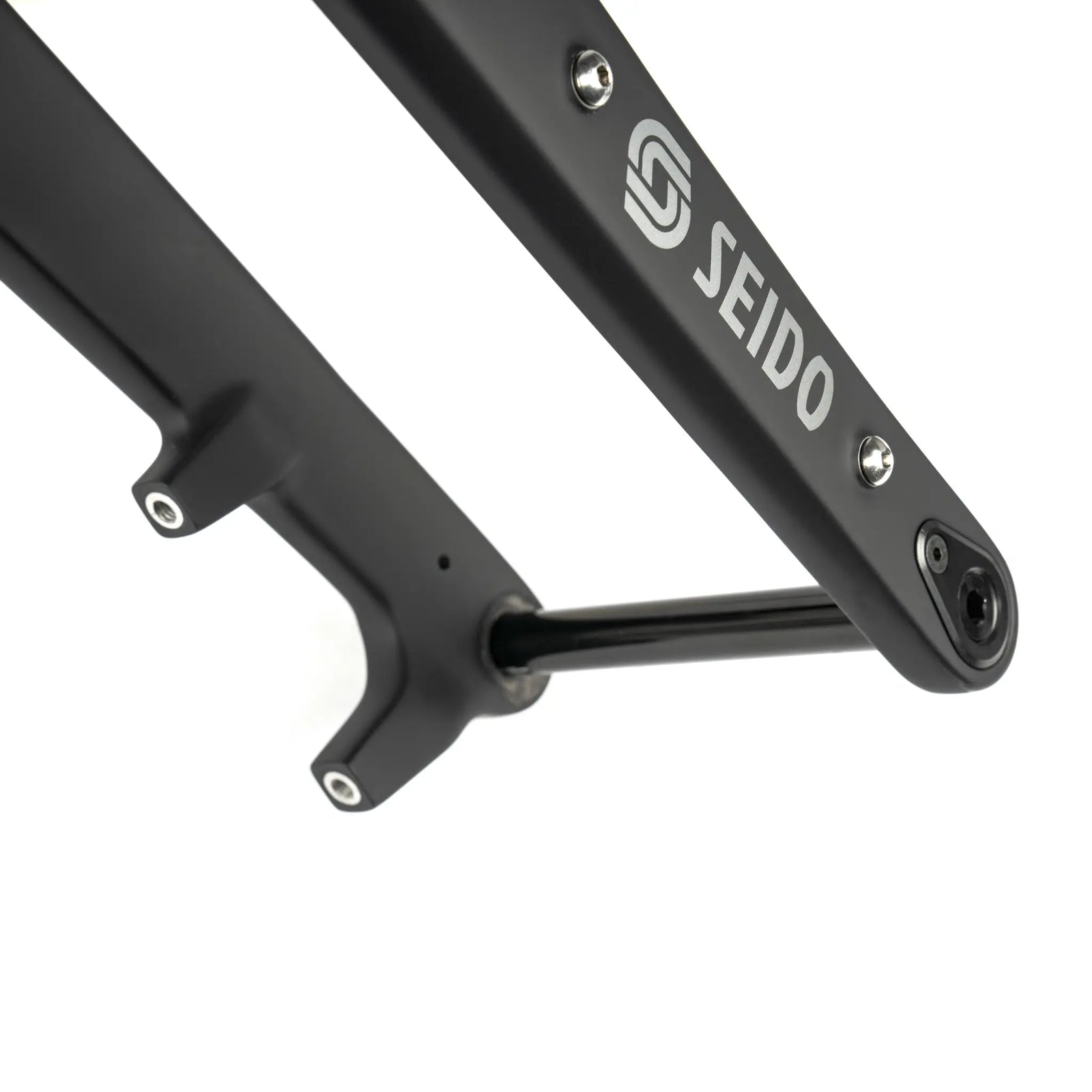

Taza Carbon MTB & Bikepacking Fork

The Taza carbon fork is a modern rigid fork designed for MTB, bikepacking, and ultra-distance riding. Built from lightweight UD carbon fiber, it combines strength with versatility. With clearance for 29 x 3.0” or 27.5 x 3.0” tires, fully internal dynamo cable routing, and lowrider rack mounts, it’s ready for demanding off-road adventures.

The updated design features a longer 510 mm axle-to-crown to match today’s MTB geometries and a Post Mount 7” brake interface that supports large 180–220 mm rotors. Multiple mounting points make it easy to carry extra gear, while Boost spacing and thru-axle compatibility ensure a stiff, secure setup for modern wheel standards.

Key Features

• Full UD carbon fiber construction

• Wide tire clearance: 29 x 3.0” / 27.5 x 3.0”

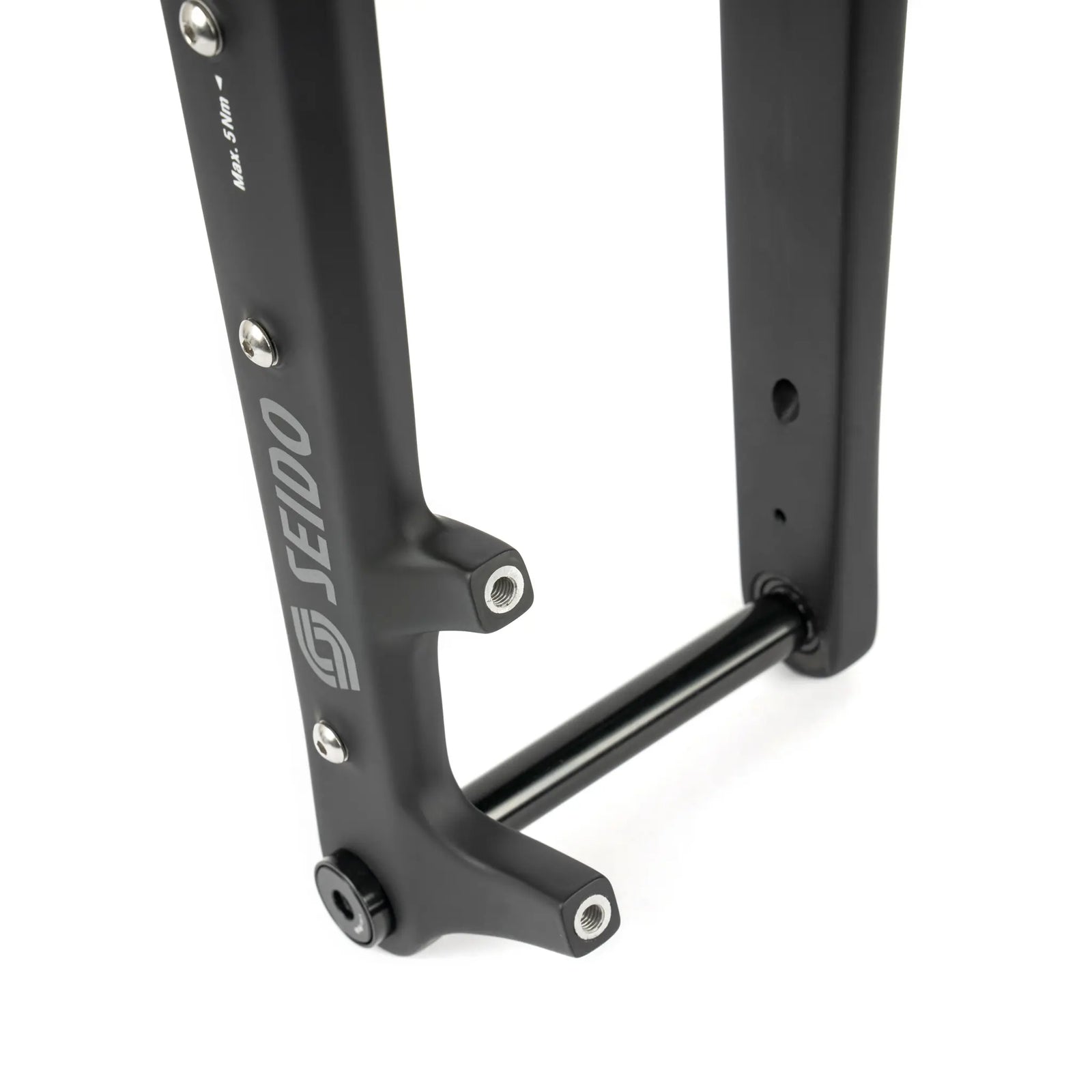

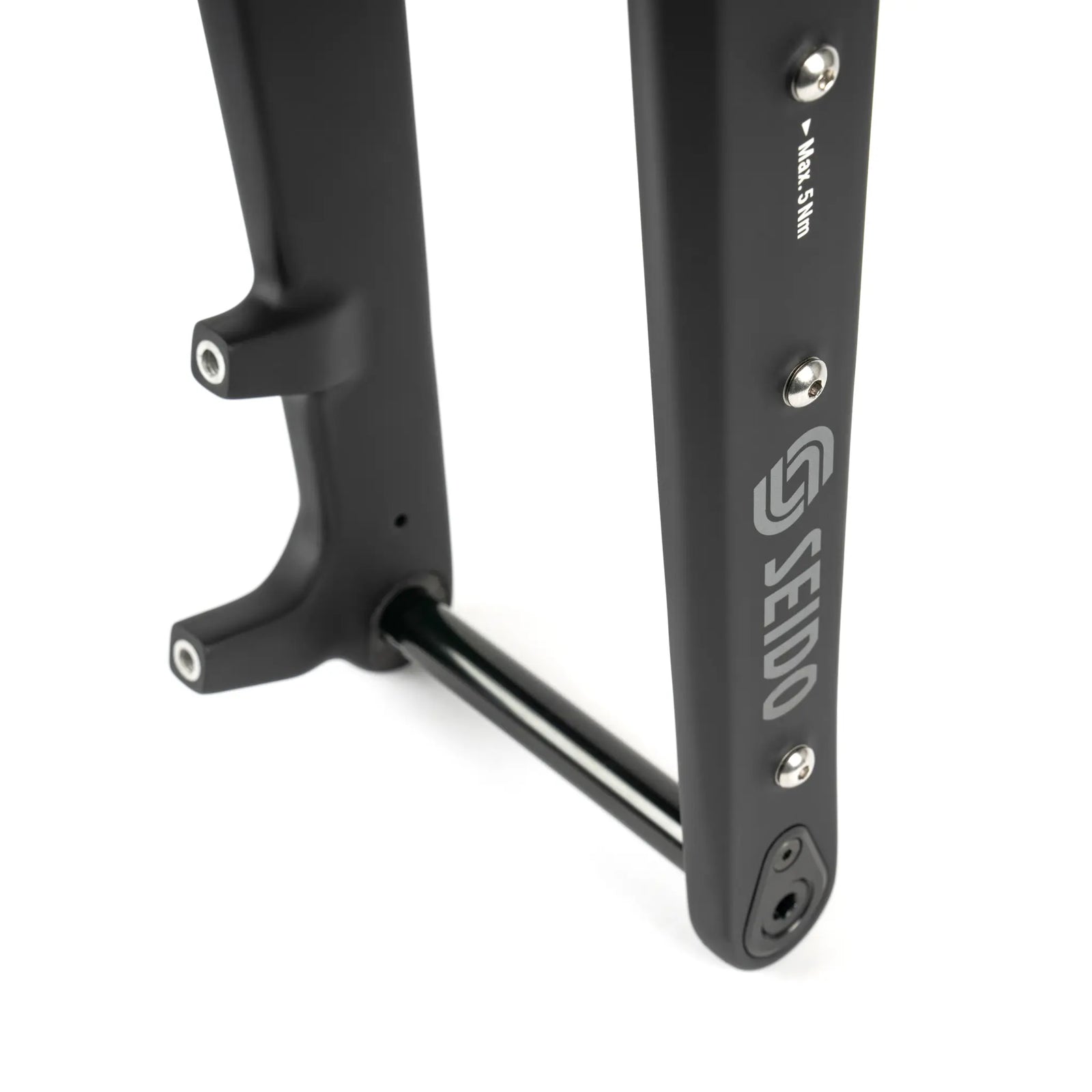

• Mounts for lowrider rack, triple cages, and lights

• Internal dynamo cable routing

• Post Mount 7” brake mount (180–220 mm rotors)

• Boost hub spacing 15 x 110 mm

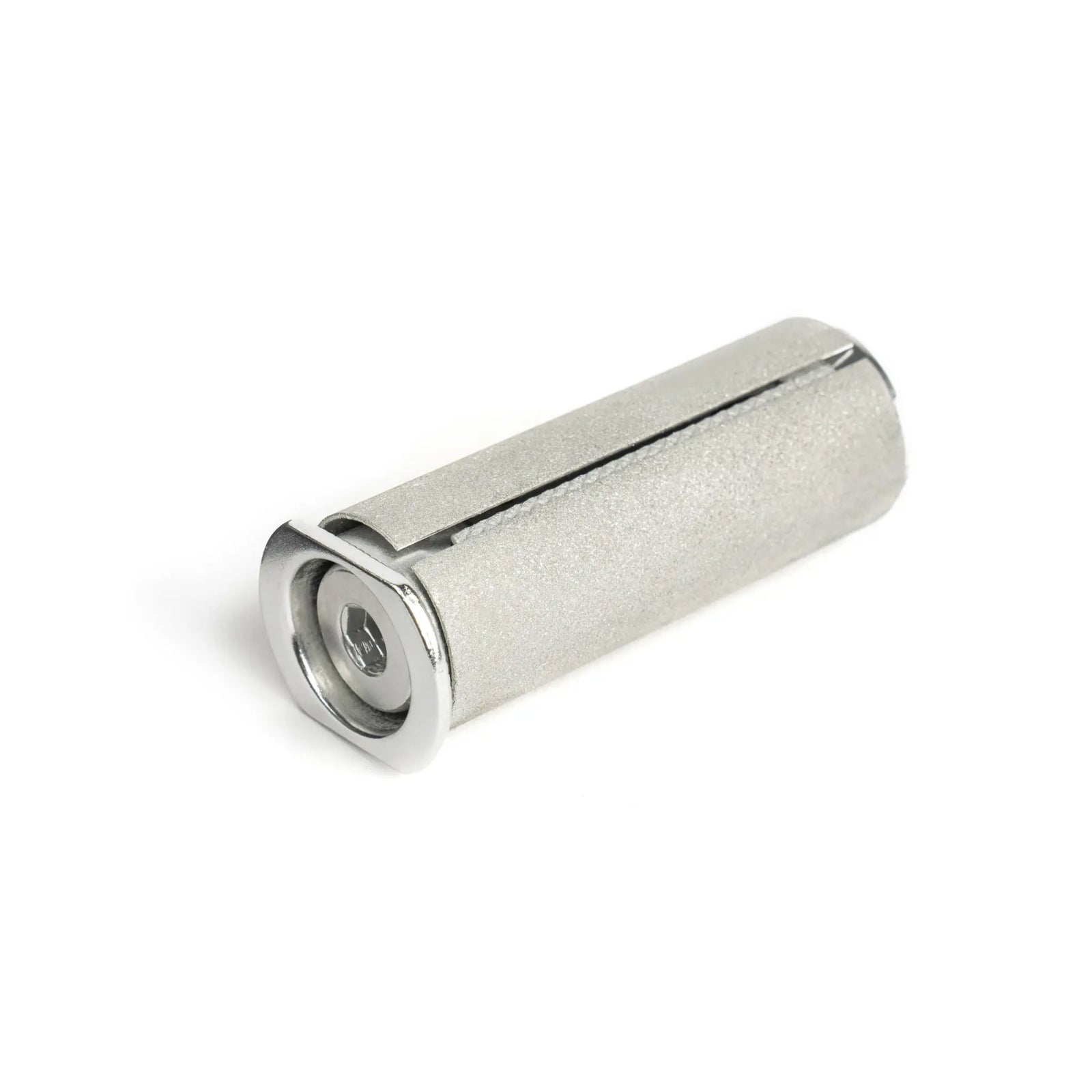

• Includes thru-axle, expander, and cable port plugs

• Maximum system weight: 150 kg

Technical Specifications

• Color: Matt black

• Material: Full UD carbon fiber

• Steerer: 1-1/8” – 1-1/2” tapered, 300 mm

• Offset: 51 mm

• Axle to Crown: 510 mm

• Hub Spacing: 110 mm (Boost)

• Brake: Post Mount 7”, 180–220 mm rotor range

• Routing: Internal dynamo cable

• Mounts: Triple cage / Headlight / Lowrider rack

• Included: 15 x 110 mm thru-axle (135 mm length), expander, cable port plugs

• Weight: 656 g (fork only), 58 g (thru-axle), 70 g (expander & bolts)

• Tire Clearance: 29 x 3.0” (75-622) / 27.5 x 3.0” (75-584)

• Max. System Weight: 150 kg

• Crown Diameter: 57 mm

• ASTM Rating: 3 (MTB / bikepacking)

• Thru-Axle Specs: 15 mm, M15 x 1.5 thread, 14 mm min. thread length

• Max. Hub Endcap Diameter: 21 mm

Important Notes

Cage mounts are rated for riding loads only. Avoid leaning the bike with cages against walls or striking obstacles, as this can exceed the load capacity. Cages should sit flush within 5 mm of the mounting bolt; washers may be needed depending on cage design.
