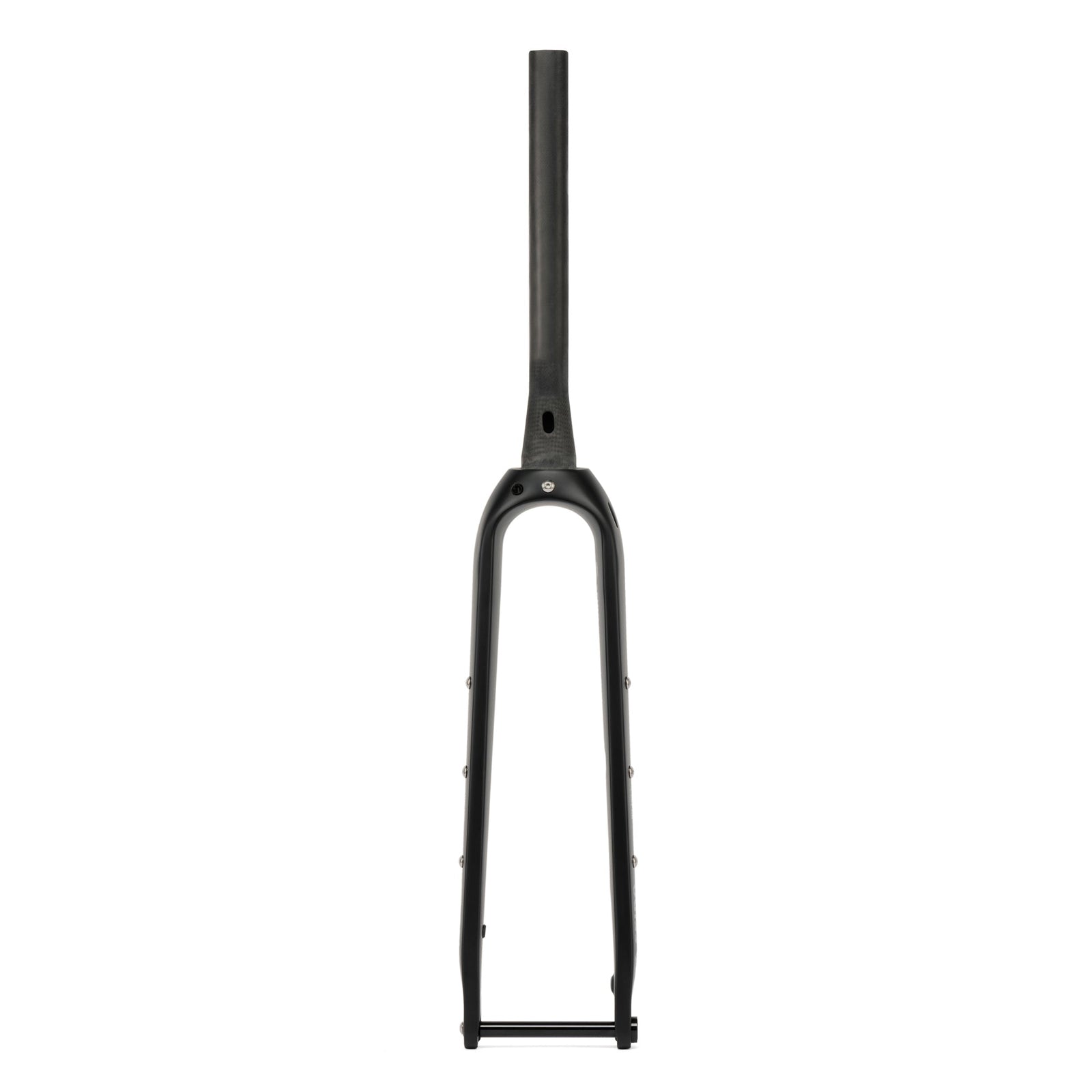

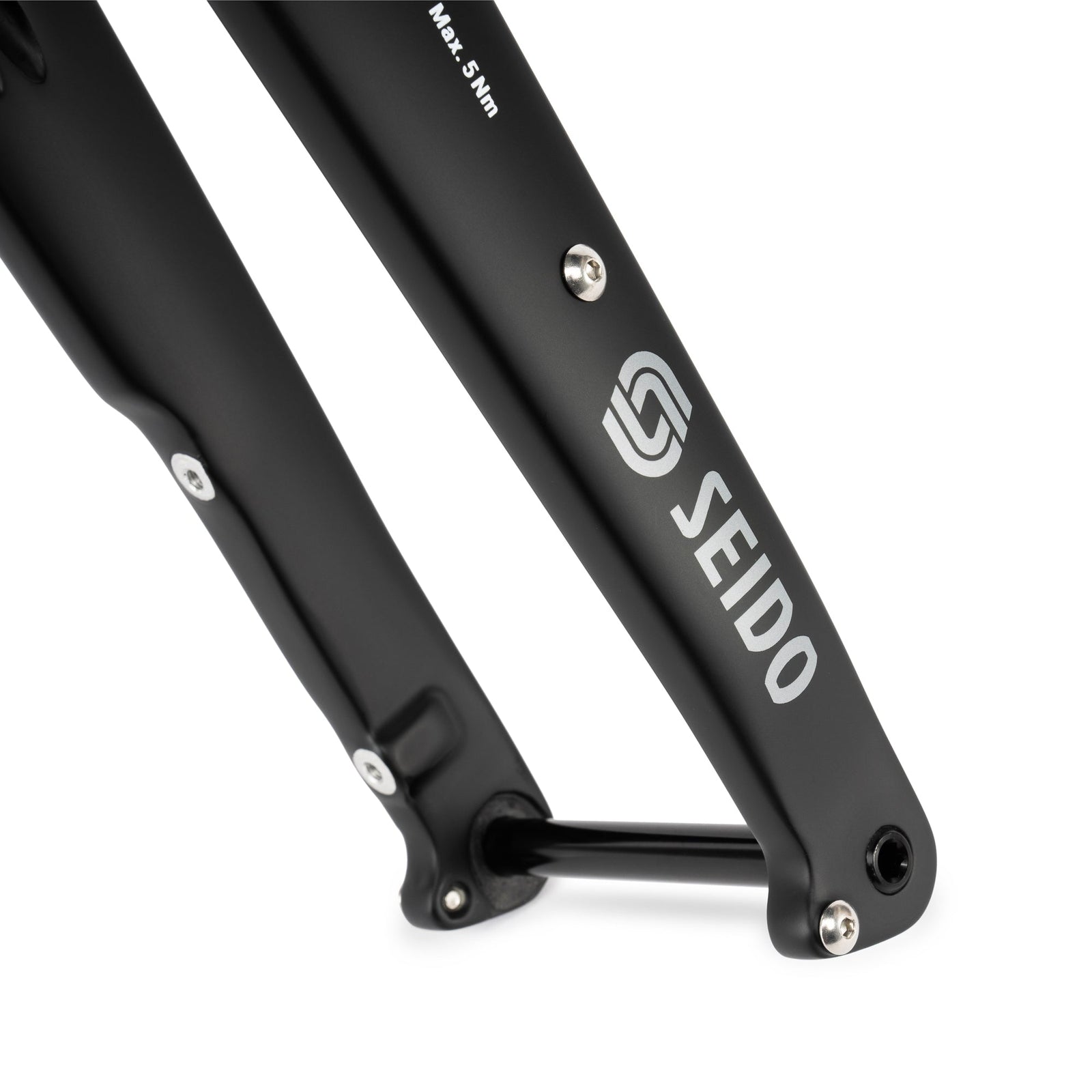

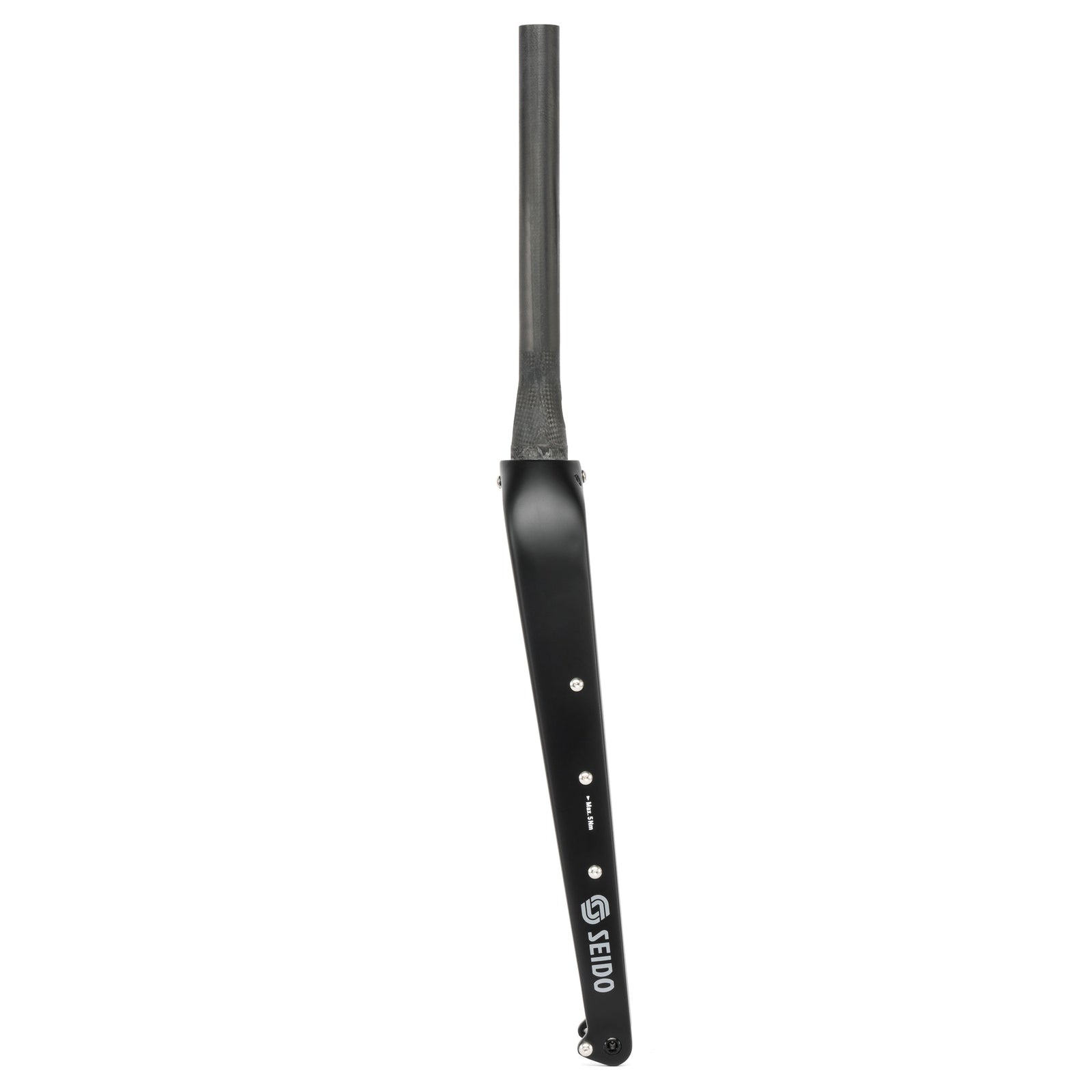

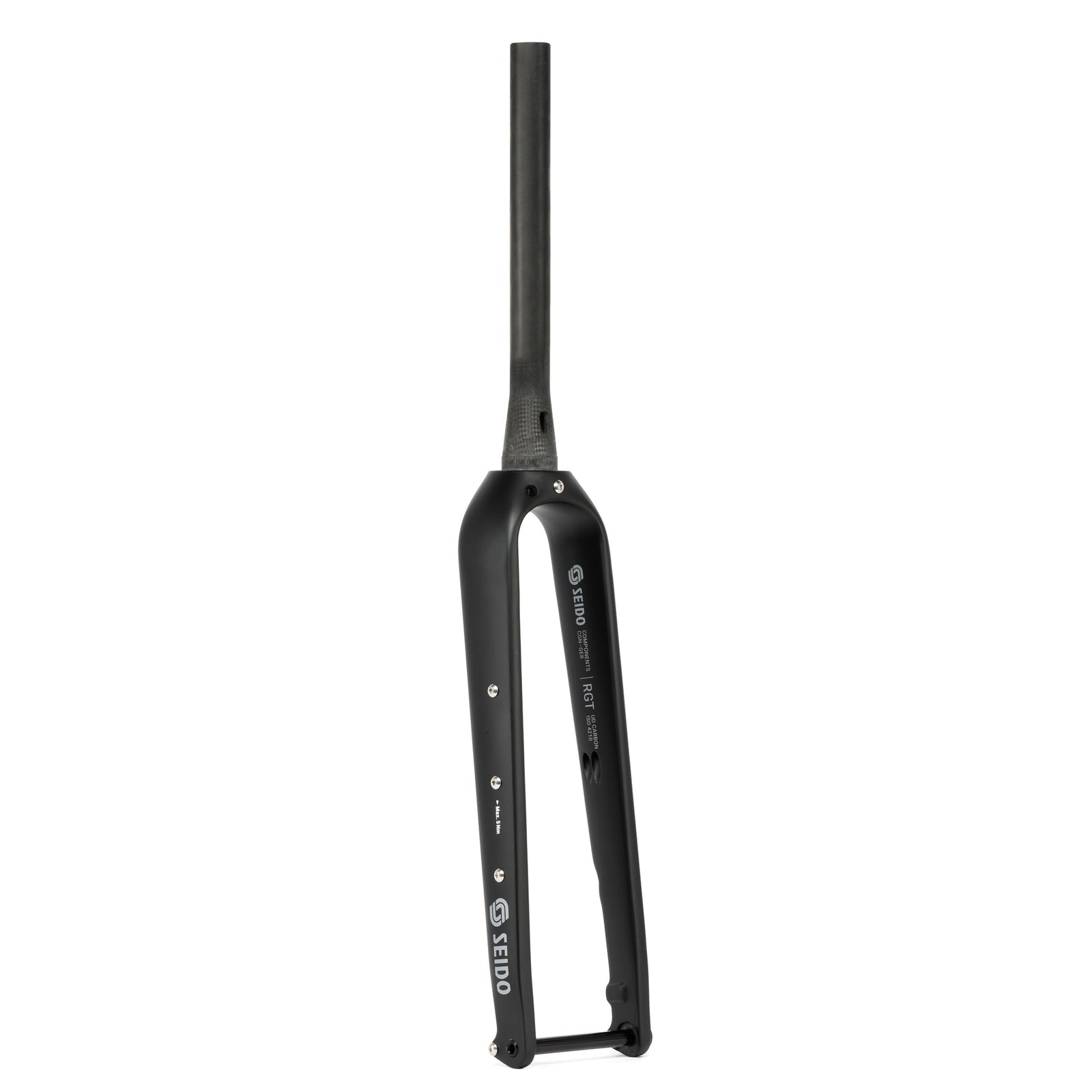

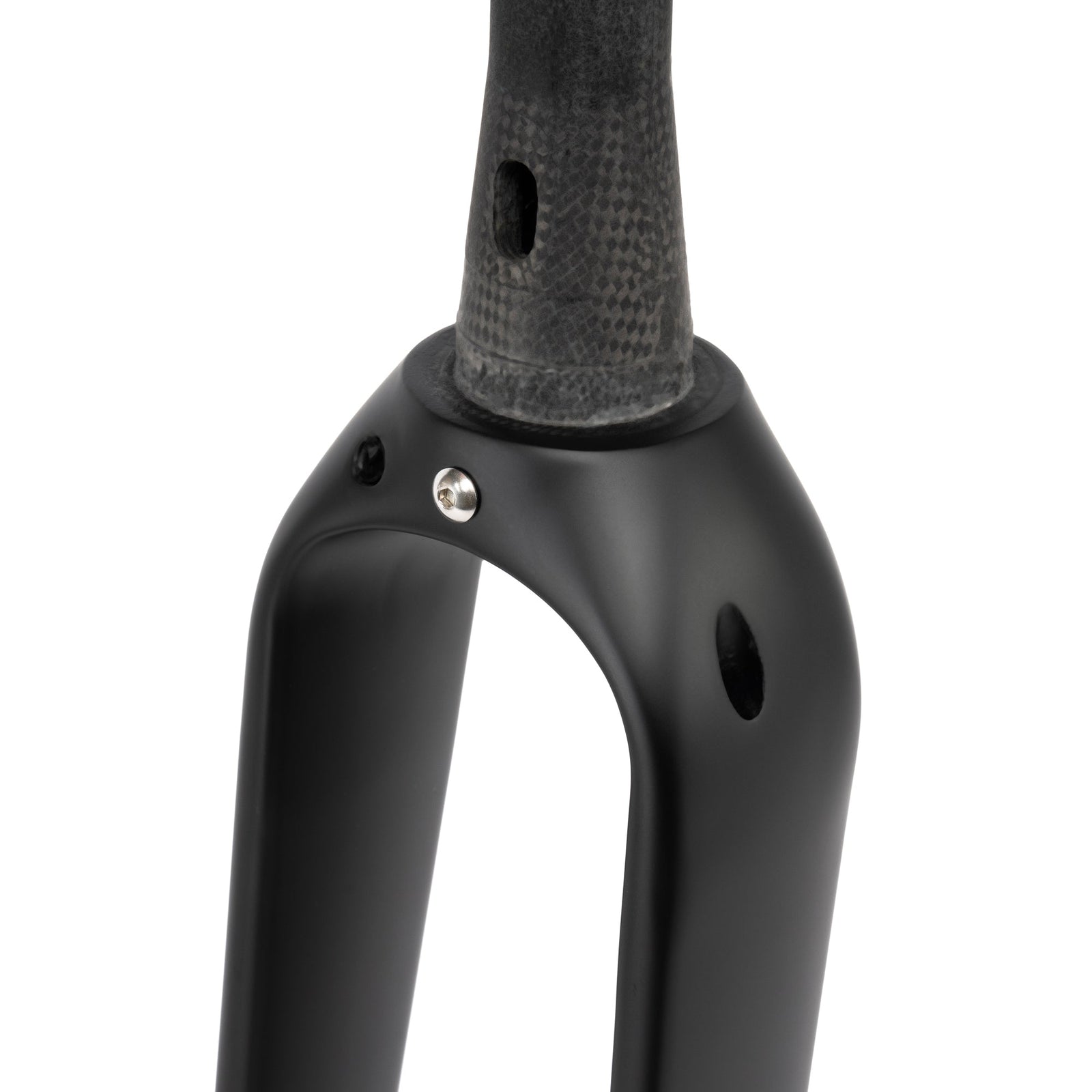

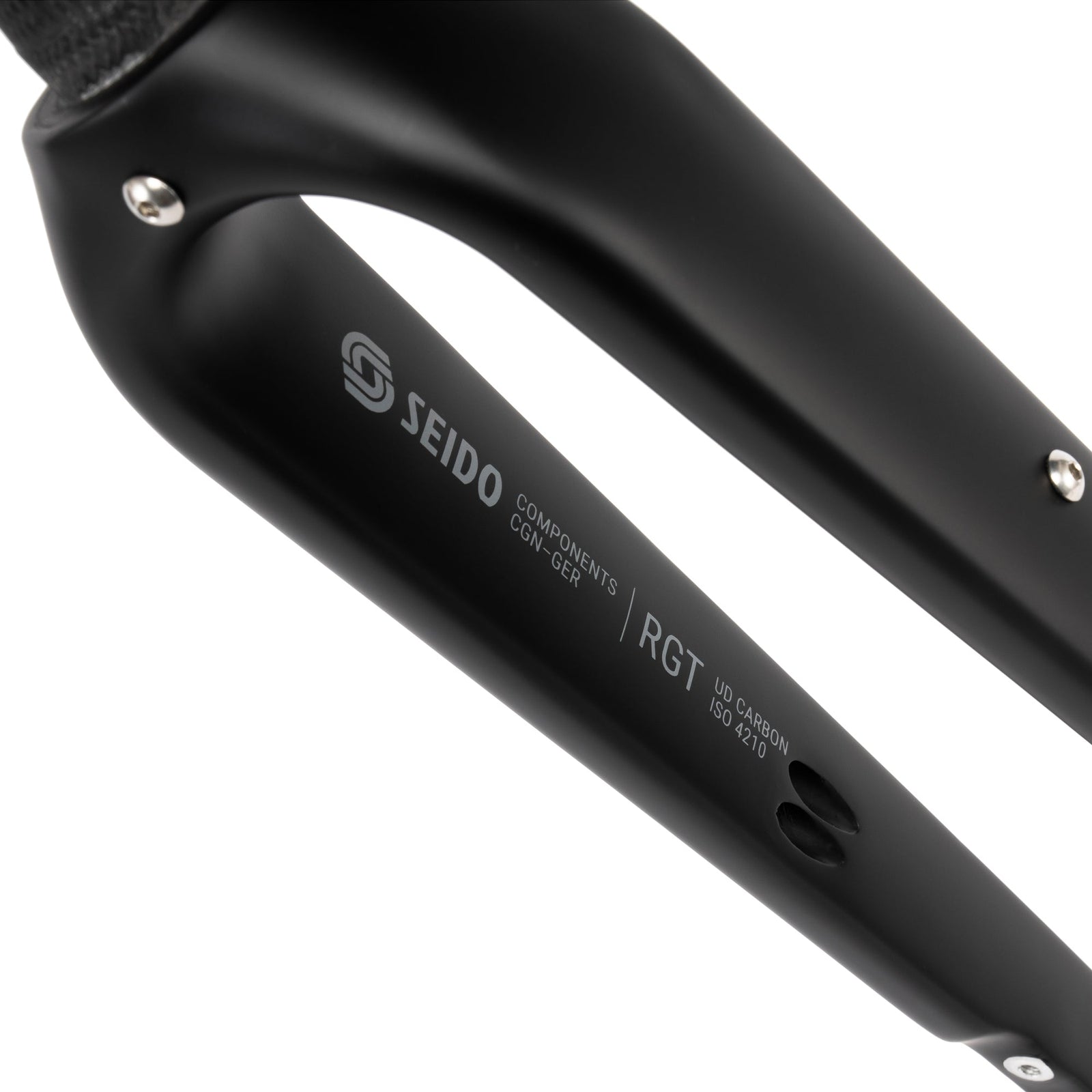

The RGT fork delivers an upgrade pack to any contemporary All-road/ Gravel bike with matching geometry. It boasts tire clearance up to 47-622 or 54-584, accepts brake rotors up to 180mm and is ready to work with frames that route cables fully internally. Triple cage mounts on each fork leg help carry more gear along, all while being lightweight and stiff thanks to an advanced carbon fiber construction.

COLOR
Black

MATERIAL
Full UD Carbon Fiber

STEERER
Tapered, 1-1/8" - 1-1/2", 300 mm Length

S.H.I.S. DIMENSIONS
28.6 | 40

OFFSET
50 mm

AXLE TO CROWN
400 mm

HUB SPACING
100 mm

BRAKE
Flat Mount 160, rotor size 160 - 180 mm

INTERNAL ROUTING
Brake hose / Dynamo cable

MOUNTS
Triple Cage / Head light / Mudguards

INCLUDED

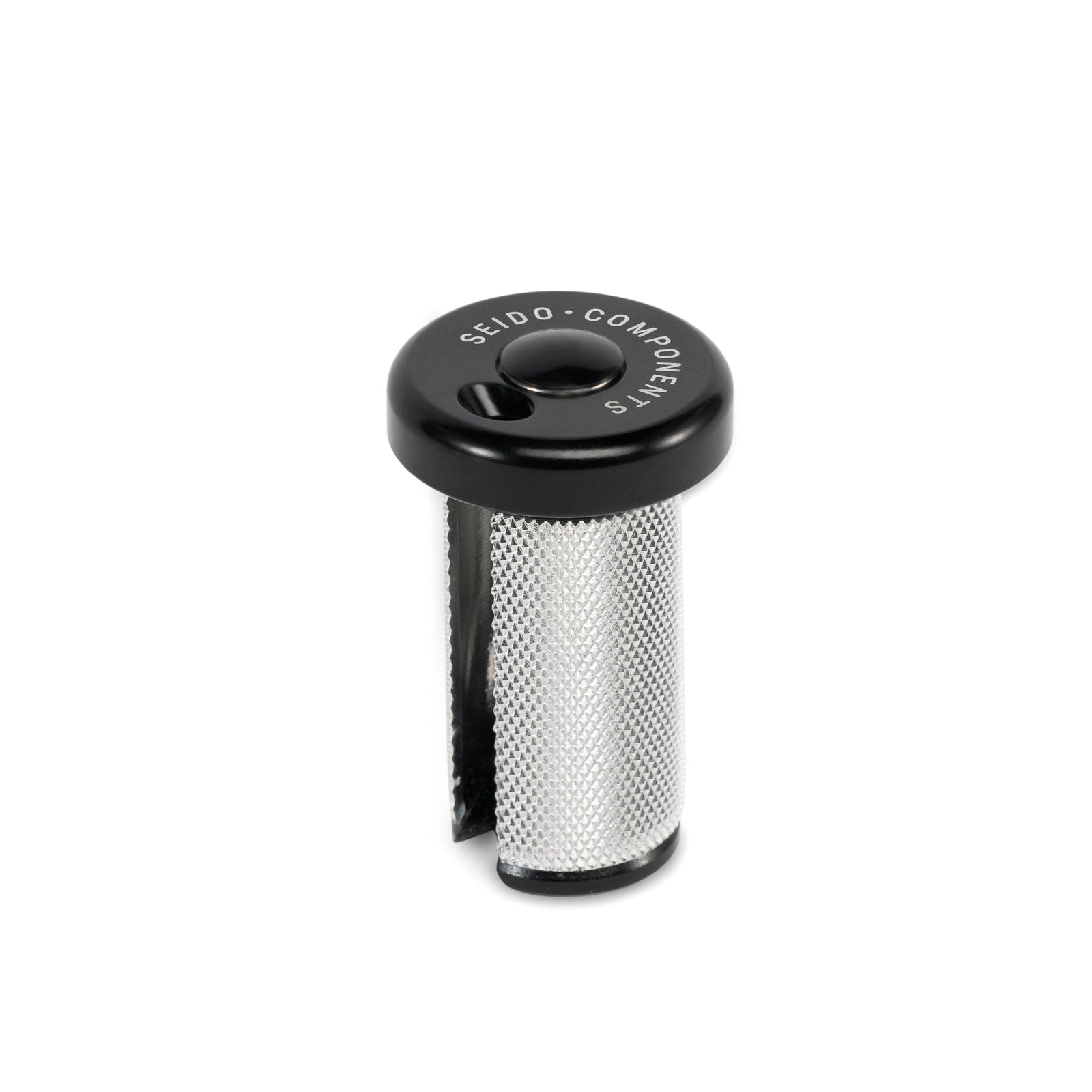

Through-Axle, Expander, Cable port plugs

WEIGHT
510 g
(w/o through axle, w/o bolts, uncut steerer)

TIRE CLEARANCE
47 - 622 (29" x 1.8") / 54 - 584 (27.5" x 2.1")

EXTRA INFO
Ready for fully internal cable routing

ASTM RIDING CONDITION
2

THROUGH-AXLE TYPE
12x100mm

TA TOTAL LENGTH (CLOSED)
120 mm

TA DIAMETER
12 mm

TA THREADING DIAMETER X PITCH
M12 x 1.5

MIN. THREAD LENGTH
14 mm

SAFETY NOTES / INSTRUCTIONS
