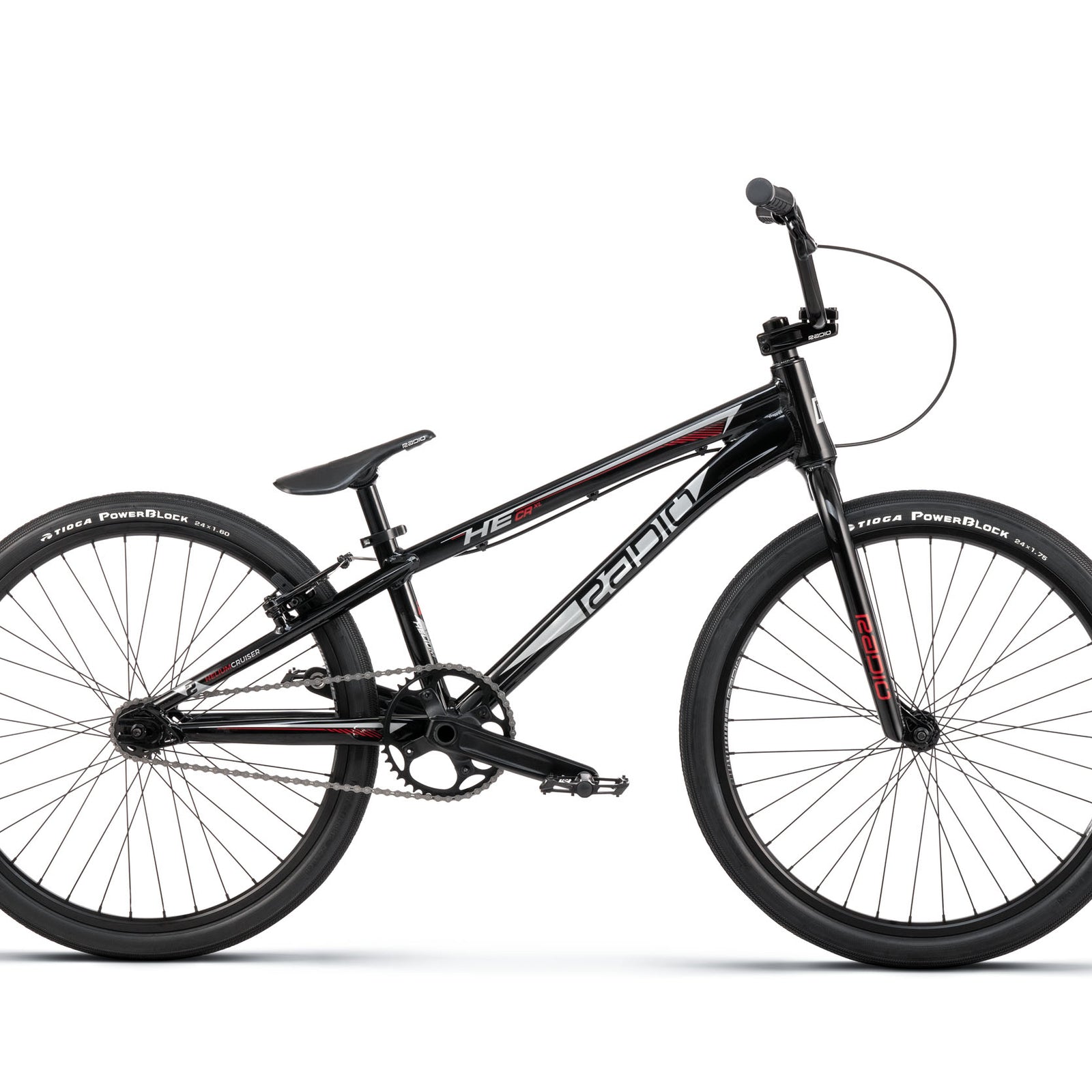

Radio Race HELIUM CRUISER Complete Bike 22"TT
£490.00
Click image to zoom
- FRAME: hydroformed 6061-T6 alloy frame, tapered headtube, forged dropouts, with int. chaintensioners
- FORK: crmo fork, 1-1/8" butted steerer, crmo fork legs, 30mm offset
- HANDLEBAR: 4130 crmo bar, seamless
- GRIPS: RADIO RACELINE "XENON" grips, diamond knurling, clamp on grip, 139mm length

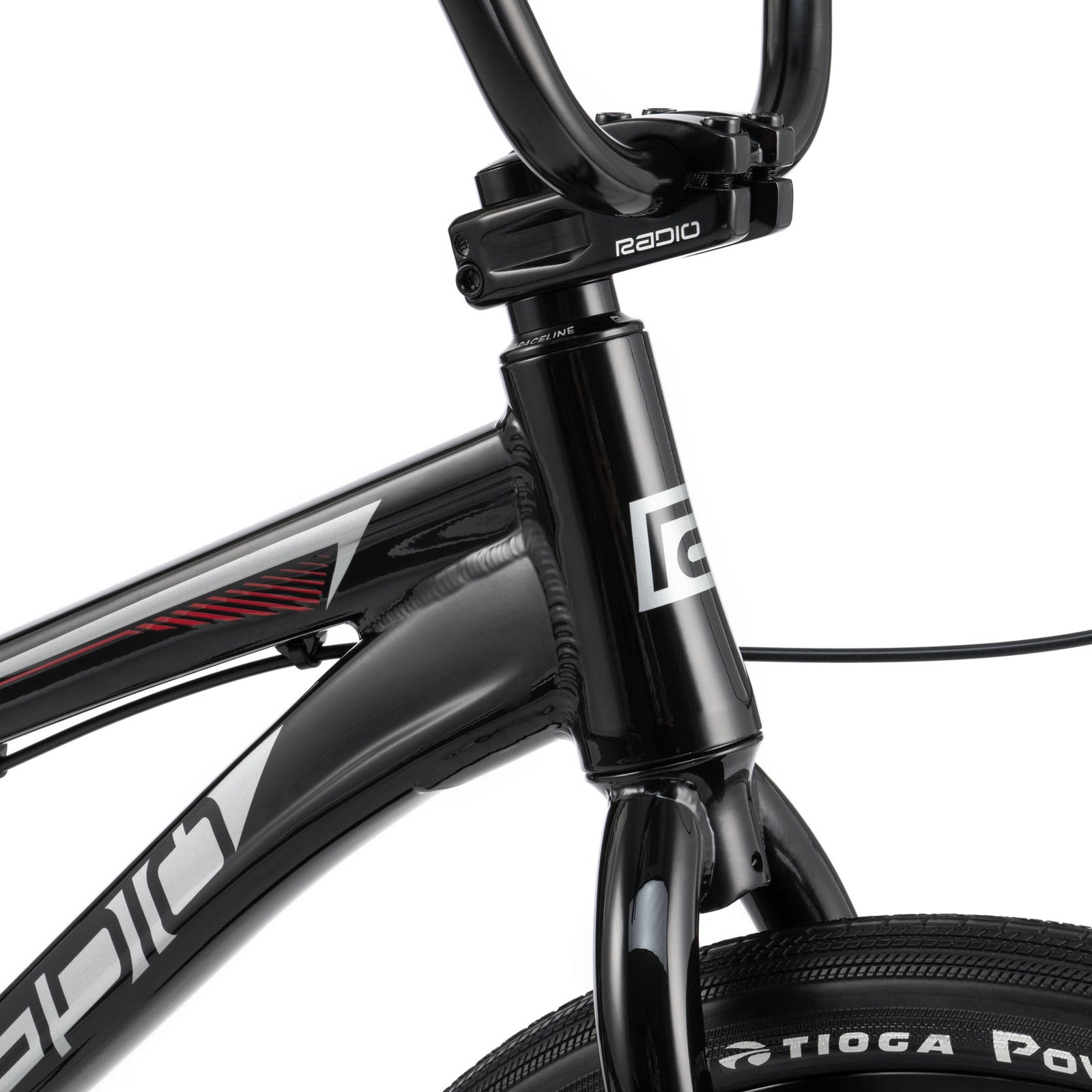

- STEM: RADIO RACELINE "XENON PRO" toploader stem, ext. 53mm, cold forged/cnc alloy
- HEADSET: RADIO RACELINE "PRO" integrated headset, sealed, threadless, 1-1/8" - 1.5", including fork crown race 1.5"-1 1/8" converter
- BRAKE LEVER: PROMAX "XL-373" brake lever, rear

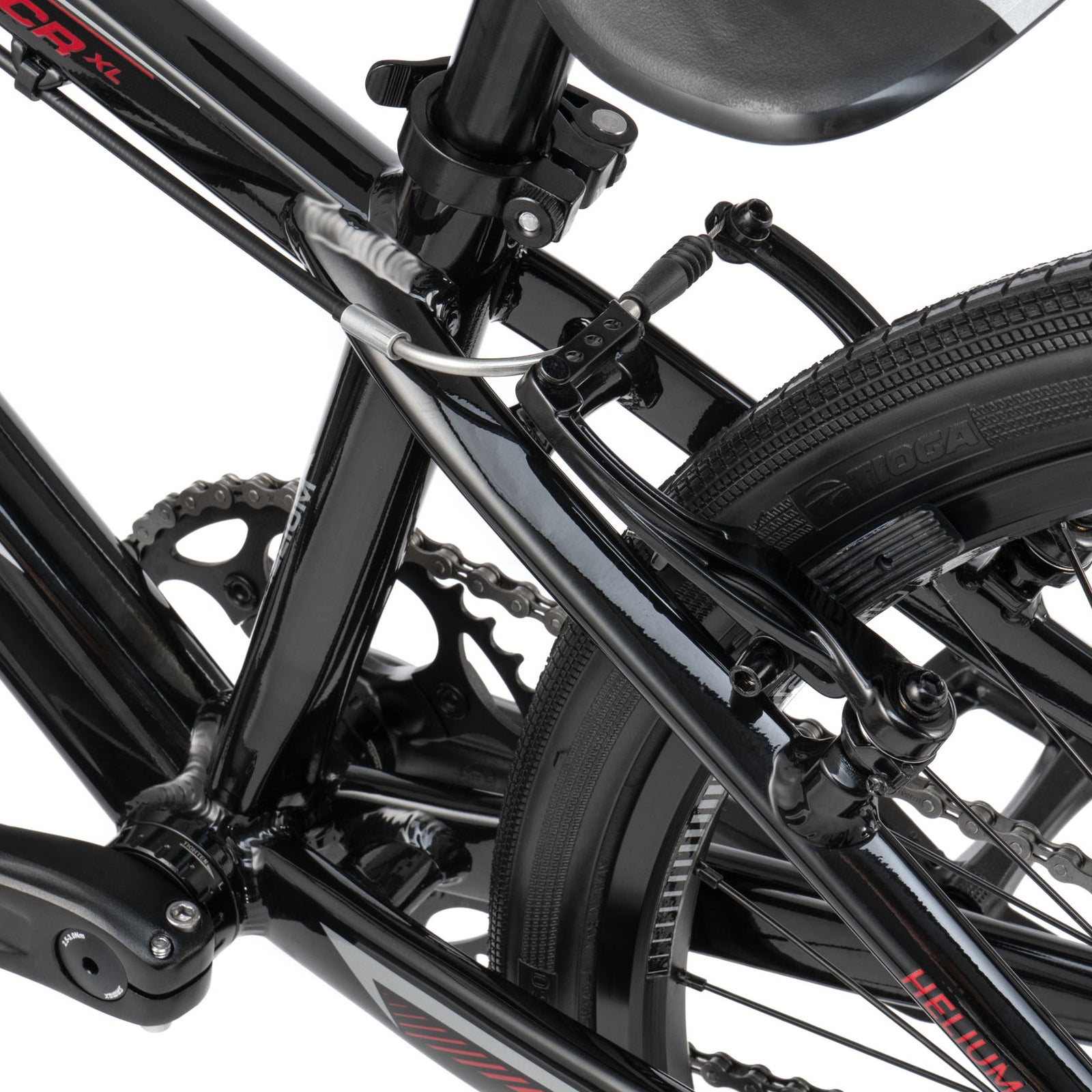

- BRAKE: PROMAX "TX-131" brake, rear

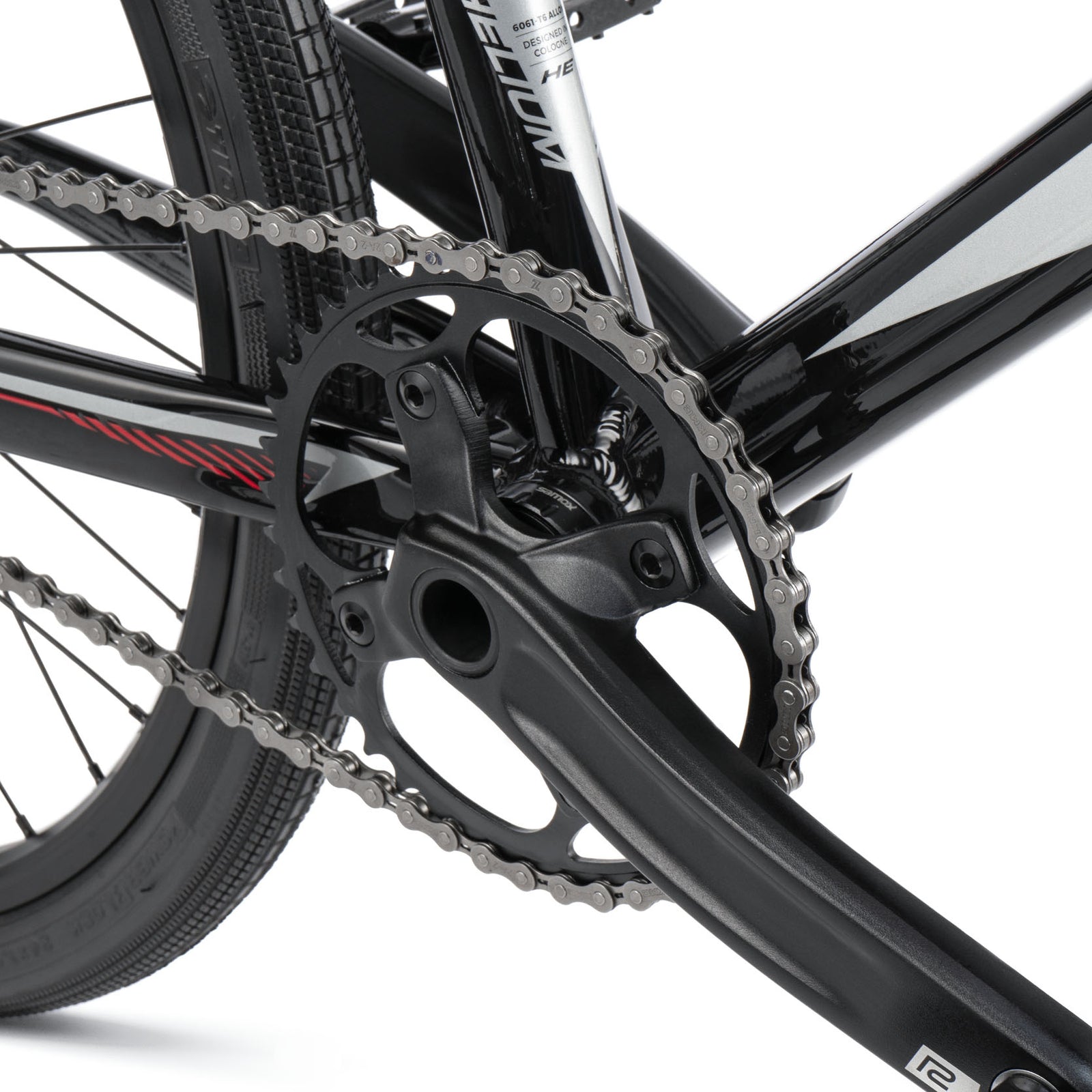

- CRANK: RADIO RACELINE, Xenon Pro, 2pc crank, cold forged/cnc, alloy, 180mm length, 24mm spindle
- BB: RADIO RACELINE "BSA24" bb set, external bearing cups, cnc machined, sealed
- PEDALS: RADIO RACELINE "XENON SLIM" pedal, alloy
- CHAIN: KMC "Z6" chain, 1/2" x 3/32"
- SPROCKET: RADIO RACELINE "XENON PRO" sprocket, 41T, alloy
- DRIVER: RADIO RACELINE driver, 16T, 1/2"- 3/32", sealed cassette
- FRONT HUB: RADIO RACELINE "XENON" front hub, alloy cnc, fully sealed, 36h, 3/8" crmo axle

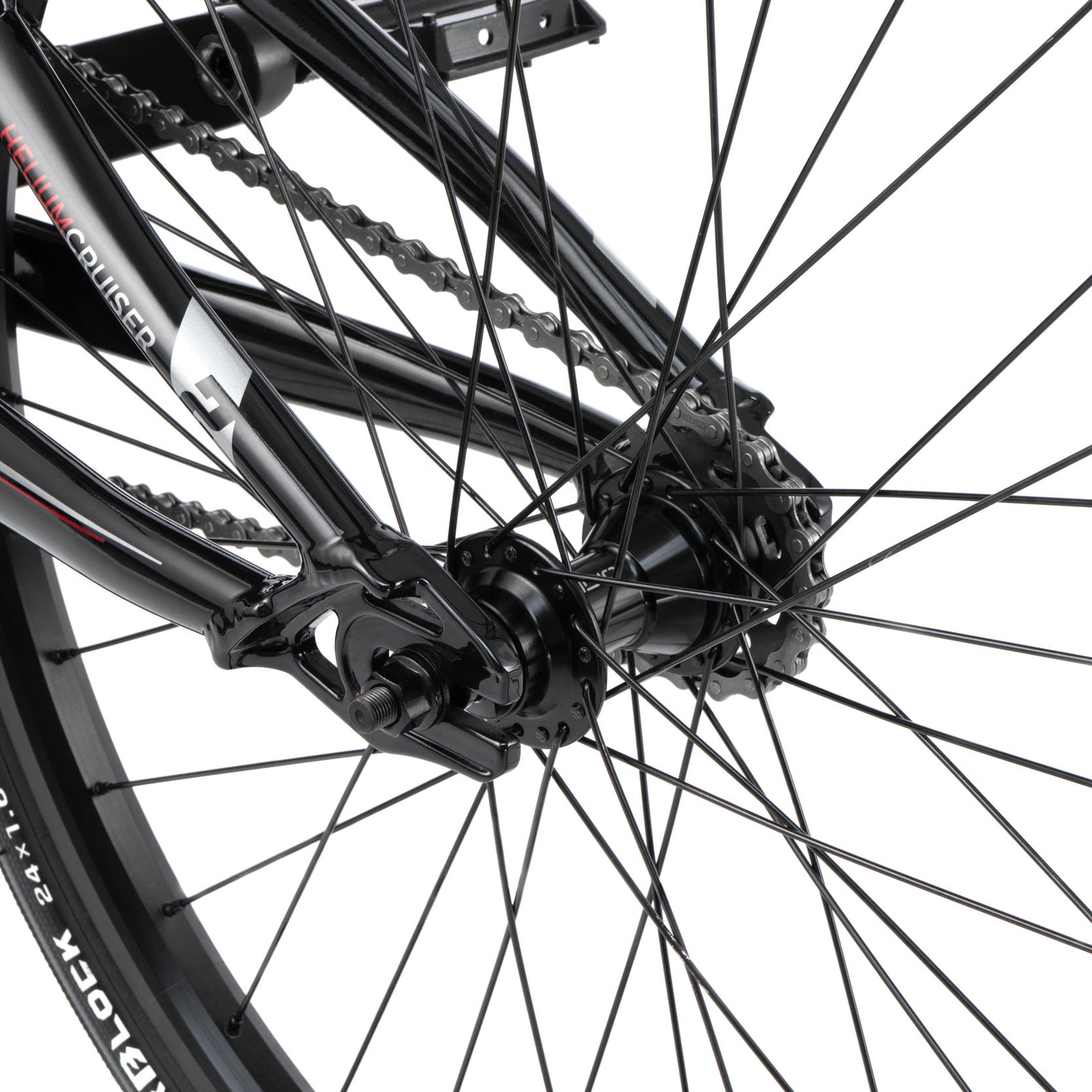

- REAR HUB: RADIO RACELINE "XENON" rear hub, alloy cnc, fully sealed, 36h, disc brake cassette, 3/8" crmo axle
- FRONT RIM: RADIO RACELINE "ARGON PRO" rim, sleeved joint, 36h, alloy
- REAR RIM: RADIO RACELINE "ARGON PRO" rim, sleeved joint, 36h, alloy

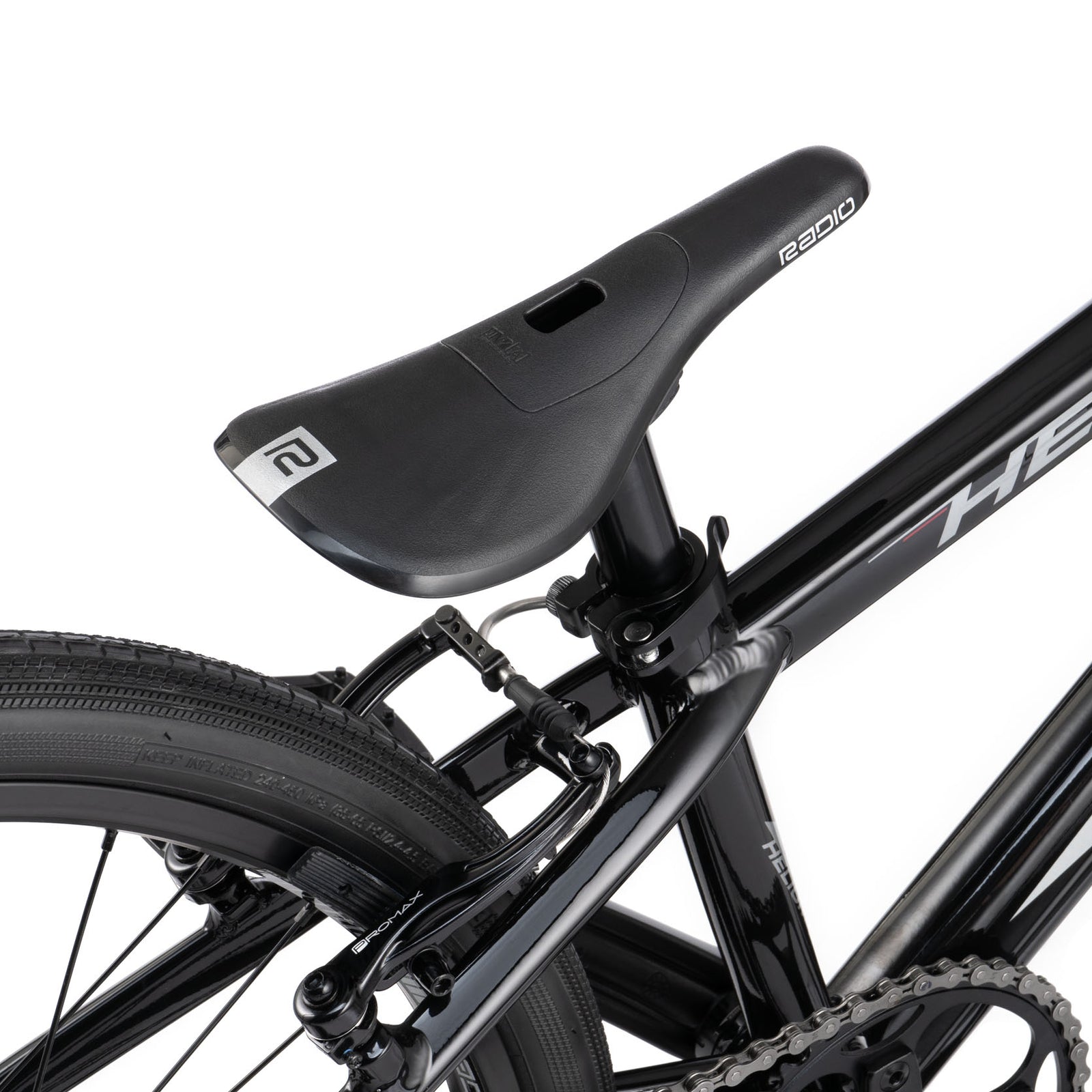

- SEAT: RADIO RACELINE "XENON" pivotal seat, no padding
- SEAT POST: RADIO RACELINE pivotal seat post, 27.2mm, alloy
- SEAT CLAMP: RADIO RACELINE "XENON" seat post, quick-release, alloy
- TIRES: RADIO RACELINE "OXYGEN" tires, front: 20" x 1.75" and rear: 20" x 1.6"
Weight: 10.24kg / 22.79lbs
Frame Geometry:
| Top Tube Length | 22" |
| Chain Stay Length | 15.15" |
| Head Tube Angle | 74° |
| Seat Tube Angle | 71° |
| Bottom Bracket Height | 12" |
Handlebar Geometry:
| Rise | 6.1" |
| Width | 26.75" |
| Backsweep | 8° |
| Upsweep | 2° |
Radio Race HELIUM CRUISER Complete Bike 22"TT
Product code:
A100016736
In Stock
£490.00
-
Description
- FRAME: hydroformed 6061-T6 alloy frame, tapered headtube, forged dropouts, with int. chaintensioners
- FORK: crmo fork, 1-1/8" butted steerer, crmo fork legs, 30mm offset
- HANDLEBAR: 4130 crmo bar, seamless
- GRIPS: RADIO RACELINE "XENON" grips, diamond knurling, clamp on grip, 139mm length
- STEM: RADIO RACELINE "XENON PRO" toploader stem, ext. 53mm, cold forged/cnc alloy
- HEADSET: RADIO RACELINE "PRO" integrated headset, sealed, threadless, 1-1/8" - 1.5", including fork crown race 1.5"-1 1/8" converter
- BRAKE LEVER: PROMAX "XL-373" brake lever, rear
- BRAKE: PROMAX "TX-131" brake, rear
- CRANK: RADIO RACELINE, Xenon Pro, 2pc crank, cold forged/cnc, alloy, 180mm length, 24mm spindle
- BB: RADIO RACELINE "BSA24" bb set, external bearing cups, cnc machined, sealed
- PEDALS: RADIO RACELINE "XENON SLIM" pedal, alloy
- CHAIN: KMC "Z6" chain, 1/2" x 3/32"
- SPROCKET: RADIO RACELINE "XENON PRO" sprocket, 41T, alloy
- DRIVER: RADIO RACELINE driver, 16T, 1/2"- 3/32", sealed cassette
- FRONT HUB: RADIO RACELINE "XENON" front hub, alloy cnc, fully sealed, 36h, 3/8" crmo axle
- REAR HUB: RADIO RACELINE "XENON" rear hub, alloy cnc, fully sealed, 36h, disc brake cassette, 3/8" crmo axle
- FRONT RIM: RADIO RACELINE "ARGON PRO" rim, sleeved joint, 36h, alloy
- REAR RIM: RADIO RACELINE "ARGON PRO" rim, sleeved joint, 36h, alloy
- SEAT: RADIO RACELINE "XENON" pivotal seat, no padding
- SEAT POST: RADIO RACELINE pivotal seat post, 27.2mm, alloy
- SEAT CLAMP: RADIO RACELINE "XENON" seat post, quick-release, alloy
- TIRES: RADIO RACELINE "OXYGEN" tires, front: 20" x 1.75" and rear: 20" x 1.6"
Weight: 10.24kg / 22.79lbs
Frame Geometry:
Top Tube Length 22" Chain Stay Length 15.15" Head Tube Angle 74° Seat Tube Angle 71° Bottom Bracket Height 12" Handlebar Geometry:
Rise 6.1" Width 26.75" Backsweep 8° Upsweep 2°
