Geometry

• Actual Top Tube Length: 22.5″ (571.5mm) & 22.8″ (579mm)
• Effective Top Tube Length: 23.35″ (596mm) & 23.8″ (605mm)
• Chainstay Length: 15″ (381mm)
• Standover Height: 13″ (330.3mm)
• Head Tube Angle: 69.5°
• Seat Tube Angle: 68°
• Bottom Bracket Height: 18mm drop

Features

• Tubing: 6061-T6 alloy RADIO SIGNATURE Hydroformed butted tube set, tapered head tube, forged yoke

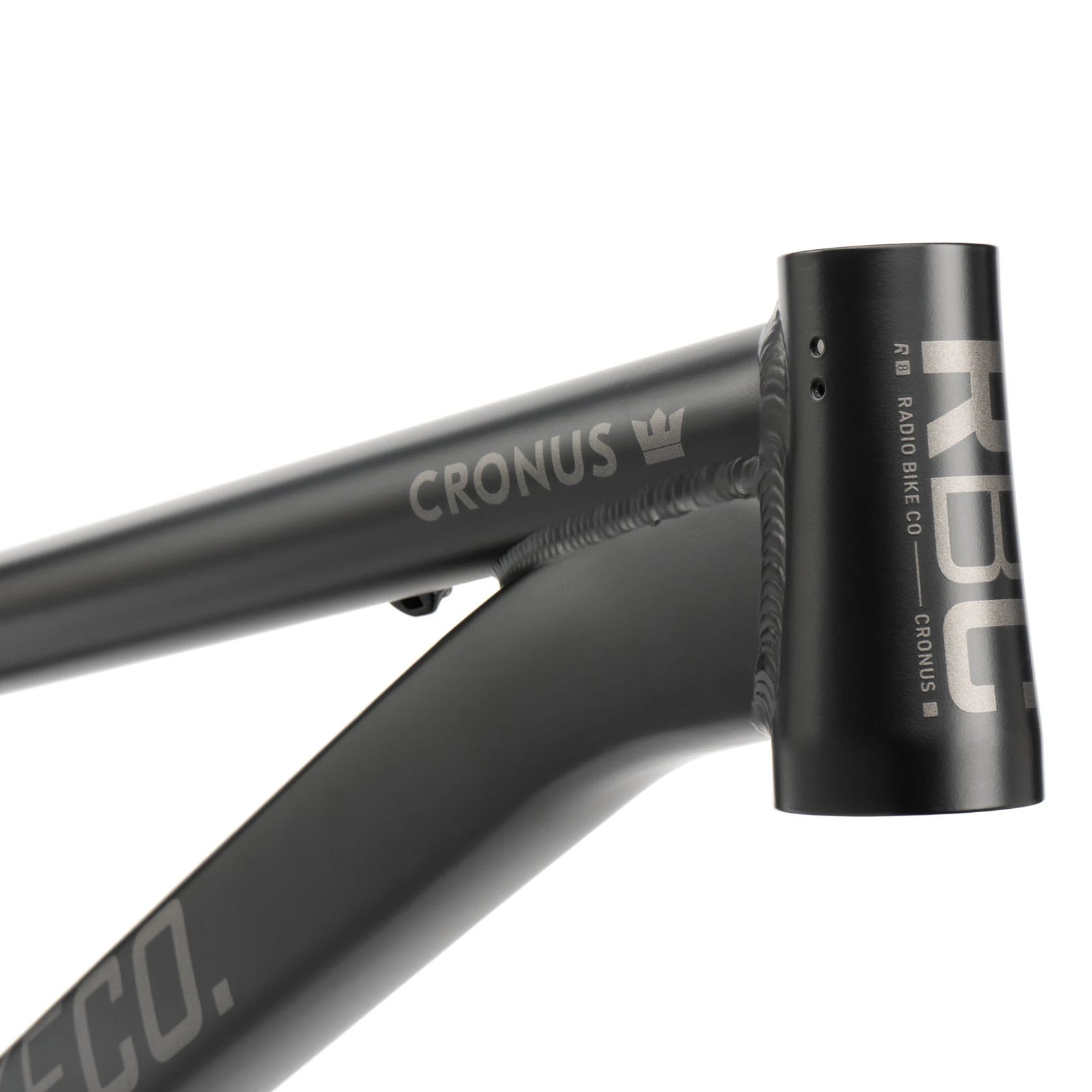

• Headtube: cnc machined, 1 1/8” to 1.5” tapered, 115mm tall, drilled for gyro/rotor tabs
• Headset: Tapered Integrated Headset (1.5" / 1 1/8") IS42 & IS52
• Gyro/Rotor Tabs: included

• Crank stopper system: A bolt of your choice (plastic or steel bolt) can push on the bottom bracket sleeve to keep your pedals in place while leaving your pedals mid air

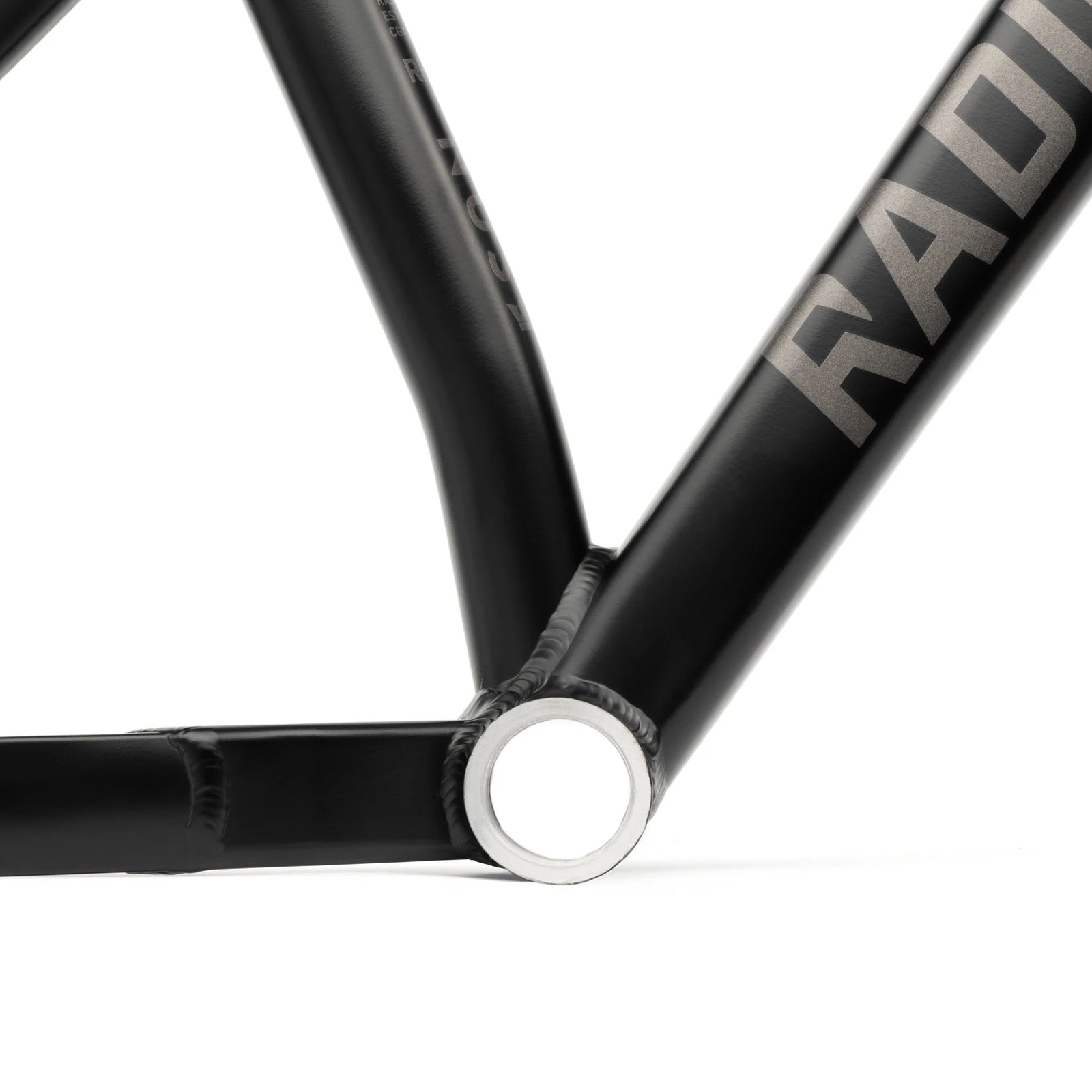

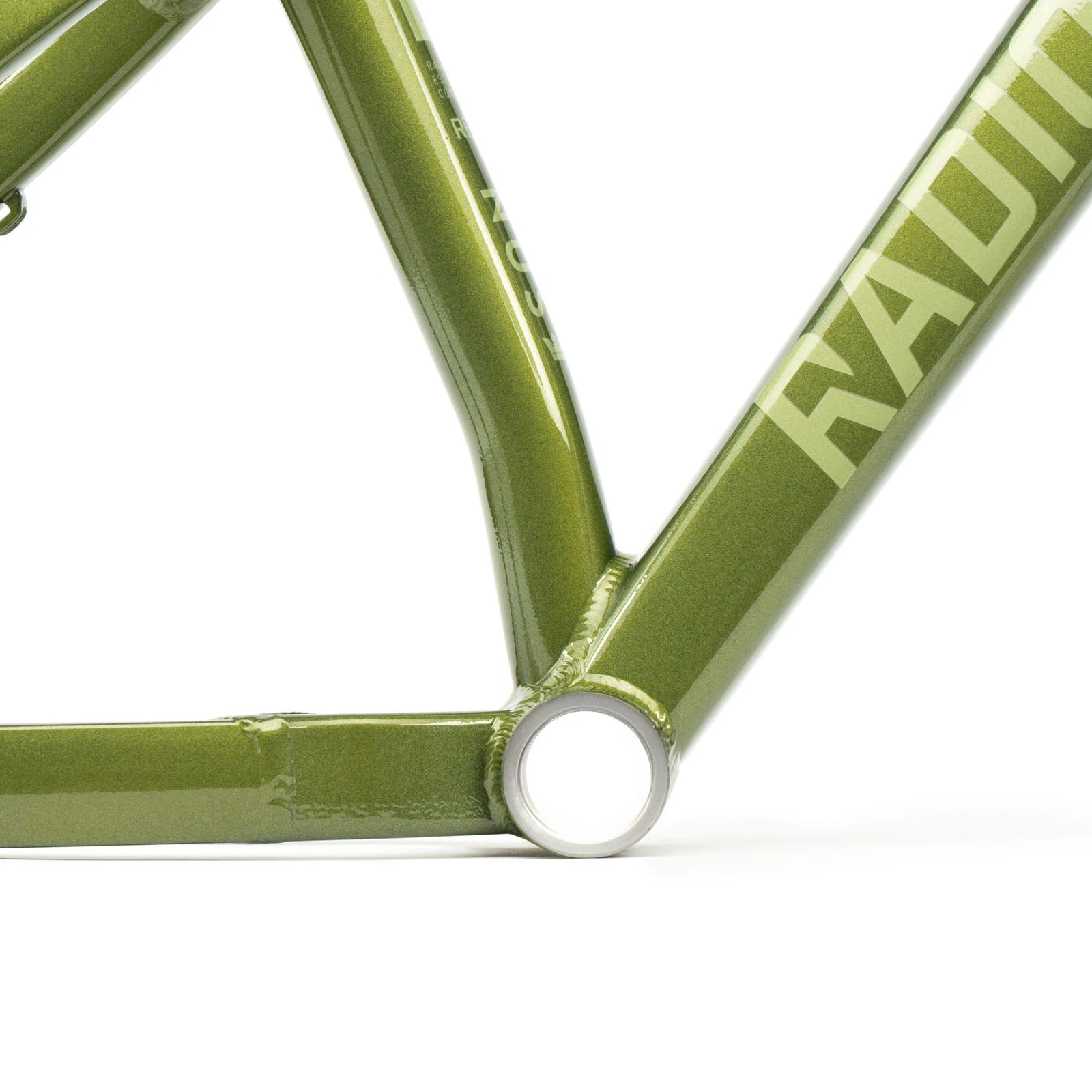

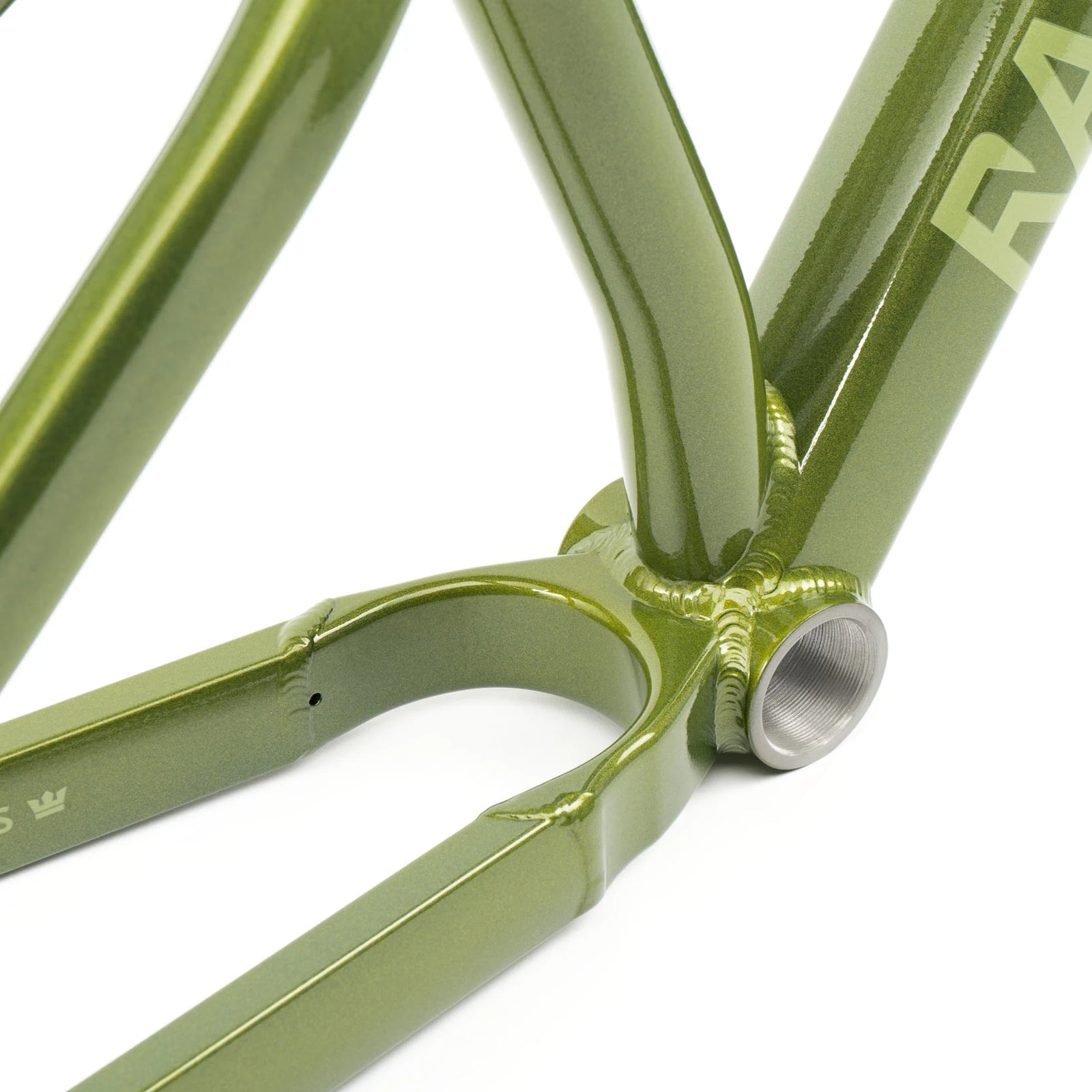

• Bottom Bracket: cnc machined and heat-treated BSA bb, width: 73mm

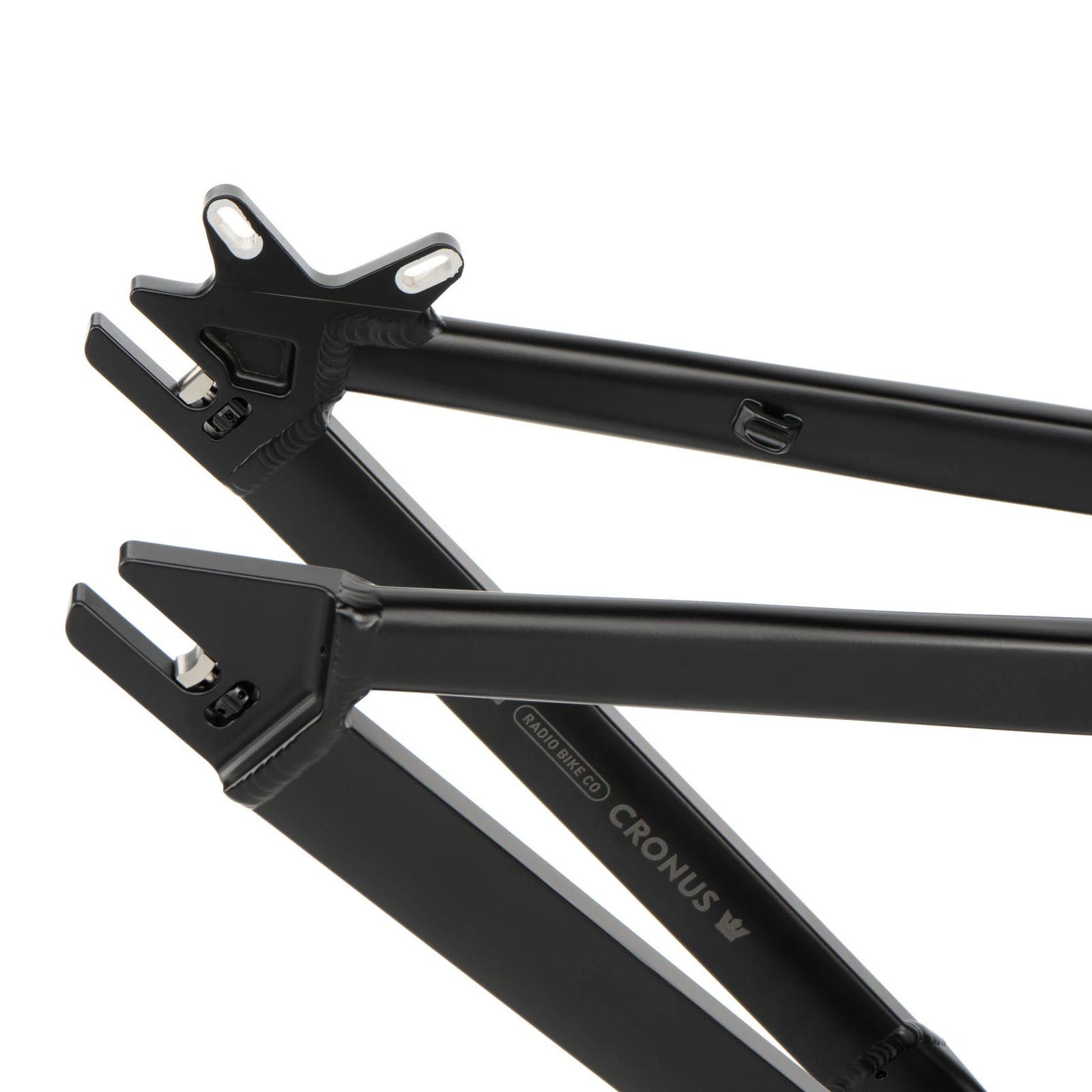

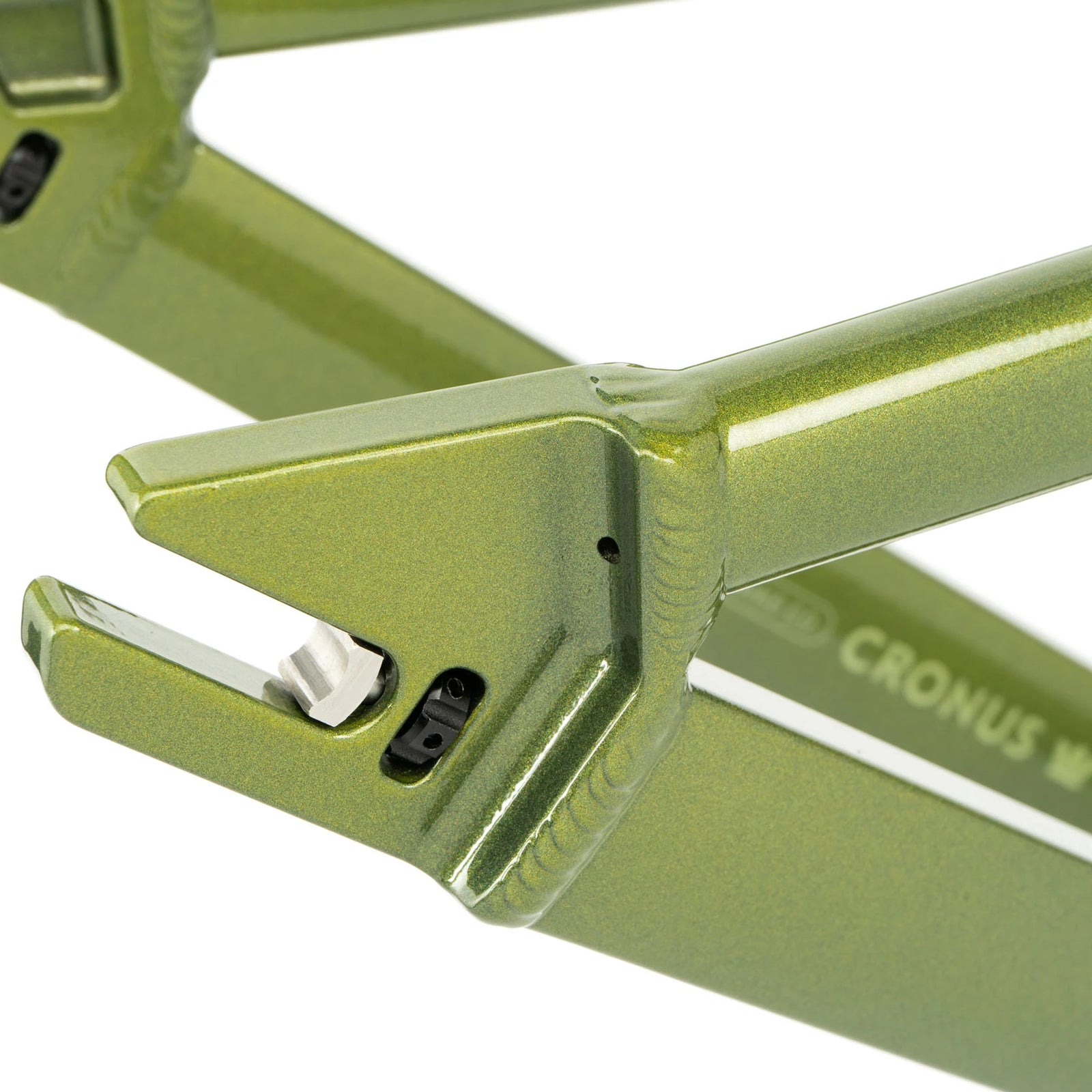

• Dropouts: forged, 135mm OLD, 10mm slots, 8mm thick, integrated chain tensioners, IS disc brake mount
• Weight: 1.98kg (4.37lbs, 22.5″)

Please note: The crank stopper system is only supposed to be used in riding situations, when the rotation of the cranks needs to be slowed down for certain tricks. In normal riding situations/ pedalling, the crank stopper bolt should not be tightned. The bolt is supposed to apply pressure on the bottom bracket sleeve, and NOT straight to the crank axle. Please check your BB sleeve regulary on damages. We are not liable for any damages on the cranks due to the crank stopper system.
