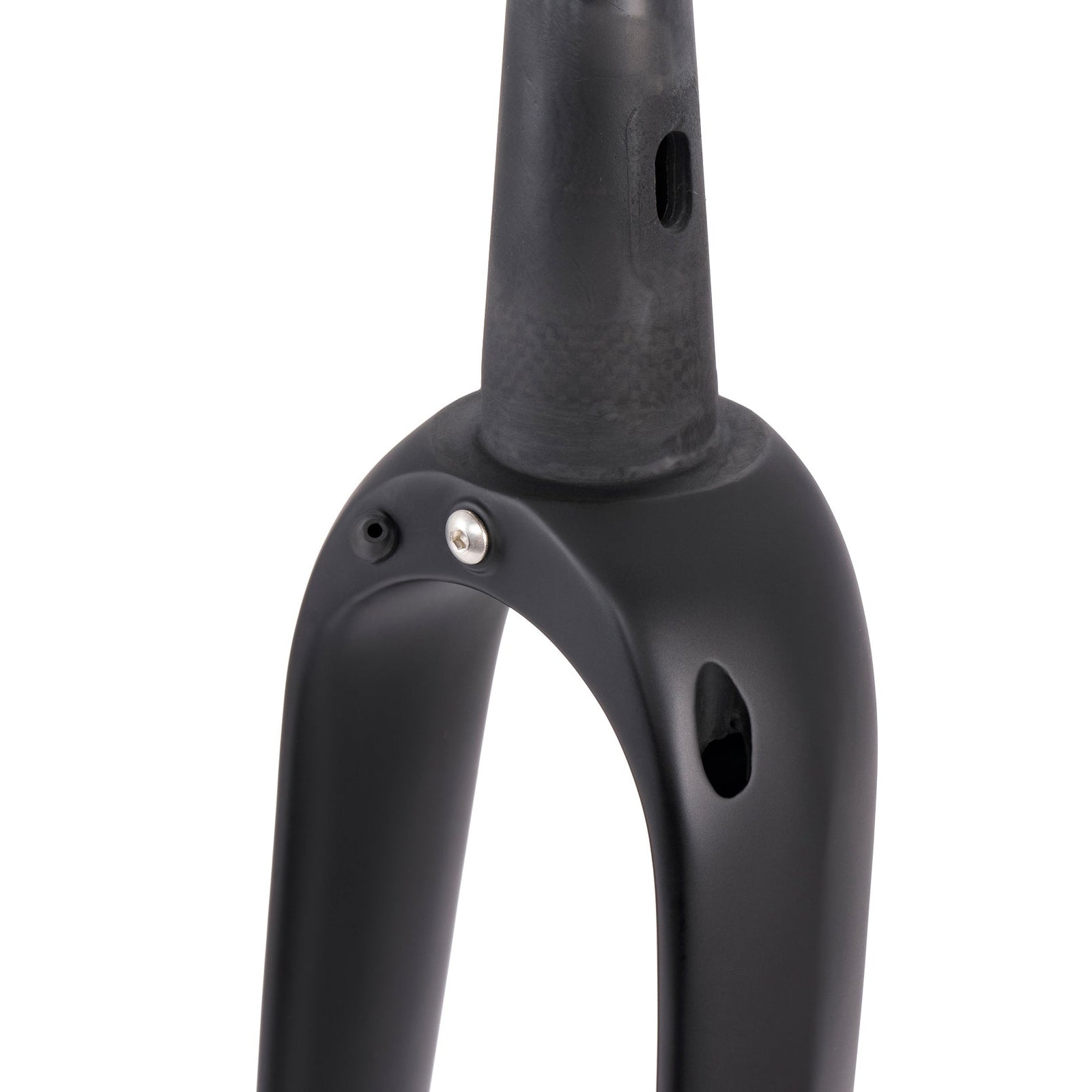

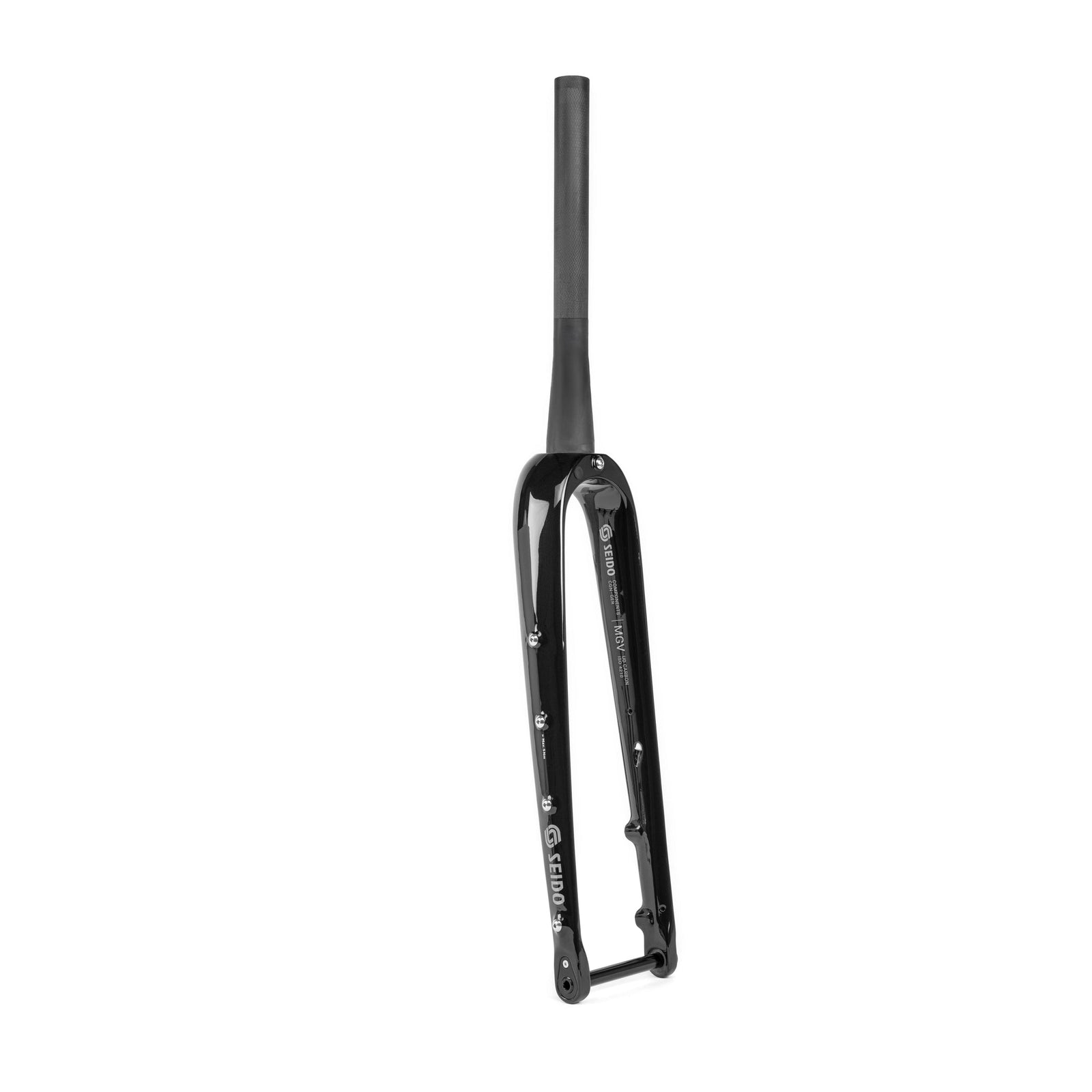

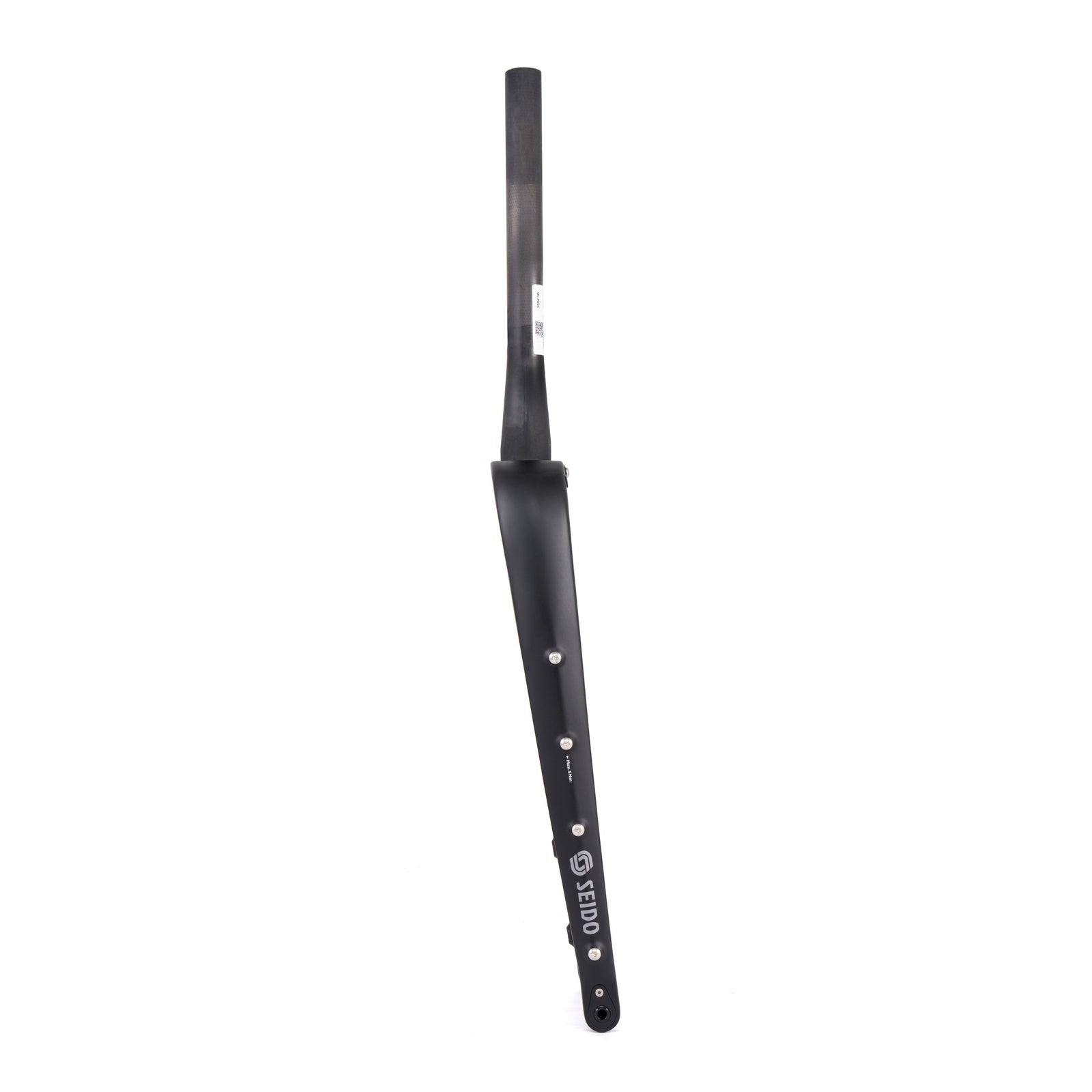

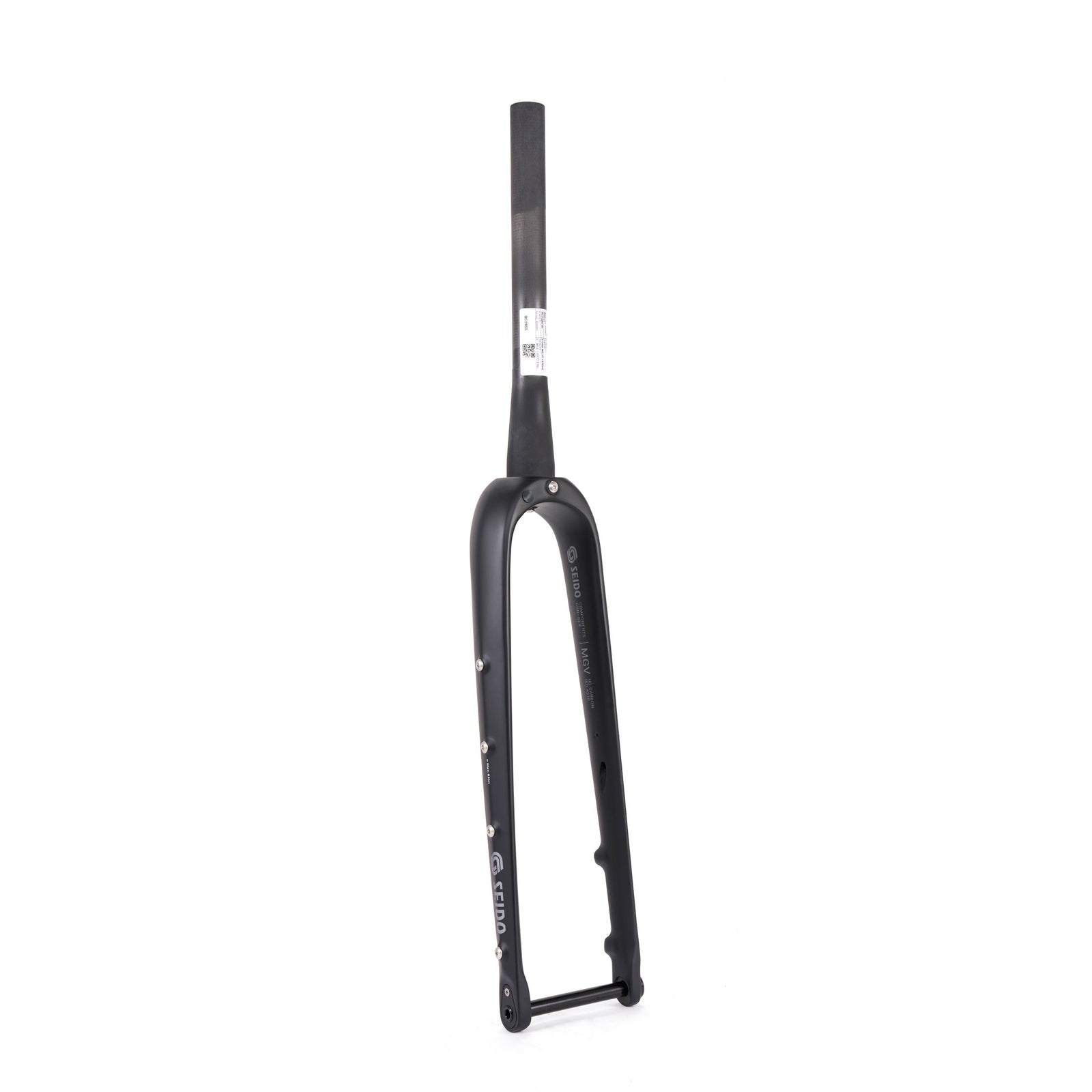

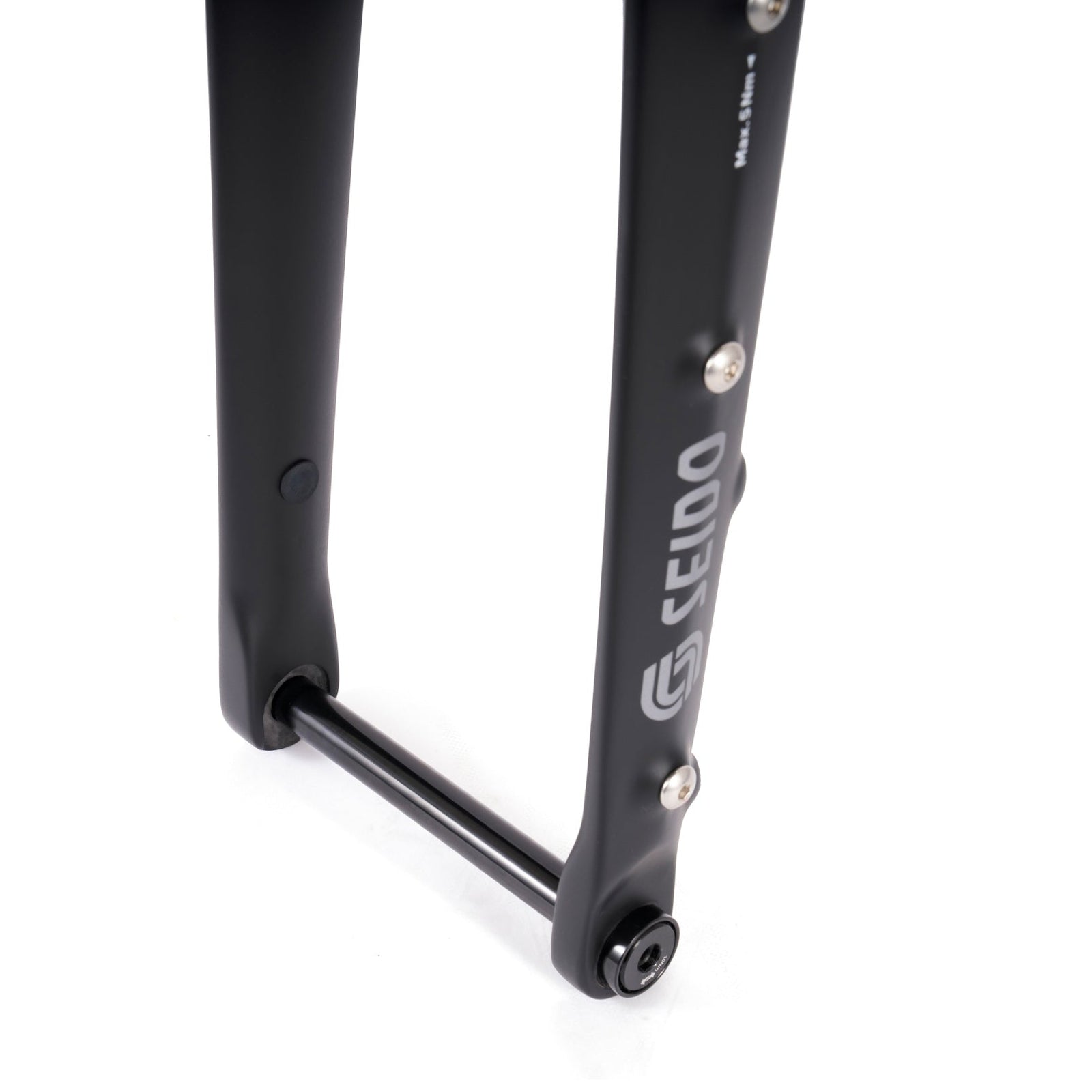

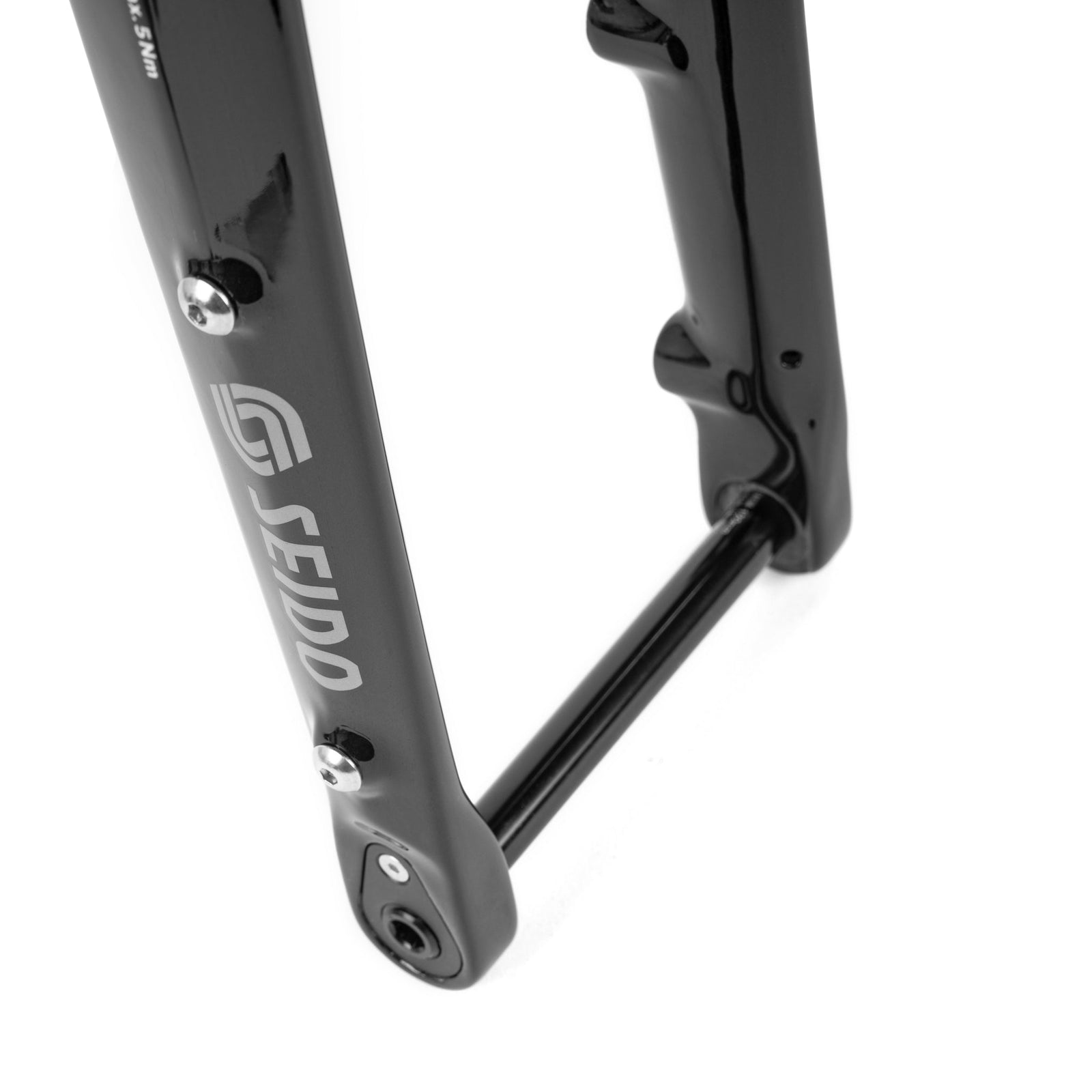

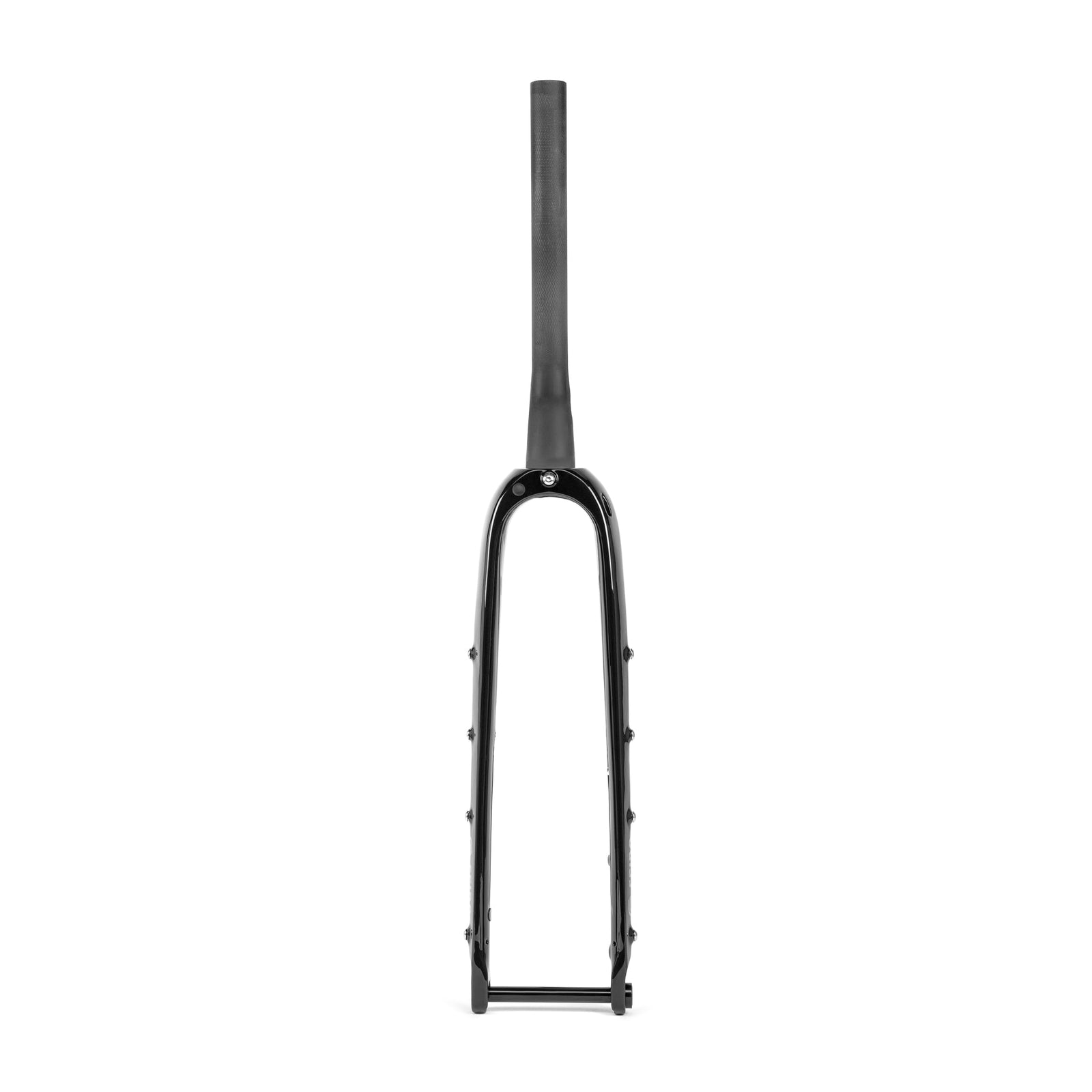

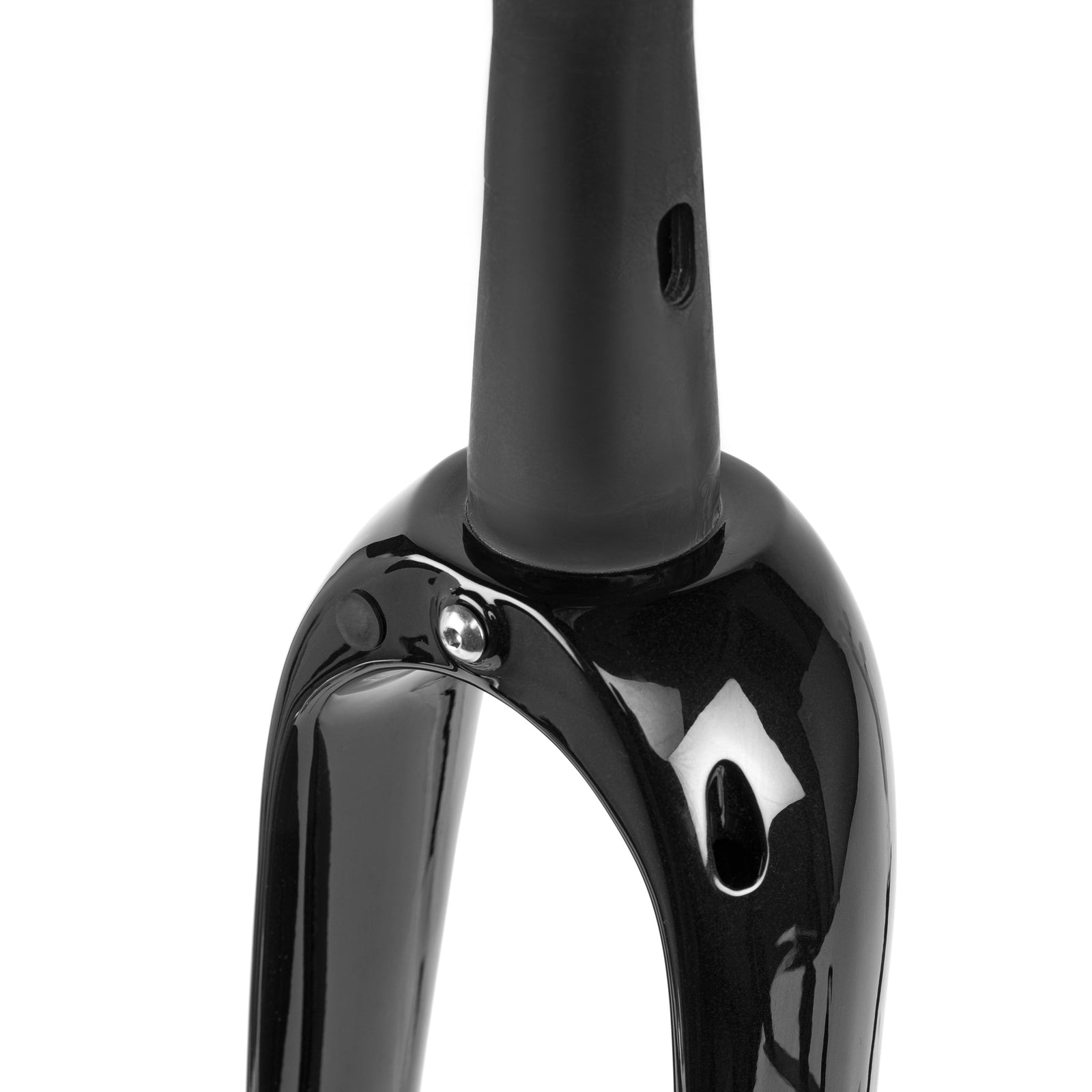

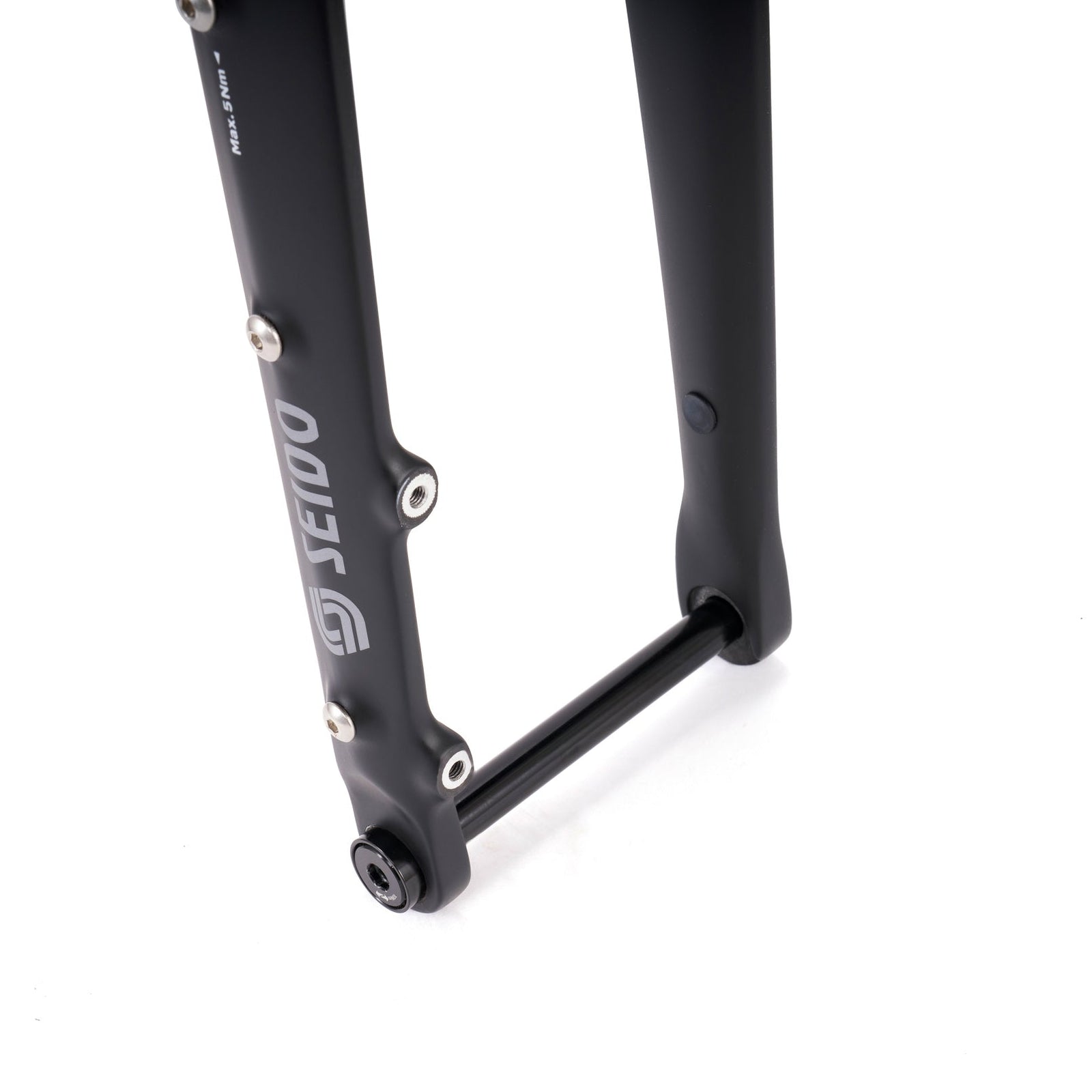

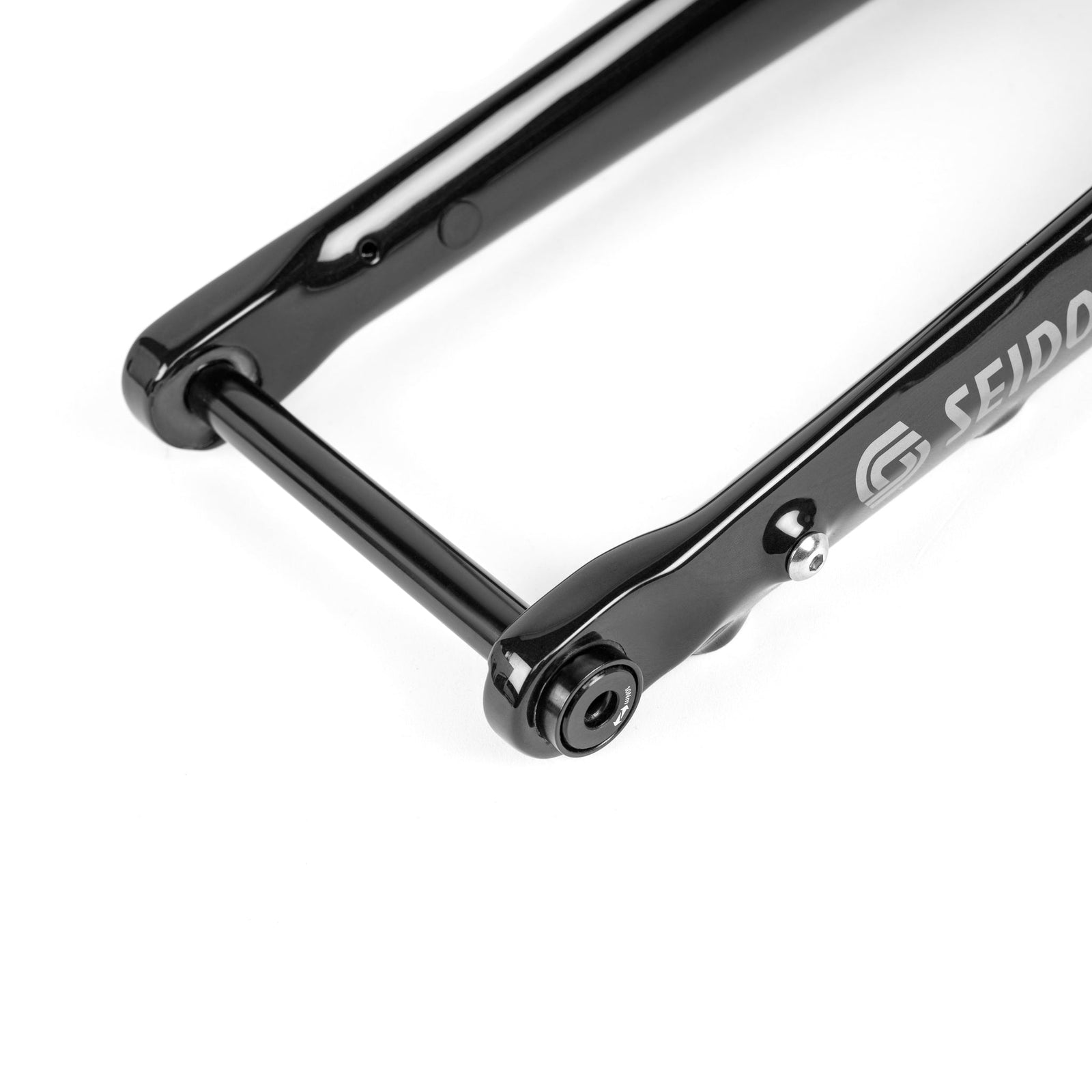

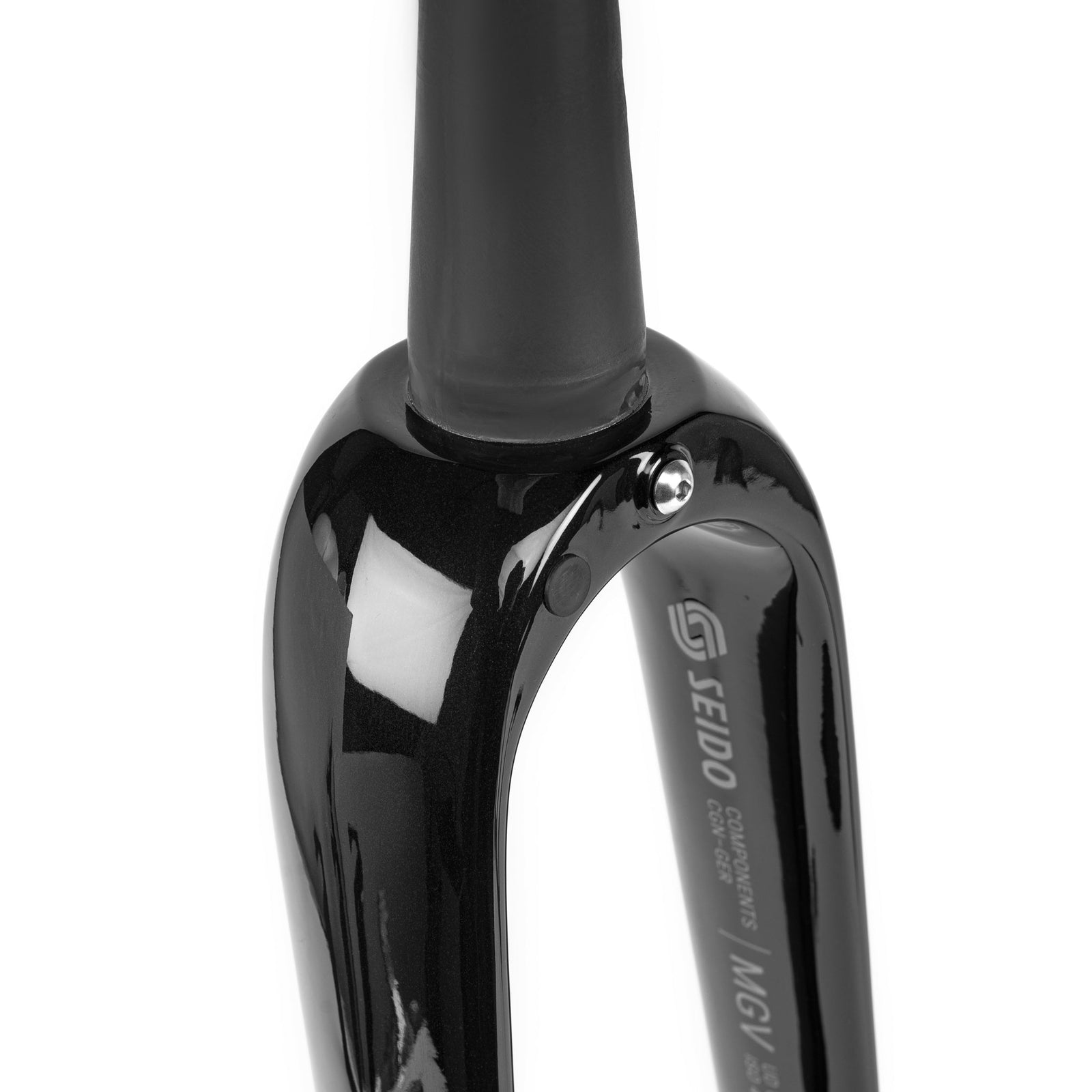

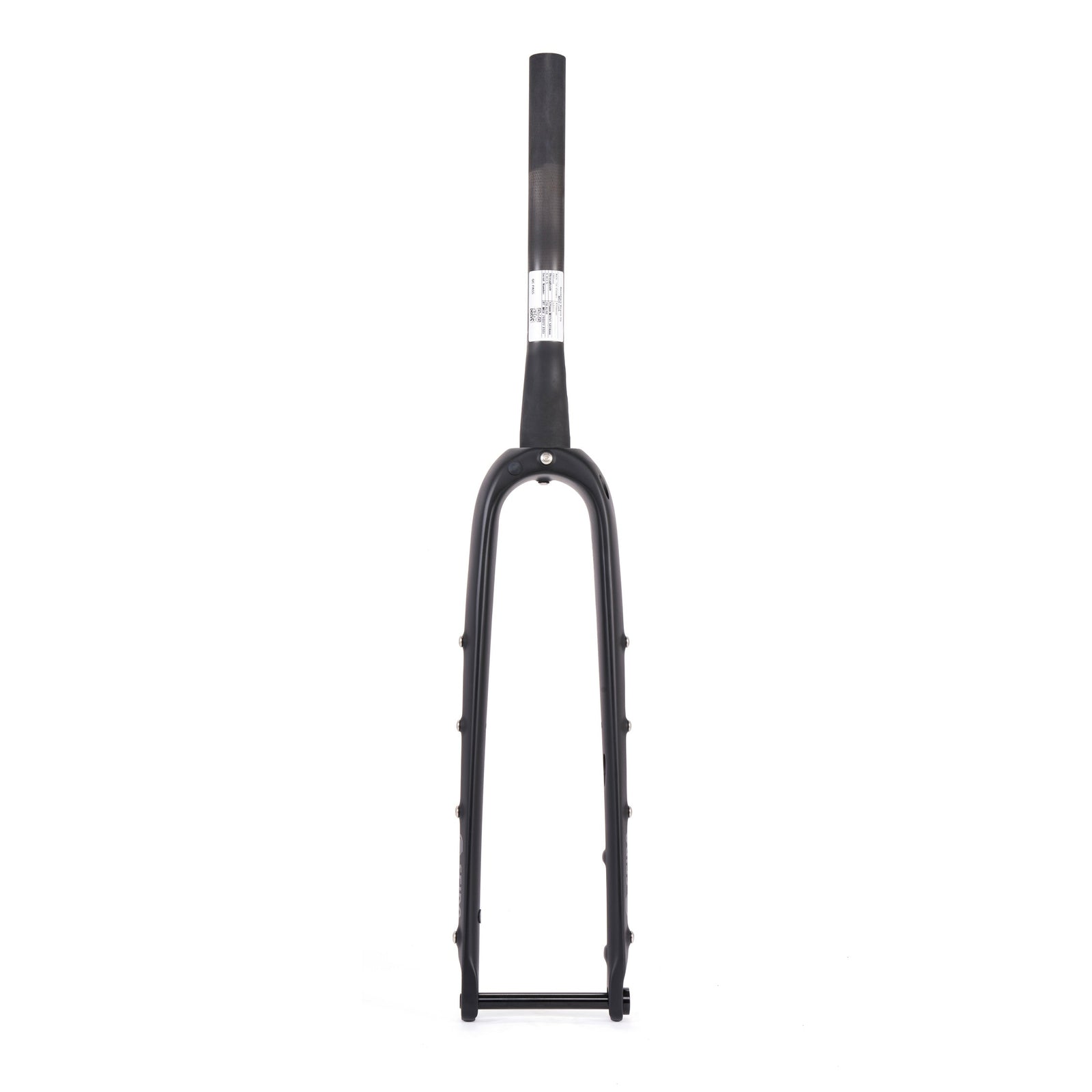

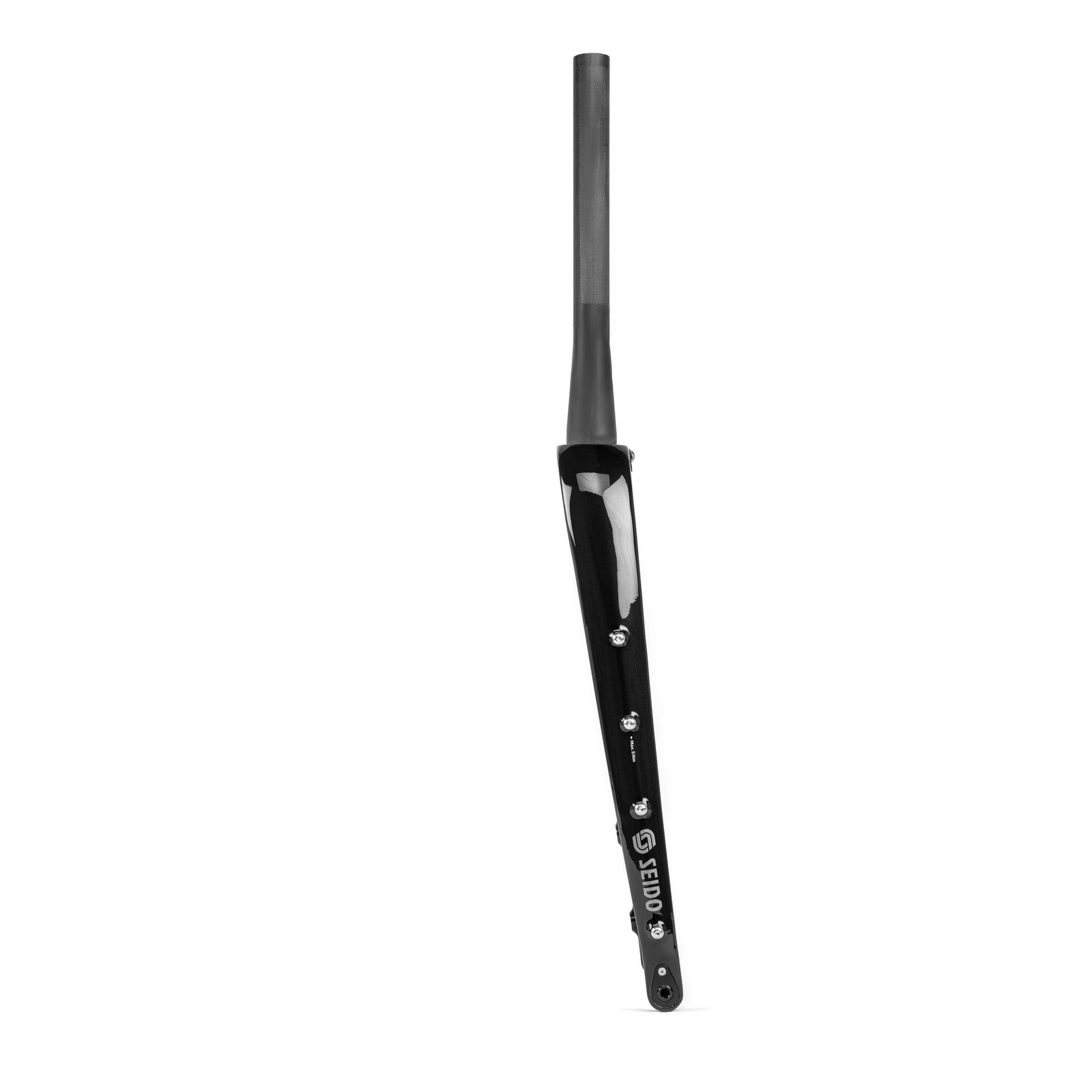

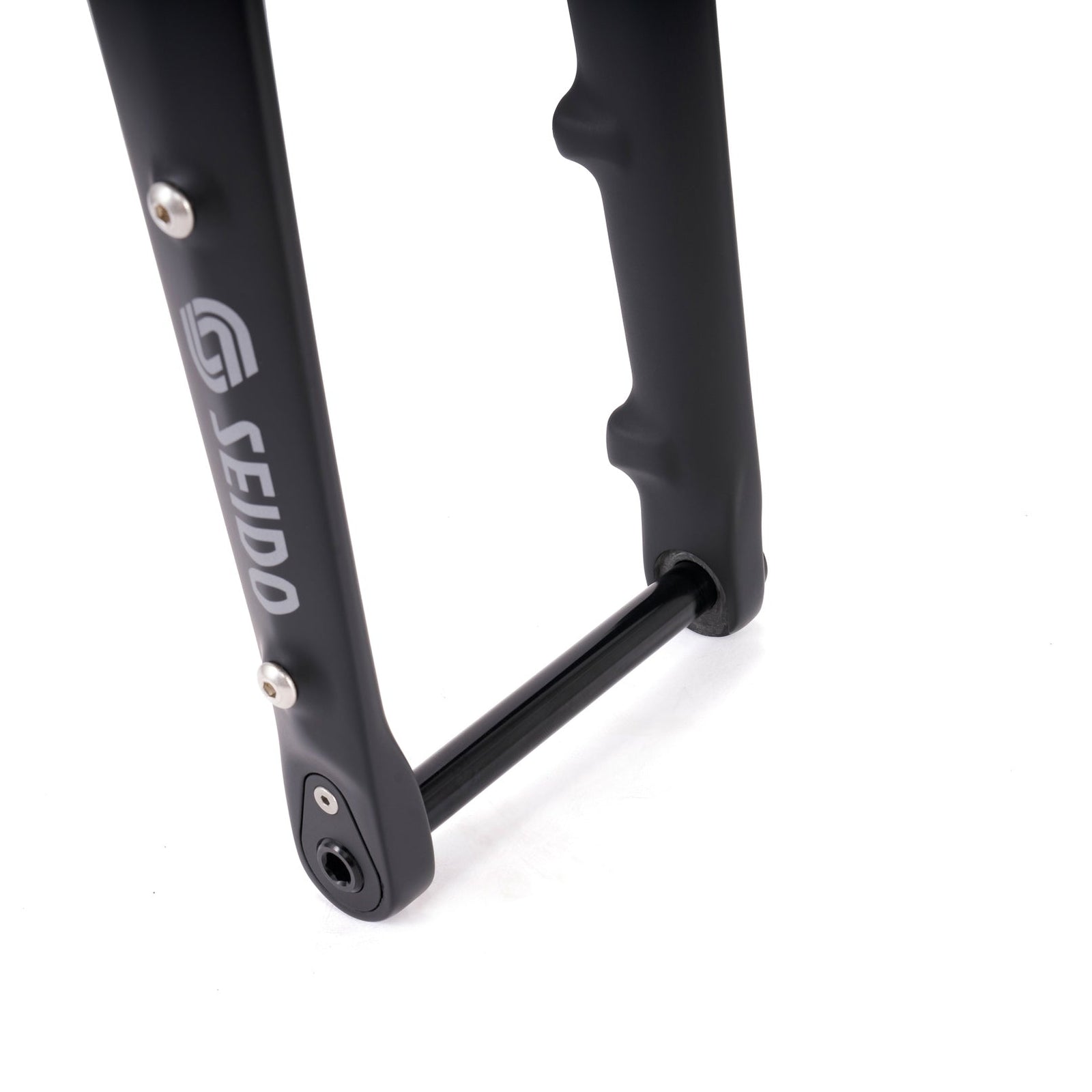

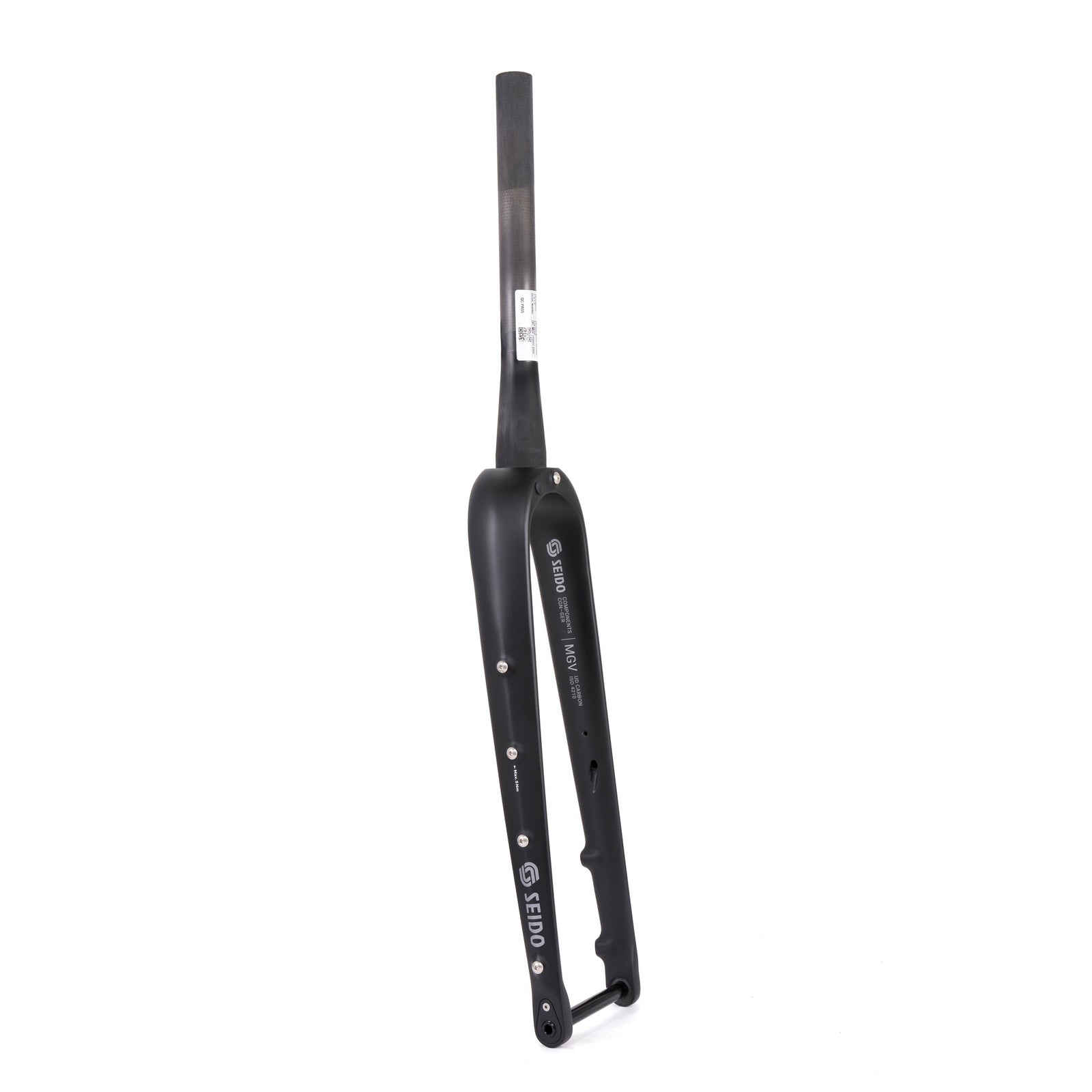

The MGV is a lightweight full carbon gravel and adventure fork designed for riders who need strength, versatility, and wide tire clearance. Built with innovative carbon construction, it combines low weight with the ability to carry a lowrider pannier rack and up to 20 kg of luggage – making it an excellent choice for gravel, bikepacking, and long-distance touring setups. With clearance for 29 x 2.25” or 27.5 x 2.5” tires, multiple mounting points, and full internal routing options, this fork is built to handle demanding off-road adventures.

Key Features

• Lightweight UD carbon fiber construction

• Tire clearance up to 29 x 2.25” / 27.5 x 2.5”

• Lowrider rack mounts, triple cage mounts, fender and light mounts

• Internal routing for brake hose and dynamo cable

• Flat Mount disc brake (160–180 mm rotors)

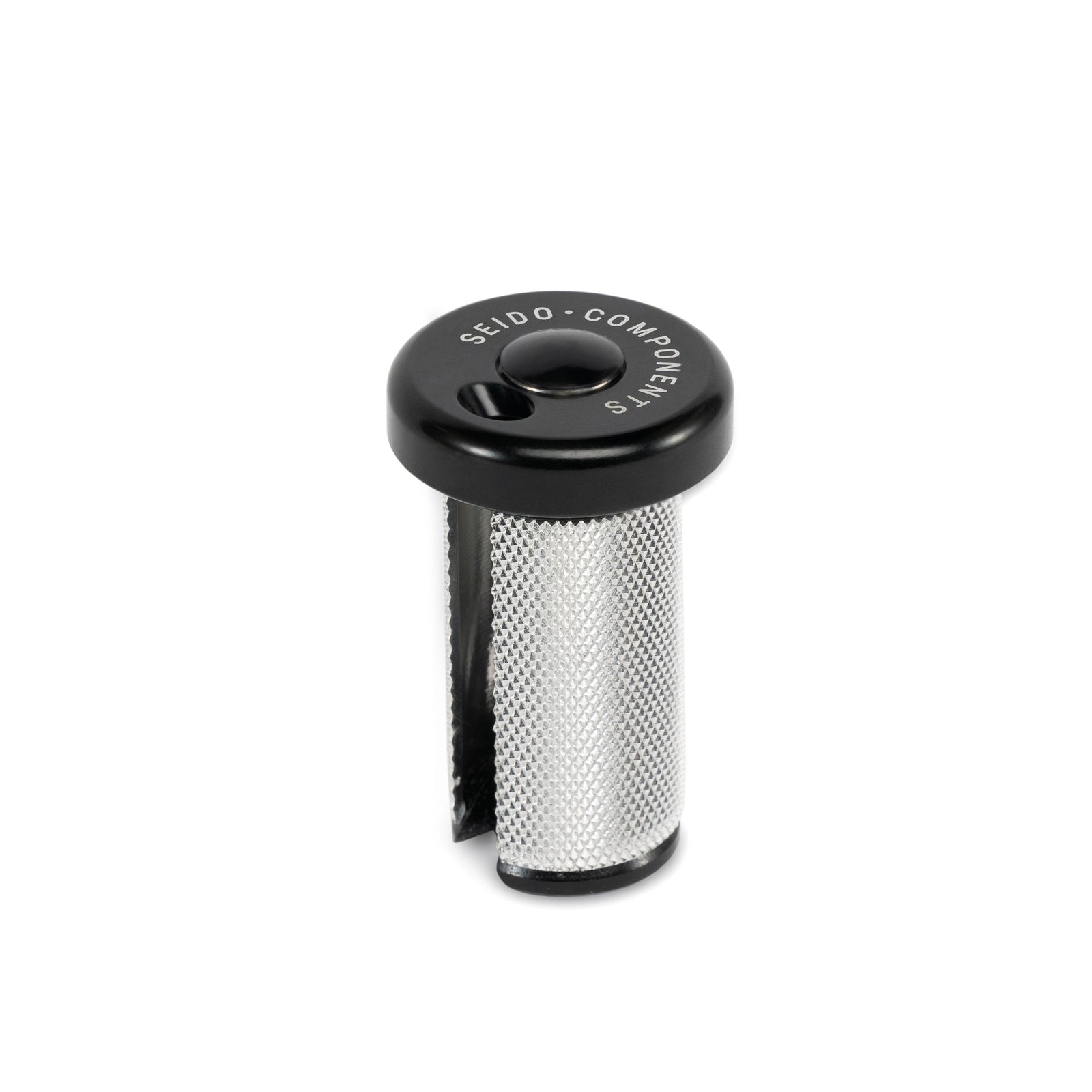

• Includes through axle, expander, and cable port plugs

• Maximum system weight: 140 kg

Technical Specifications

• Color: Matt black / Glossy black

• Material: Full UD carbon fiber

• Steerer: 1-1/8” – 1-1/2” tapered, 300 mm length

• Offset: 53 mm

• Axle to Crown: 410 mm

• Hub Spacing: 12 x 100 mm

• Brake Mount: Flat Mount 160 (160–180 mm rotor)

• Weight: 530 g (uncut steerer, w/o axle & bolts)

• Crown Diameter: 57 mm

• ASTM Rating: Category 2 (gravel/adventure use)

Important Notes

The cargo cage mounts are designed for dynamic riding loads. Avoid leaning the bike with cages against hard surfaces or striking obstacles, as this can generate forces beyond the rated limits. When installing cages, ensure they sit flush within 5 mm of the mounting bolt; in some cases, washers may be required.
