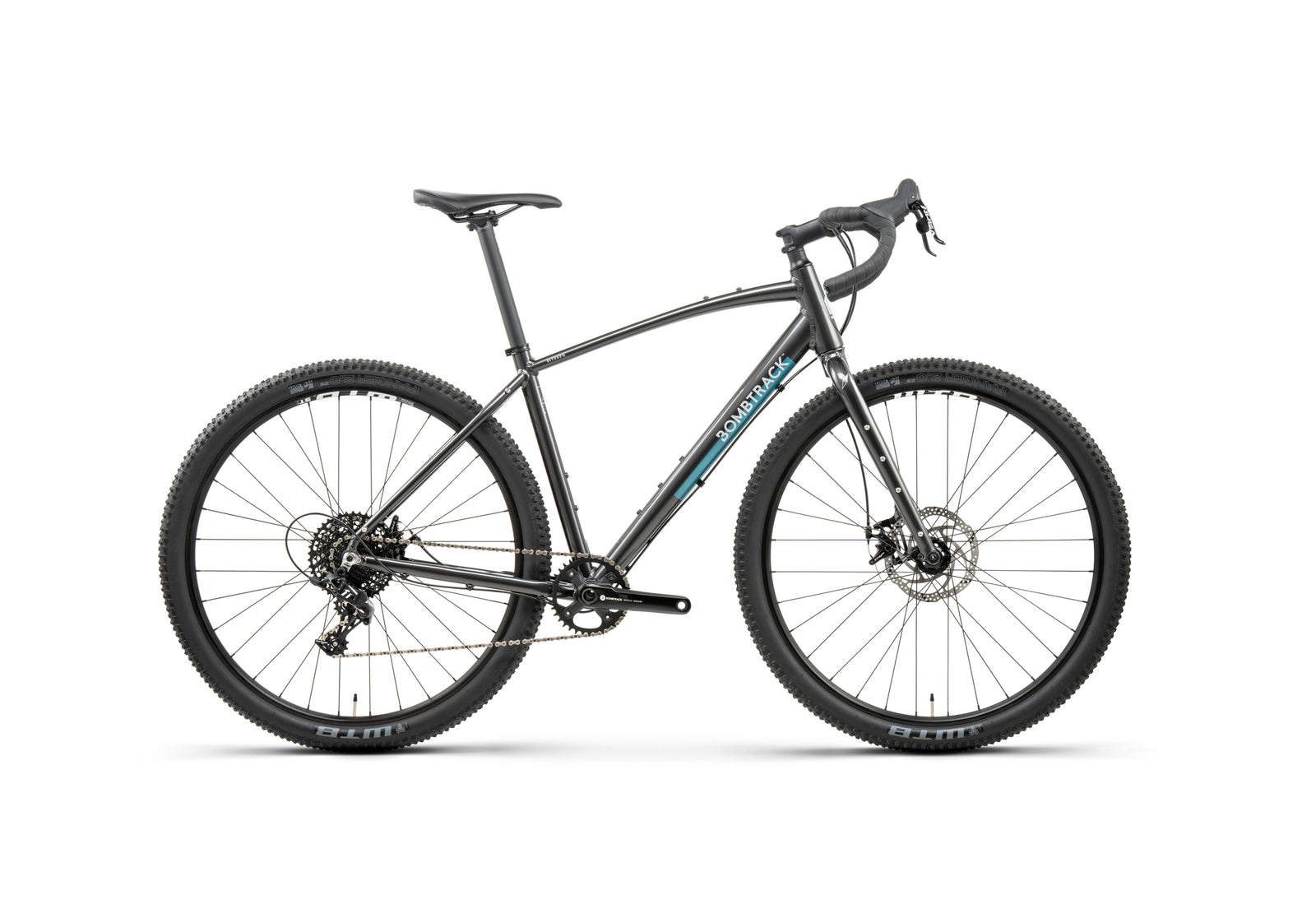

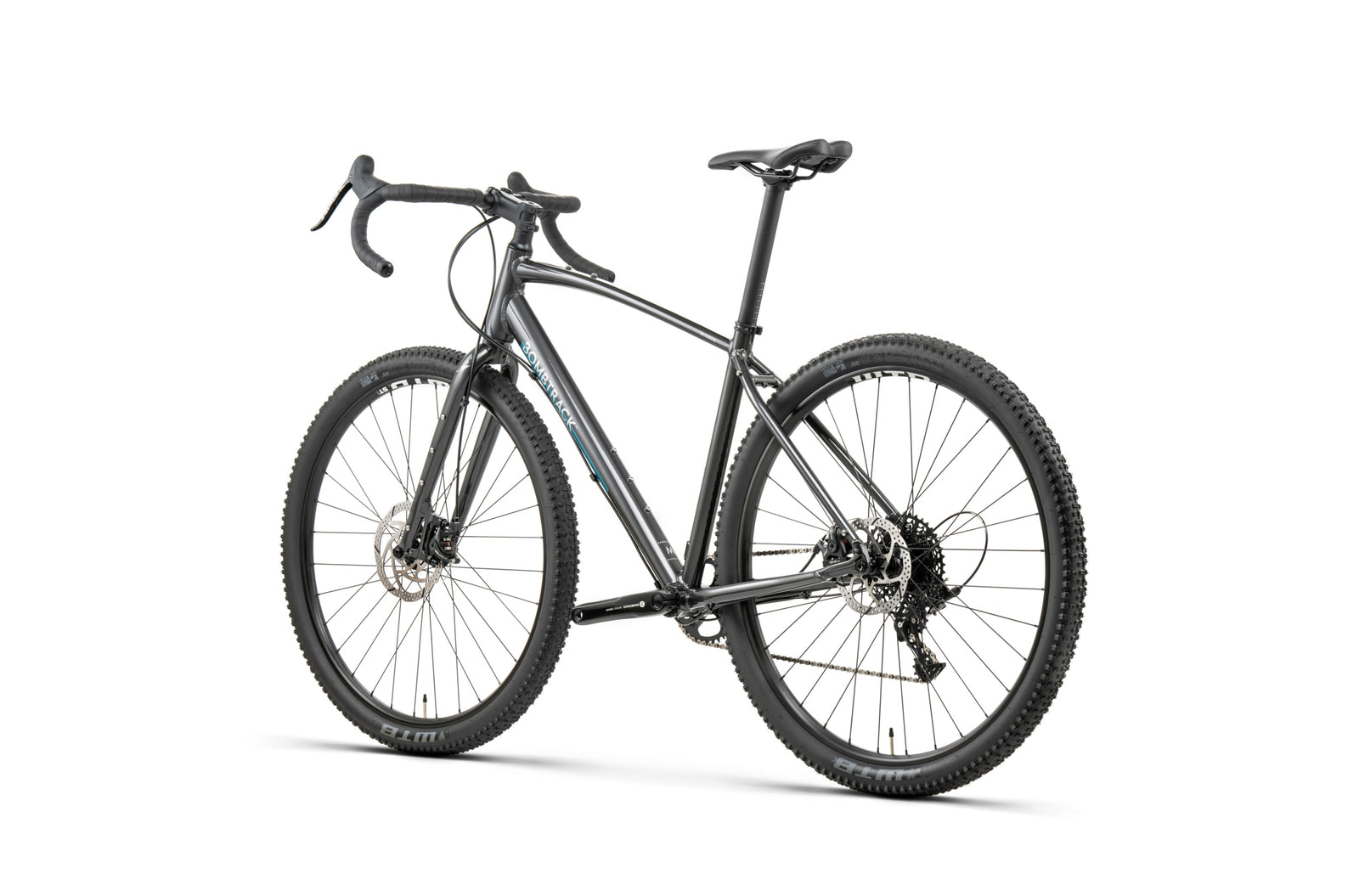

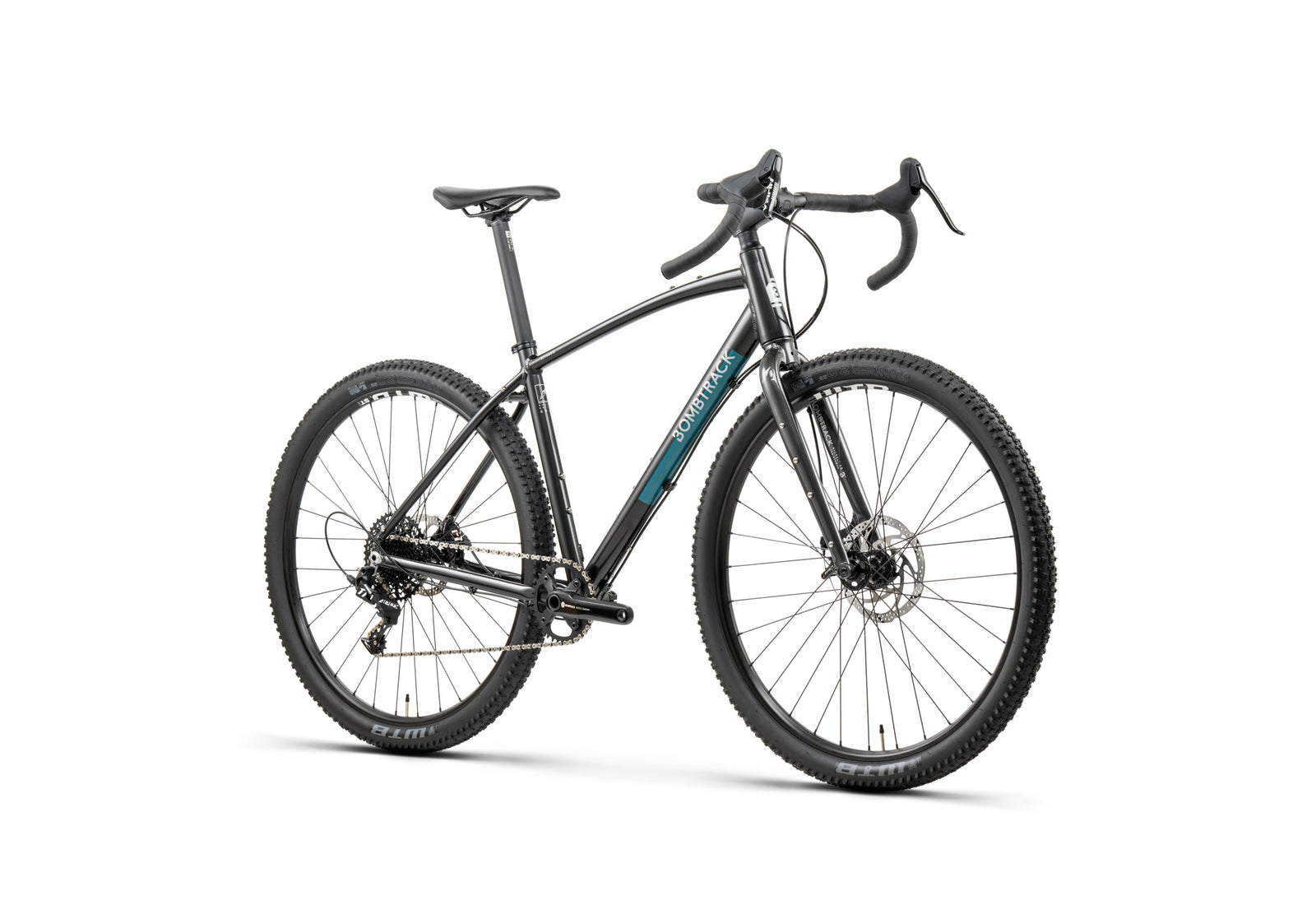

Bombtrack BEYOND AL Complete Bike / SPECIAL OFFER!
Click image to zoom
| Frame | 6061-T6 hydro-formed Aluminium, TA, rack / fender mounts, stealth dropper ready, 86.5 mm T47 BB shell |
| Fork | 6061 aluminium, TA, 1.1/2'' - 1.1/8'', fender / rack / triple cage mounts, internal hub dynamo cable routing |

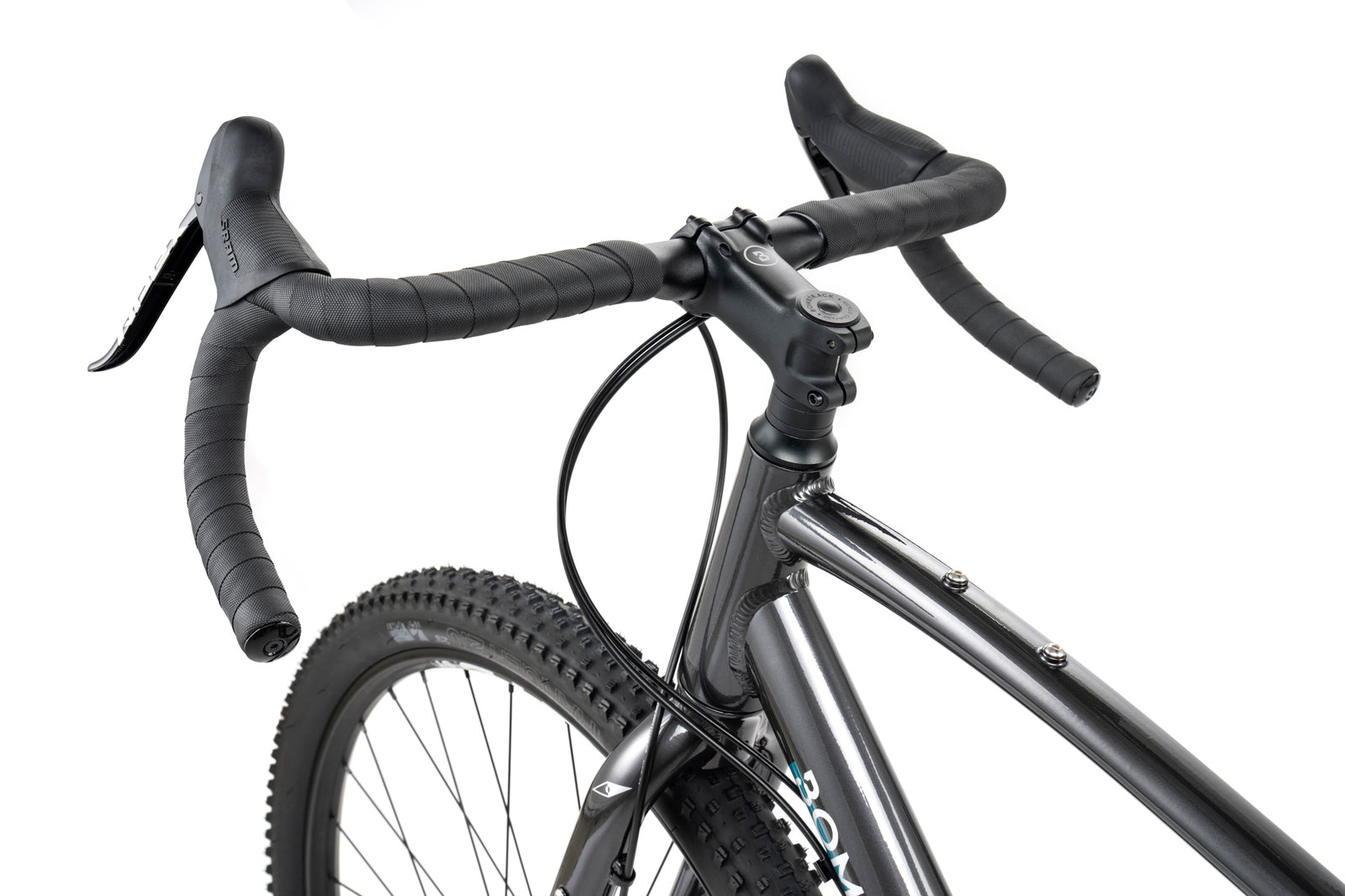

| Handlebar | BOMBTRACK TACKLE gravel bar, 31.8 mm, 25° flare |
| Grips | BOMBTRACK COMMAND bar tape |

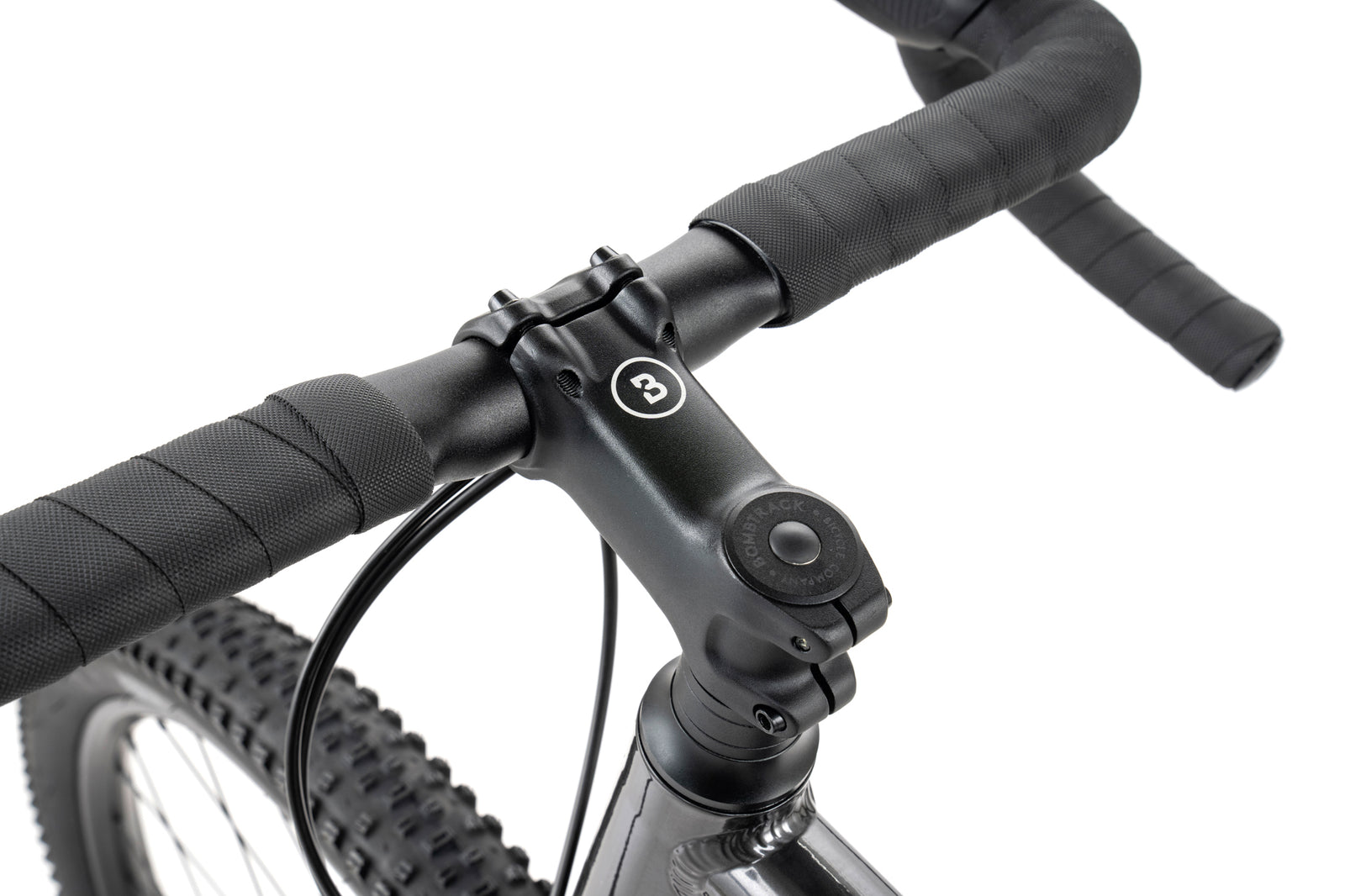

| Stem | BOMBTRACK TRAMP forged aluminium stem, 3° |
| Headset | Sealed integrated aheadset, 1.1/2'' - 1.1/8'' |

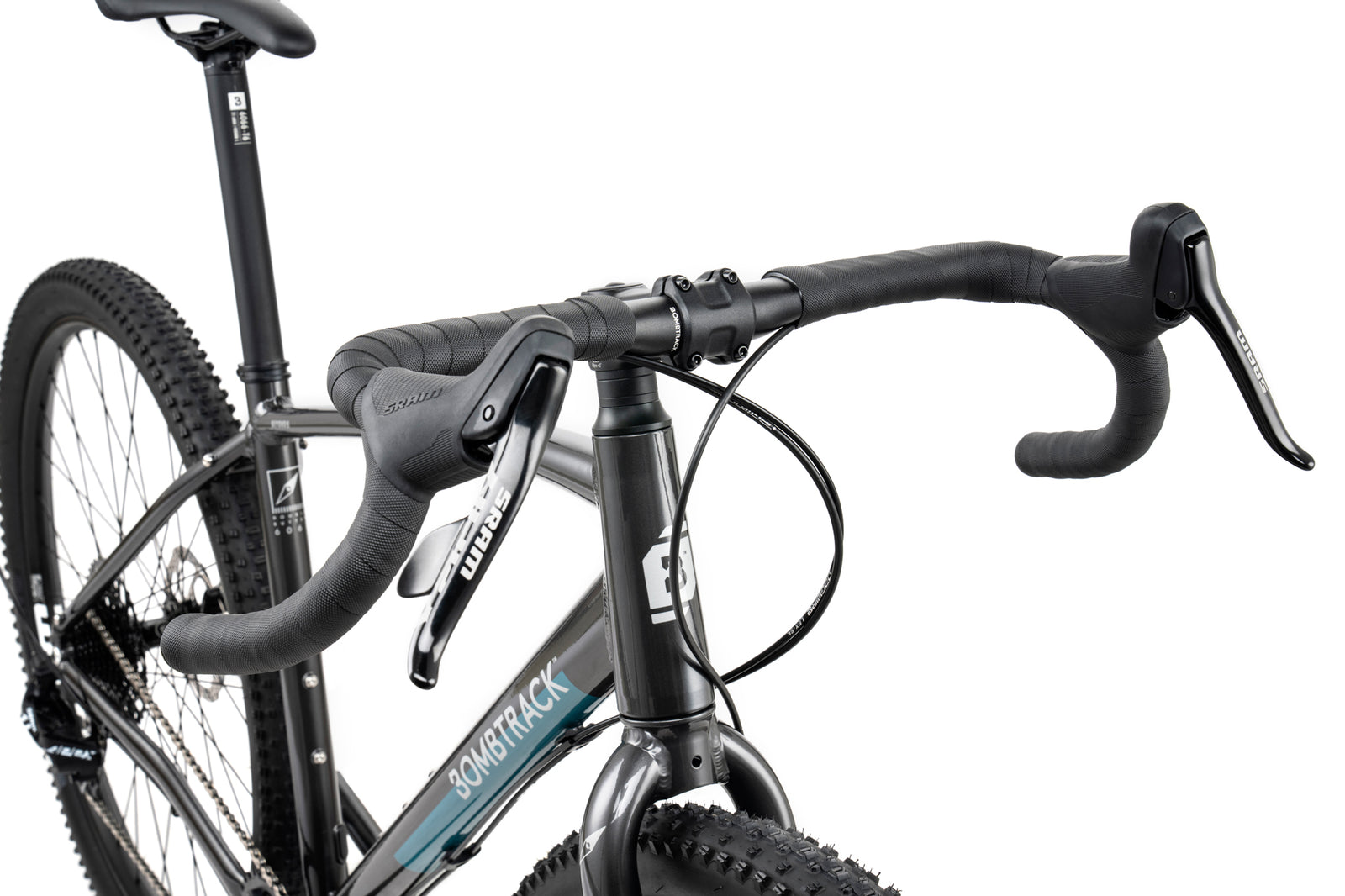

| Levers | SRAM Apex double tap mechanic |
| Shifter | SRAM Apex double tap 1 x 11 |

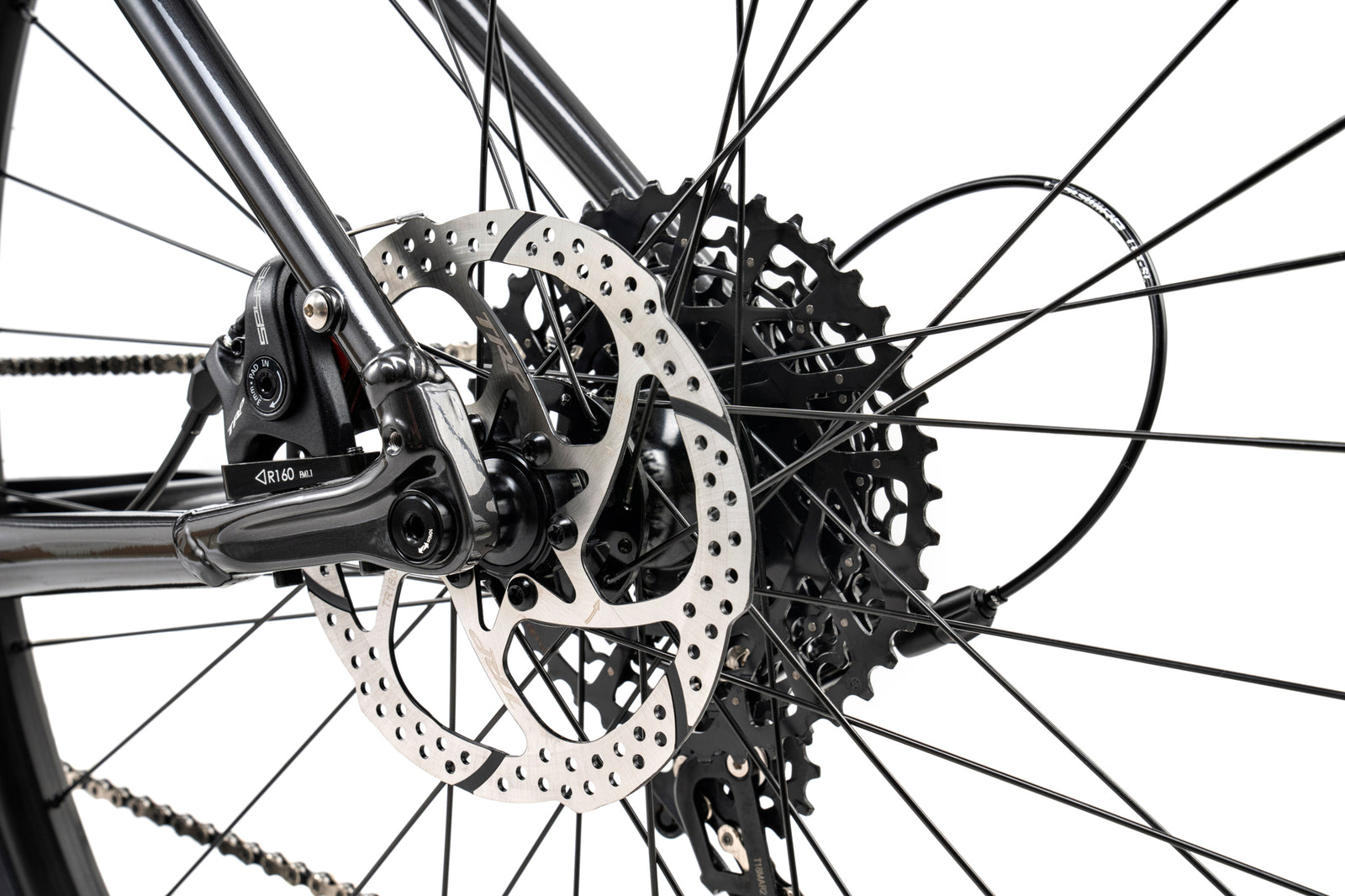

| Brakes | TRP SPYRE C mechanic disc brakes with 180 mm F / 160 mm R rotors |

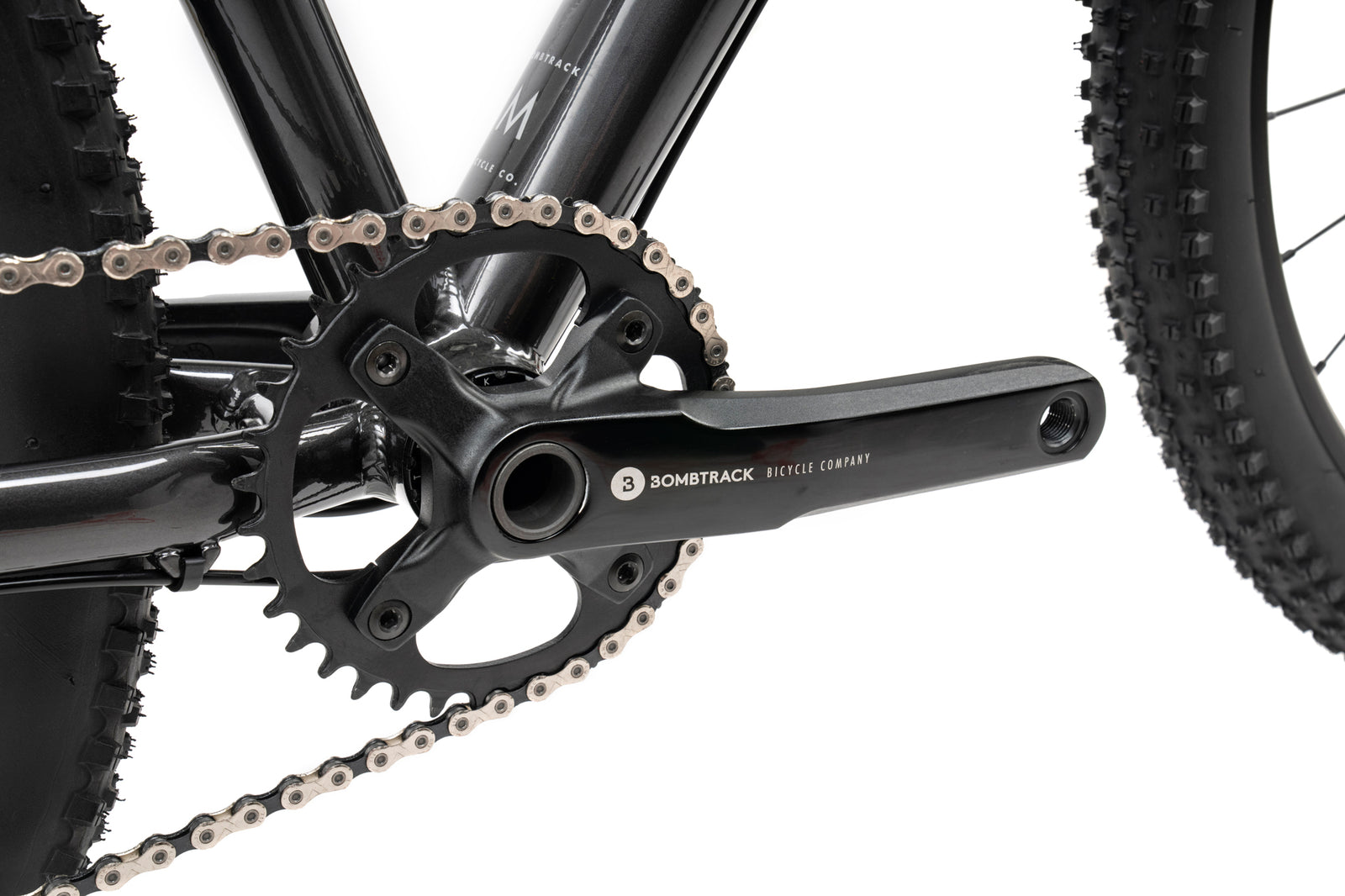

| Crankset | BOMBTRACK AMES forged aluminium crank, 24 mm spindle |
| BB | BOMBTRACK T47 internal sealed BB for 24 mm spindle |
| Pedals | - |
| Chain | KMC X11 chain, 1/2'' x 11/128'', 114L |
| Chainring | Steel, narrow-wide, 36 T |
| Cassette | SRAM PG-1130 11-speed, 11 - 42 T |
| Front derailleur | - |
| Rear derailleur | SRAM APEX 1, clutch, long cage |

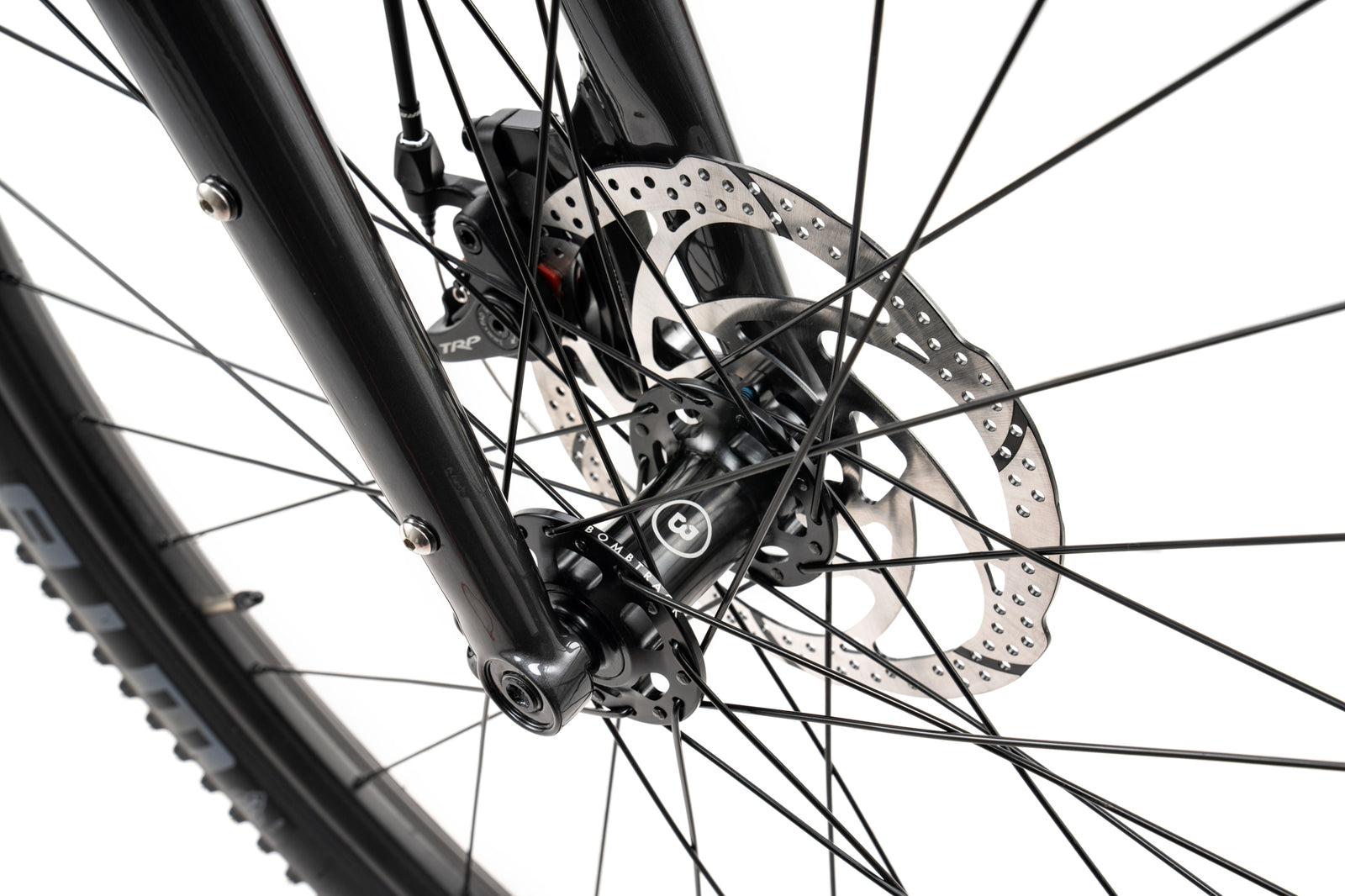

| Front hub | BOMBTRACK ARC sealed hub, 6-bolt disc |
| Rear hub | BOMBTRACK ARC sealed hub, 11-speed, 6-bolt disc |
| Through axle | 12 x 100 mm / 12 x 142 mm |
| Front rim | WTB ST i23 double wall, TCS 2.0, 32h |
| Rear rim | WTB ST i23 double wall, TCS 2.0, 32h |

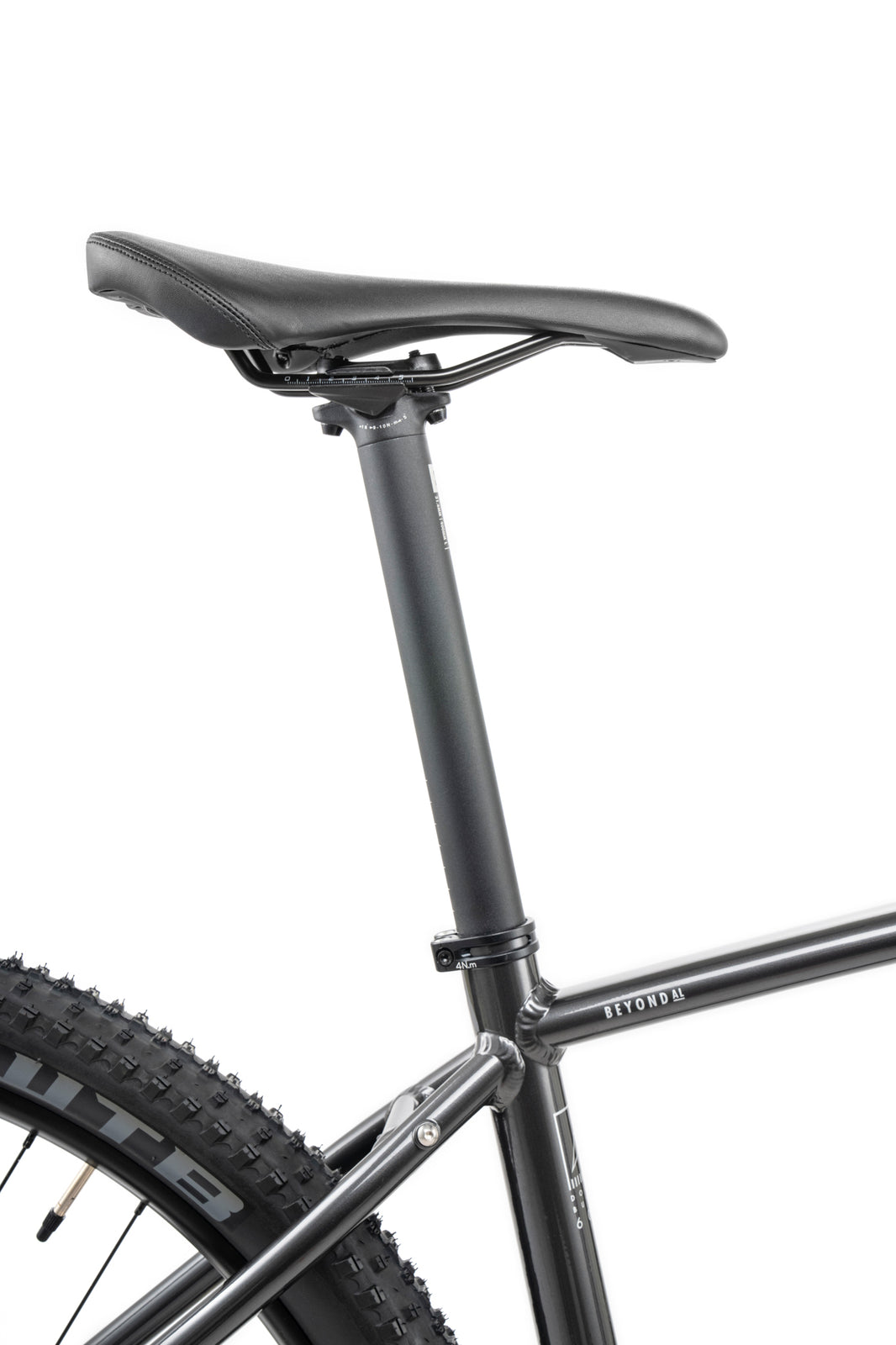

| Saddle | BOMBTRACK FUZZ |
| Seat post | SEIDO YEW aluminium seatpost, 31.8 mm x 400 mm |
| Seat clamp | BOMBTRACK PRIME 34.9 mm |
| Front tyre | WTB RANGER TCS LIGHT / FAST ROLLING S 27.5'' x 2.0'' / M - L 29'' x 2.0'', tubeless ready |
| Rear tyre | WTB RANGER TCS LIGHT / FAST ROLLING S 27.5'' x 2.0'' / M - L 29'' x 2.0'', tubeless ready |
| Fender | - |
| Rack | - |
| Kickstand | - |
| Light | - |
| Weight | 11.64 kg (size M) |
| Weight frameset | TBA g frame (size M, incl. TA, bolts, seatclamp, hanger) / TBA g fork (300 mm steerer, incl. TA) |
| Maximum rider weight | 140 kg incl. luggage |
| ASTM riding condition | 2 |
Bombtrack BEYOND AL Complete Bike / SPECIAL OFFER!
Product code:
A100014146
Out of stock
-
Description
Frame 6061-T6 hydro-formed Aluminium, TA, rack / fender mounts, stealth dropper ready, 86.5 mm T47 BB shell Fork 6061 aluminium, TA, 1.1/2'' - 1.1/8'', fender / rack / triple cage mounts, internal hub dynamo cable routing Handlebar BOMBTRACK TACKLE gravel bar, 31.8 mm, 25° flare Grips BOMBTRACK COMMAND bar tape Stem BOMBTRACK TRAMP forged aluminium stem, 3° Headset Sealed integrated aheadset, 1.1/2'' - 1.1/8'' Levers SRAM Apex double tap mechanic Shifter SRAM Apex double tap 1 x 11 Brakes TRP SPYRE C mechanic disc brakes with 180 mm F / 160 mm R rotors Crankset BOMBTRACK AMES forged aluminium crank, 24 mm spindle BB BOMBTRACK T47 internal sealed BB for 24 mm spindle Pedals - Chain KMC X11 chain, 1/2'' x 11/128'', 114L Chainring Steel, narrow-wide, 36 T Cassette SRAM PG-1130 11-speed, 11 - 42 T Front derailleur - Rear derailleur SRAM APEX 1, clutch, long cage Front hub BOMBTRACK ARC sealed hub, 6-bolt disc Rear hub BOMBTRACK ARC sealed hub, 11-speed, 6-bolt disc Through axle 12 x 100 mm / 12 x 142 mm Front rim WTB ST i23 double wall, TCS 2.0, 32h Rear rim WTB ST i23 double wall, TCS 2.0, 32h Saddle BOMBTRACK FUZZ Seat post SEIDO YEW aluminium seatpost, 31.8 mm x 400 mm Seat clamp BOMBTRACK PRIME 34.9 mm Front tyre WTB RANGER TCS LIGHT / FAST ROLLING S 27.5'' x 2.0'' / M - L 29'' x 2.0'', tubeless ready Rear tyre WTB RANGER TCS LIGHT / FAST ROLLING S 27.5'' x 2.0'' / M - L 29'' x 2.0'', tubeless ready Fender - Rack - Kickstand - Light - Weight 11.64 kg (size M) Weight frameset TBA g frame (size M, incl. TA, bolts, seatclamp, hanger) / TBA g fork (300 mm steerer, incl. TA) Maximum rider weight 140 kg incl. luggage ASTM riding condition 2
