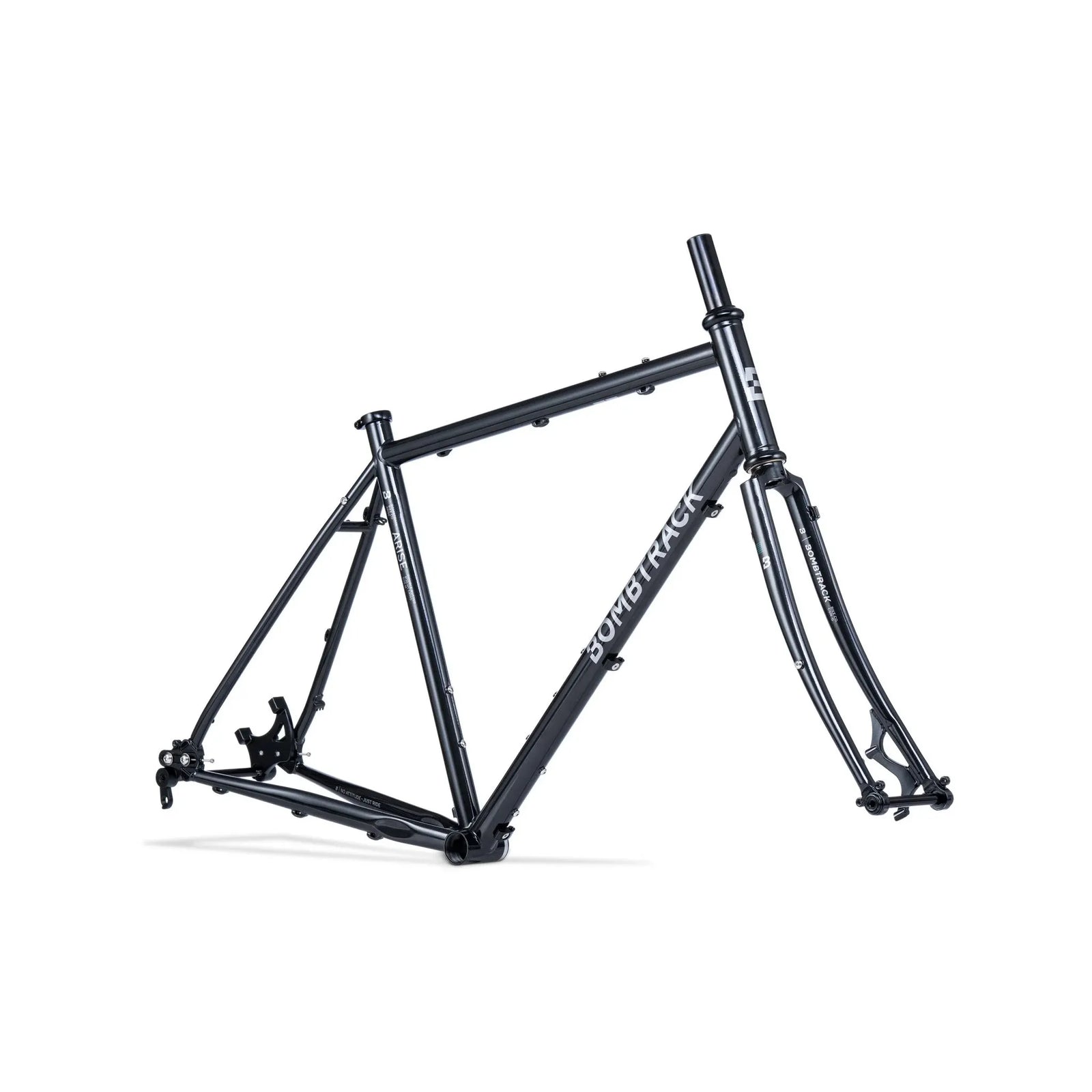

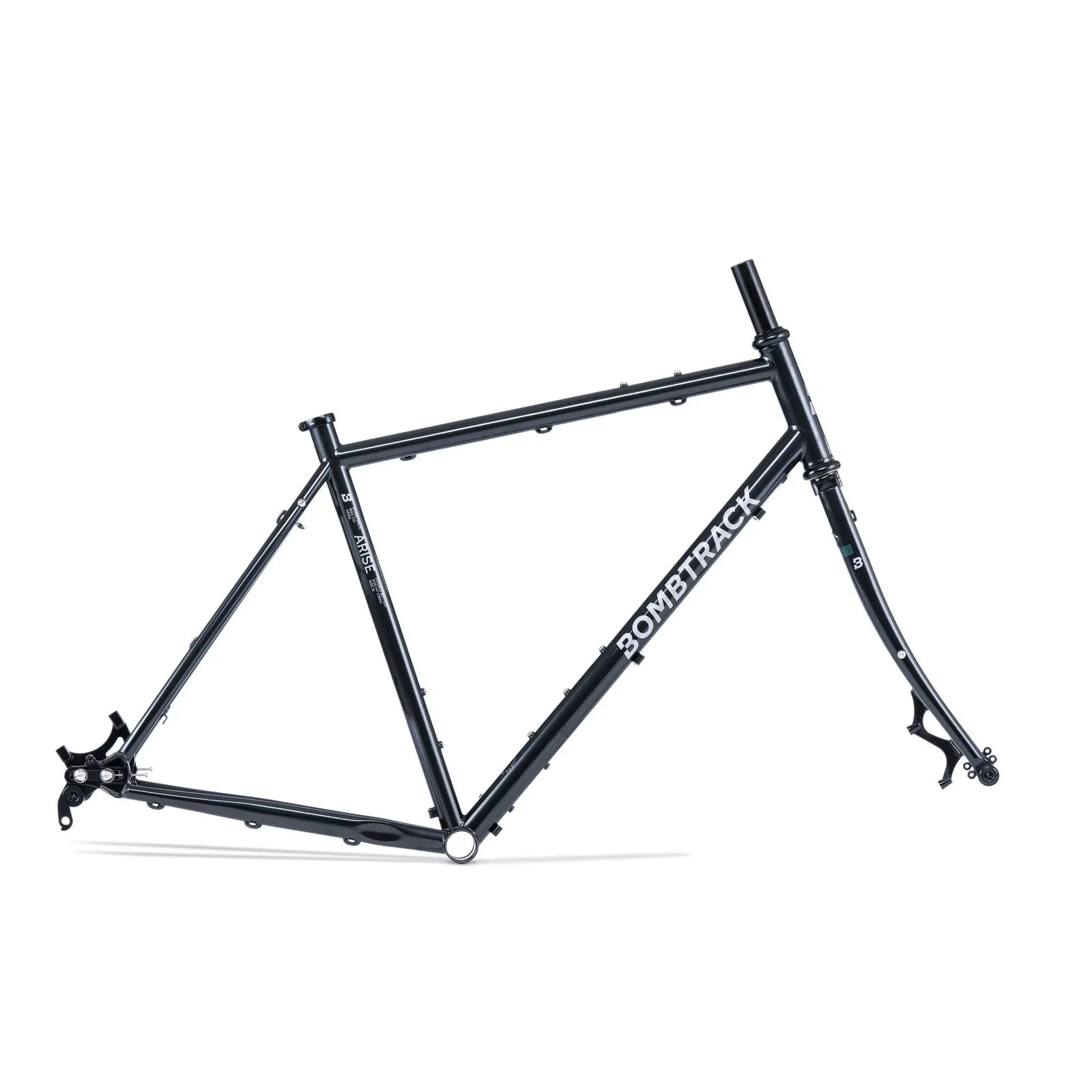

The Bombtrack Arise frameset provides a solid and versatile foundation for gravel, touring, and commuting builds.
Constructed from 4130 double-butted CrMo steel with a heat-treated front triangle, it offers an ideal balance of strength, comfort, and long-term durability.

With TA sliding dropouts, rack and fender mounts, and internal hub dynamo cable routing, the Arise is built to handle loaded adventures and daily use alike.
The included CrMo fork supports full lighting setups and front-rack compatibility, making it an excellent all-round choice for both custom and OEM builds.

Technical Specifications

• Frame Material: 4130 double-butted CrMo steel, heat-treated front triangle

• Dropouts: TA sliding dropouts

• Frame Mounts: Rack & fender mounts

• Bottom Bracket: BSA, 68 mm shell width

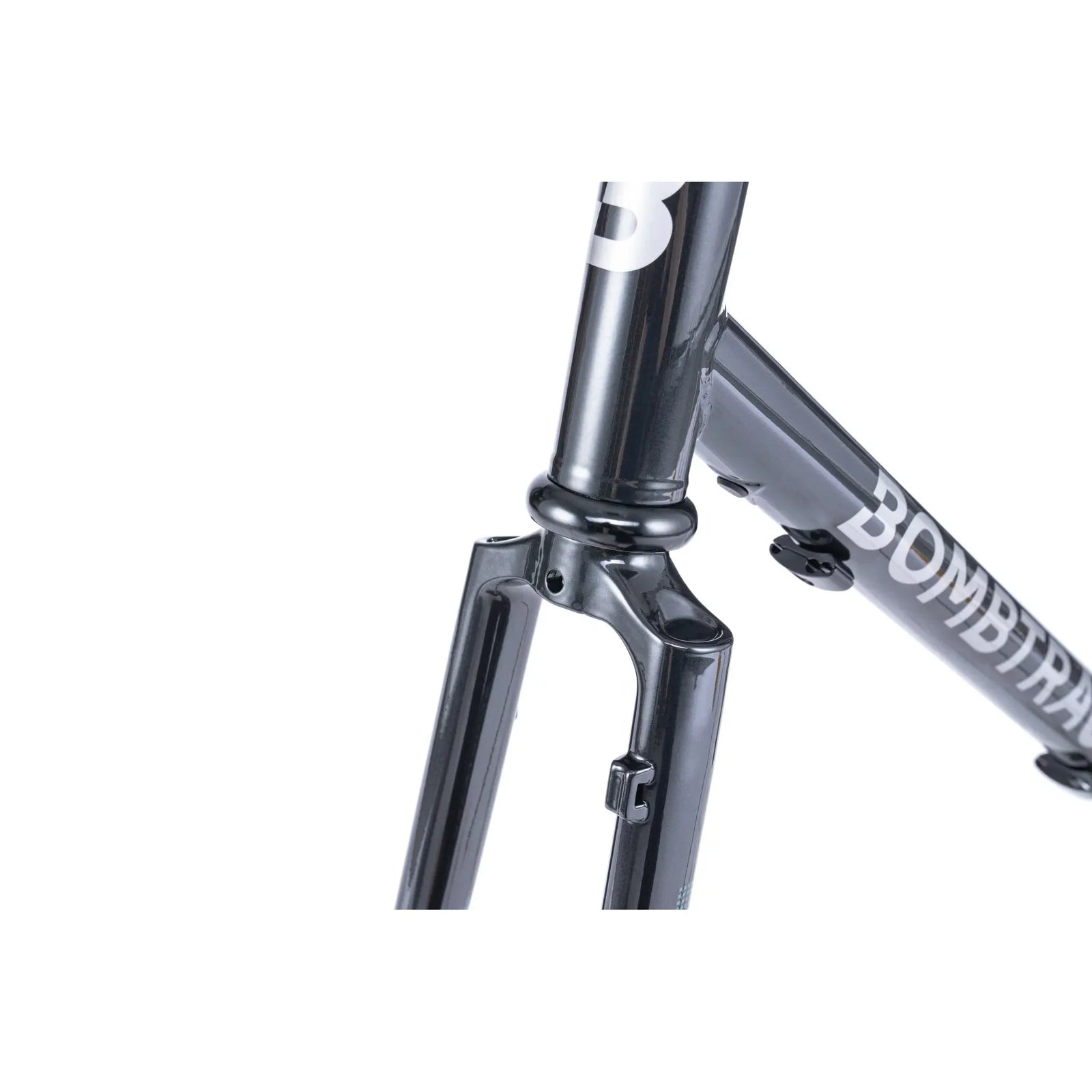

• Fork: 4130 CrMo, TA, rack/fender mounts, internal hub dynamo cable routing

• Headset: Neco H282 sealed external aheadset, 1 1/8"

• Through Axles: 12×100 mm (front) / 12×142 mm (rear)

• Seat Clamp: Bombtrack Prime 29.8 mm

• Rack: Not included (mounts provided)

• Weight (frameset): 2480 g (frame, size M incl. TA & hanger) / 1370 g (fork, incl. TA, 300 mm steerer)

• Maximum Rider Weight: 120 kg (incl. luggage)

• ASTM Classification: Category 2 (Gravel / Touring / Commuting)
